Split Core Clip on Current Transformer Sensor 80A/26.6mA for Energy Monitoring

Prod Model:	XH-SCT-T10A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Current Transformer

Product Description

Split Core Current Transformer 50AMP Features:

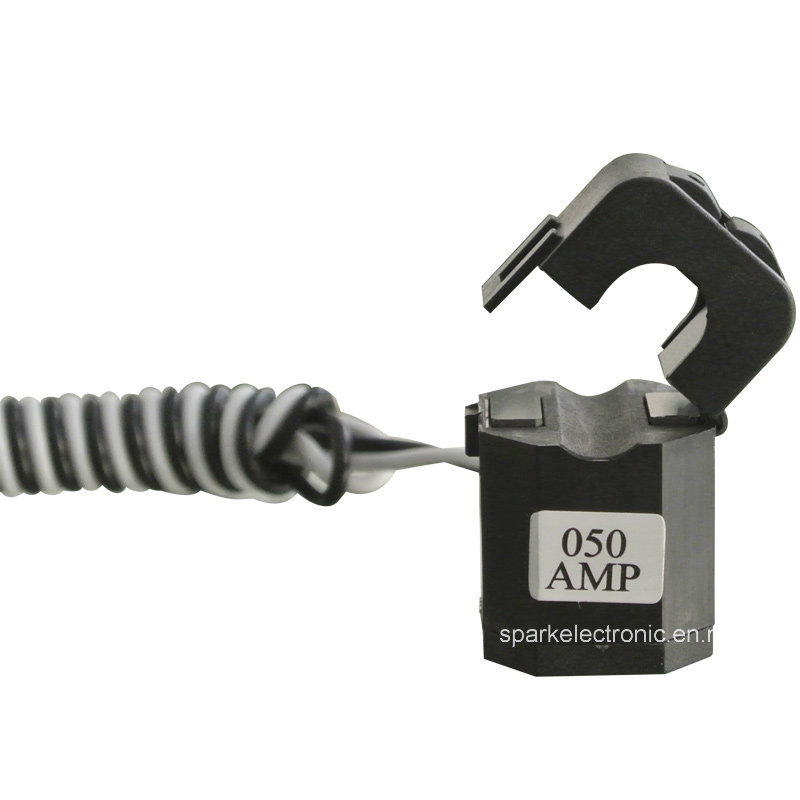

Split-Core AC Current Sensor XH- SCT-T10A
φ 10mm Opening With 10 To 80 AMP Rating
Description:
Jiangyin Spark XH-SCT-T10 Series split-core current senses AC current from 10 to 80 AMPS passing through the center conductor. Split core CTs are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer, easy and portable current measurement.
Features:
Maximum continuous primary current 80 A AC
Output: 26.6mA
Current Ratio: 3000: 1
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Accuracy: ± 1% from 5% to 120% of rated current
Operating Temperature: -15 Cto 60 C.
Insulation Voltage: 600VAC
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized

Applications:
Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features
Load Center
Three Phase Balance Control
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC
