Split-Core CT, 400A, 400A: 26.6mA, 32mm (1.26") Hole Diameter, Sct-032-400

Price:	US $ 1/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	400A
High Saturation Magnetic Induction:	Low Core Loss
Application:	Lighting
Type:	Current Transformer
Phase:	Single and Three

Product Description

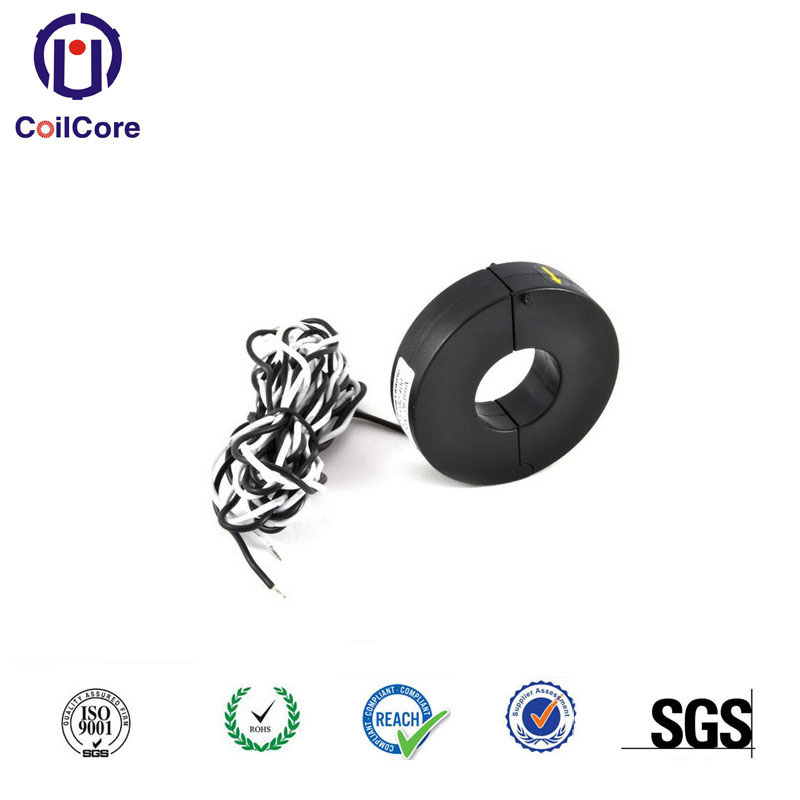

Split-core CT

CT Type: Split-Core

Amperage: 400 amps

Inside Diameter: 32 mm or 1.26 inches

Outside Diameter: 79 mm or 3.11 inches

Thickness: 20 mm or 0.79 inches

Model: SCT-032-400

Wire Gauge: For use on cable that is 700 MCM or smaller. It is best to measure your wire diameter in millimeters, rather than use the MCM wire size. This is because the insulation thickness varies materially from one wire manufacturer to the next. It is much better to oversize your CT than to undersize it.

Selected with accuracy and ease of installation in mind.

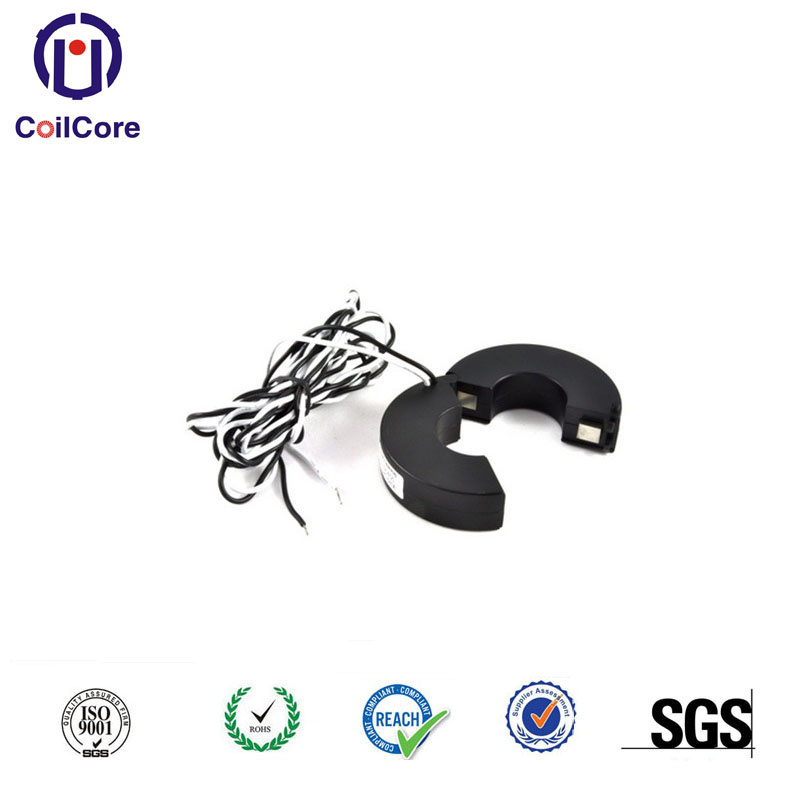

Our Split Core (open-able) CTs can be a savings overall in the labor cost savings. Simply clip these around the wires being read. Secure them in place with a zip tie.

Our EKM Omnimeter can be set internally to be used with 400 amp CTs. If you do not plan to communicate with your Omnimeter, please be sure we set the CT ration to 400 amps for you.

Use 1 CT for 120 volt single phase North American, or 230 volt 2-wire foreign systems
Use 2 CTs for 120/240 volt single phase systems
Use 2 CTs for 3-phase 3-wire systems (no neutral)
Use 3 CTs for 3-phase 4-wire systems

Accuracy Class: 0.1 --- 99.9% accurate, this is a revenue grade precision component.

These CTs come with wire leads that are 6 feet in length.

Model	SCT023R
Current Ratio	50A/25mA	100A/50mA	200A/100mA
Primary Current (A)	50A	100A	200A
Max. Current (A)	60A	120A	240A
Output	25mA	50mA	100mA
Load Resistance (Ω)	50Ω	50Ω	50Ω
Turns Ration	2000:1	2000:1	2000:1
Class	0.5/1.0
Protection Level	7.5V0-P
Insuliation Category	CATIII
Operating Condition	-20ºC ~ +50ºC, ≤85%RH, No condensation, IN-house & Any direction installable
Storage Condition	-30ºC ~ +50ºC, ≤85%RH, No condensation
