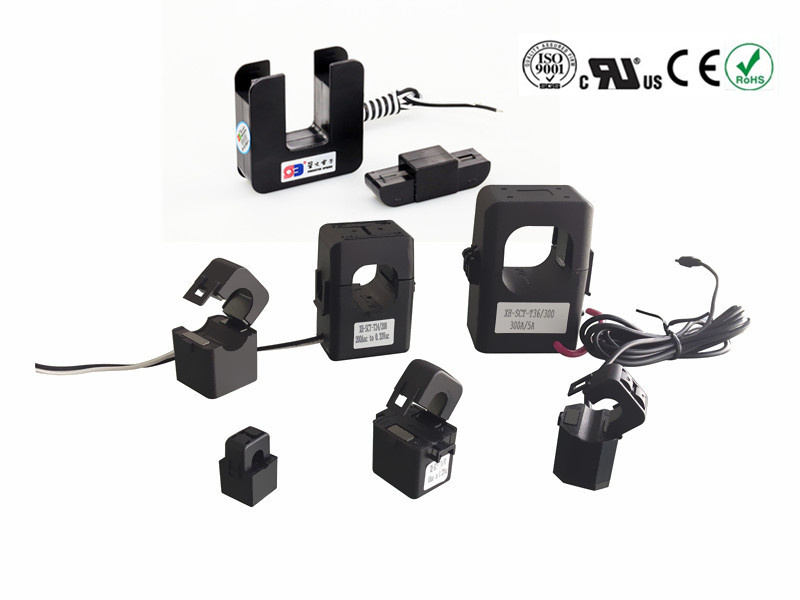

Split Core CT Current Sensor (XH-SCT-T24)

Name: Split Core CT Current Sensor (XH-SCT-T24)
Brand: all-electronics-online.com
SKU: 718857245
Availability: InStock
Rating: 5 (129 reviews)

Price:	US $ 8.9-10.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-T24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Split Core Cts Xh-Sct-T24
Inner Hole Size:	24mm
Certificates:	ETL,CE,RoHS,ISO9001
Application:	Lighting
Phase:	Single
Type:	Split Core Current Transformer

Product Description

Description:

Jiangyin Spark XH-SCT-T24 Series split-core current senses AC current from 100 to 300 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer, easy and portable current measurement.

Specifications:
Maximum continuous primary current 300 A AC
Current Ratio: 3000: 1
Output: 0.333 Volt at rated current
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15Cto 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized
Applications:
Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features
Load Center
Three Phase Balance Control
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC

Model	Input(A)	Max currnet(A)	Turns(T)	Burden(Ω)	Output
SCT0024-200/66.6mA	10A-200A	200	3000	100	mA/0.333VAC/0-5 VAC

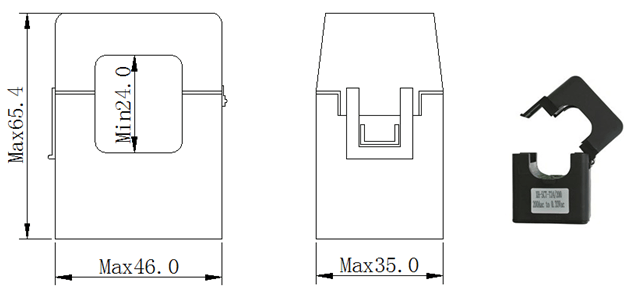

Dimensions

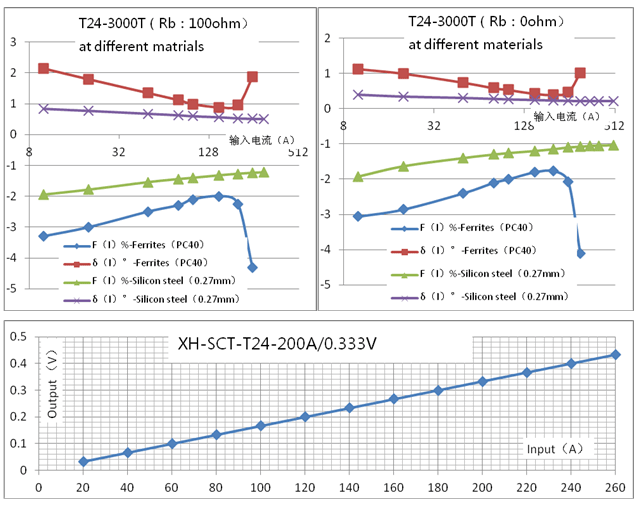

Performance Curve

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.
