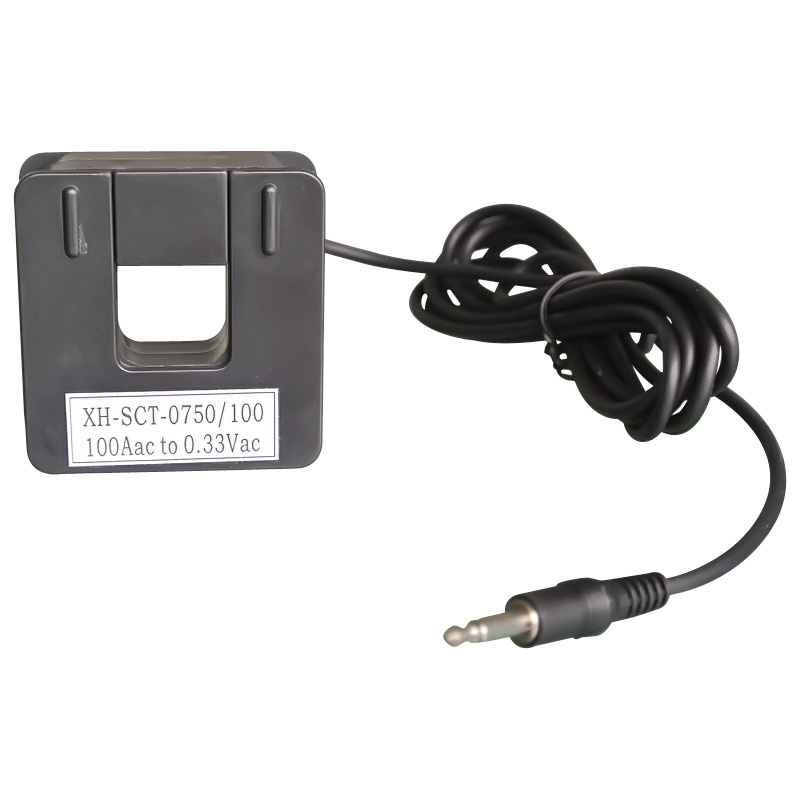

Split Core Current Transducer with Plug Jack

Name: Split Core Current Transducer with Plug Jack
Brand: all-electronics-online.com
SKU: 710401425
Availability: InStock
Rating: 4.7 (51 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-0750
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy:	1.0% Class
Leads Wire:	3.5*1.3 Plug
Certificates:	UL ,CE ,RoHS
Customers Design:	Yes
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

Split core Clamp on Current Sensor:
Features
Low cost
Split core design; Safer, easier installation, portable.

Specifications
Rated Current 5A to 3000A loads.
Rated output: 0.333VAC
Accuracy: ± 1% from 5% to 120% of rated current
Phase Angle: Less than 2 degrees at 50% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Operating Temperature: -15Cto 60C.
Frequency Range: 50-400Hz
Leads: 4Foot(105cm), UL 1015, Twisted Pair,
0.34 mm2(22AWG)
UL&CE recognized. RoHS Compliant
Output and leads can be customized

Application:
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc. Compatible with HVAC temperature control, power management, building automation systems.

Model	I. D.	Rated Amps	Output	Accuracy	SIZE( mm )
Model	I. D.	Rated Amps	Output	Accuracy	A	B	C	D	E
XH-SCT-0750	0.75" (19.1mm)	5, 15, 30, 50, 70, 100, 150, 200	0.333V	1.0	51.6	54.1	16.6	19.1	18
XH-SCT-1250	1.25" (31.8mm)	70, 100, 150, 200, 250, 300, 400, 600		1.0	82.3	85.3	26.4	32	32.3
XH-SCT-2000	2.00" (50.8mm)	400, 600, 800, 1000, 1200, 1500		1.0	120	125	29.6	52.5	52
XH-SCT-3000	3.00" x 5.00" (76.2mm x127mm)	1000, 1200, 1500, 2000.3000		1.0	145	199	30.5	76	130
