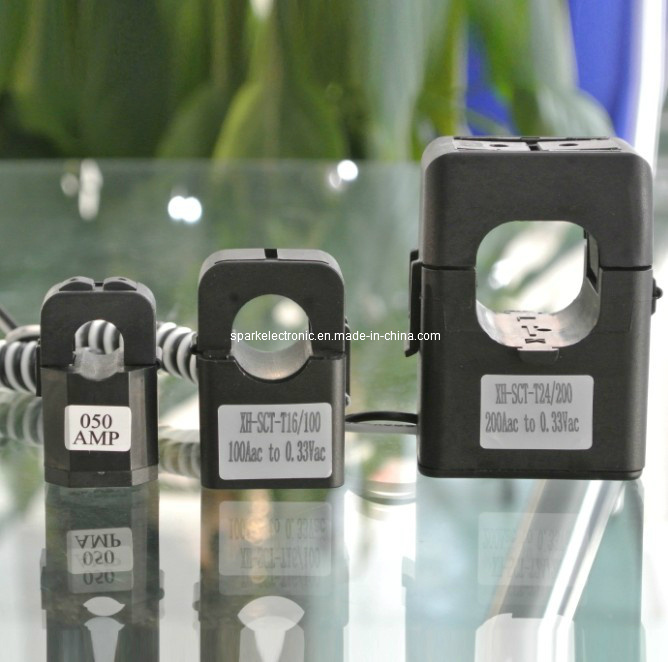

Split Core Current Transformer 100A/0.33V 200A/0.33V

Name: Split Core Current Transformer 100A/0.33V 200A/0.33V
Brand: all-electronics-online.com
SKU: 729781625
Availability: InStock
Rating: 4.5 (117 reviews)

Price:	US $ 3-8.3/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-0750
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

Split core current transformer/current sensor--UL,CE approved

1.Rated primary current: 100 to 5, 000A AC
2.Rated secondary 0.333V
3.Rated load: 1, 2.5, 5.0, 10 and 30VA
4.Accuracy: 0.5, 1.0 and 3.0 class
5.Rated short-time thermal current (Ith): 20In
6.Rated dynamic current (Idyn): 2.5Ith
7.Highest voltage for equipment (Um): 720V AC RMS
8.Rated power-frequency withstand voltage: 3, 000V AC RMS
9.Frequency range: 50/60Hz
10.Operating temperature: -15 to 60° C
11.Split core design, safer, easy to install and portable
12.Accessories: Supplied with feet for base mounting if required
Split core current transformer/current sensor applications:
1.Current, power, energy and monitoring devices
2.Relay protection devices
3.Power factor correction devices
4.Available in 5 standard sizes
5.Standard: IEC 60044-1
6.RoHS Directive-compliant

Model	I.D.	Rated Amps	Output	Accuracy	SIZE ( mm )
Model	I.D.	Rated Amps	Output	Accuracy	A	B	C	D	E
SCT-0750	0.75" (19.1mm)	5, 15, 30, 50, 70, 100, 150, 200	0.333V	1.0	51.6	54.1	16.6	19.1	18
SCT-1250	1.25" (31.8mm)	70, 100, 150, 200, 250, 300, 400, 600		1.0	82.3	85.3	26.4	32	32.3
SCT-2000	2.00" (50.8mm)	400, 600, 800, 1000, 1200		1.0	120	125	29.6	52.5	52
SCT-3000	3.00" x 5.00" (76.2mm x127mm)	1000, 1200, 1500,2000.3000		1.0	145	199	30.5	76	130

Model	I.D.	Ratio	Rated Amps	Accuracy
SCT-T06	6mm	1000:1	1, 5,10, 15, 20,	0.5 , 1.0
SCT-T10	10mm	3000:1	5, 15, 30, 50, 75,80	0.5 , 1.0
SCT-T16	16mm	3000:1	50, 70, 100, 120	0.5 , 1.0
SCT-T24	24mm	3000:1	100, 150, 200, 300	0.5 , 1.0
SCT-T36	36mm	3000:1	300, 400, 500, 600	0.5 , 1.0

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
