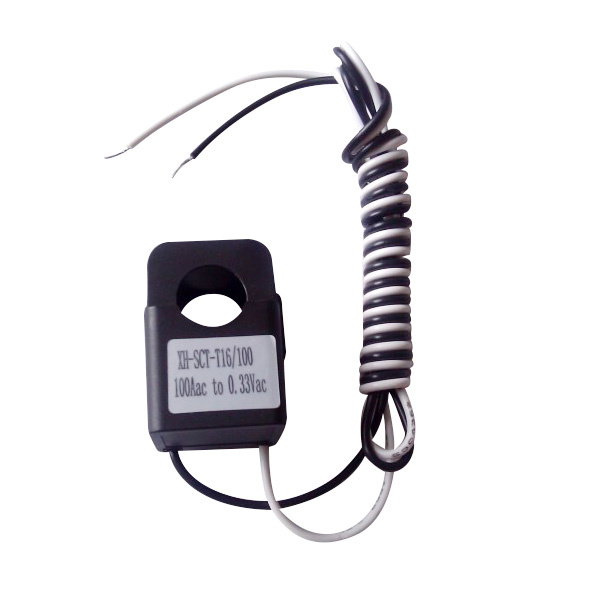

Split Core Current Transformer 100A/0.33V (XH-SCT-T16/100)

Name: Split Core Current Transformer 100A/0.33V (XH-SCT-T16/100)
Brand: all-electronics-online.com
SKU: 713980485
Availability: InStock
Rating: 4.7 (68 reviews)

Price:	US $ 3.5-4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-T16/100
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Split Core Cts (Xh-Sct-T16)
Inner Hole Size:	16mm Hole Size
Certificates:	CE,ETL.RoHS,ISO
Application:	Lighting
Phase:	Single
Type:	Split Core Current Transformer

Product Description

Split core current transformer 100A/0.33V

Features:
Small size, low cost
High secondary turns
Secure locking hinge
Specifications:
Rated Primary Current: 100A
Current Ratio: 3000: 1
Output: 0.333 Volt at rated current
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG
CE recognized, and RoHS compliant
Output and leads can be customized

Applications:
Portable instruments
Sub-metering
Monitor motor loads

Model	Input(A)	Max currnet(A)	Output
XH-SCT-T16	0.2-100AAC	120AAC	mA/0.333VAC /0-3 VAC

Dimensions

Performance Curve
