Split Core Current Transformer 19 Mm Hole Size

Split Core Current Transformer 19 Mm Hole Size
Price: US $ 8-35/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: SCT0750 1250 2000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Black
Application: Electronic
Type: Current Transformer
Phase: Single

Product Description


Product Details

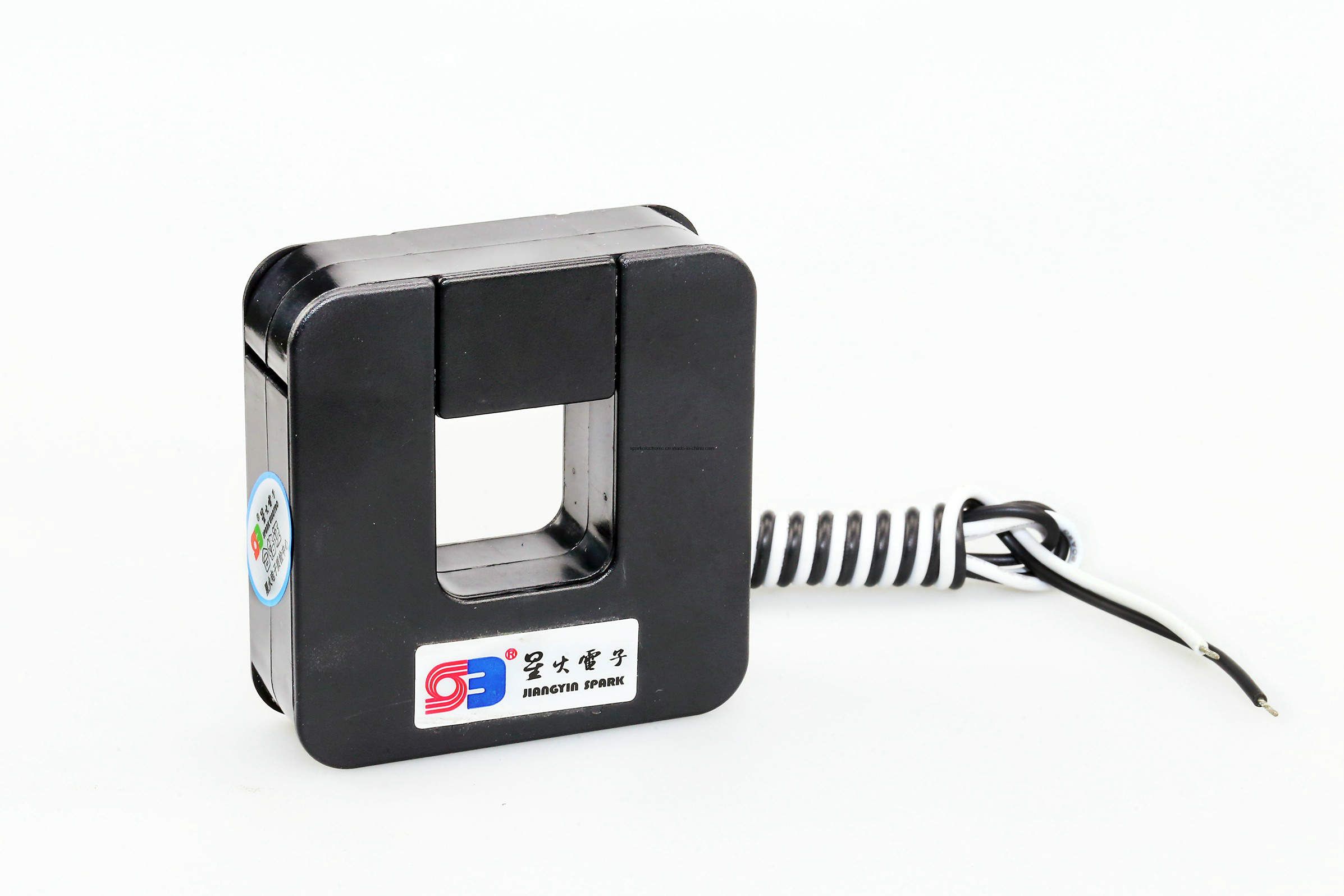

SCT-0750 split core current transformer

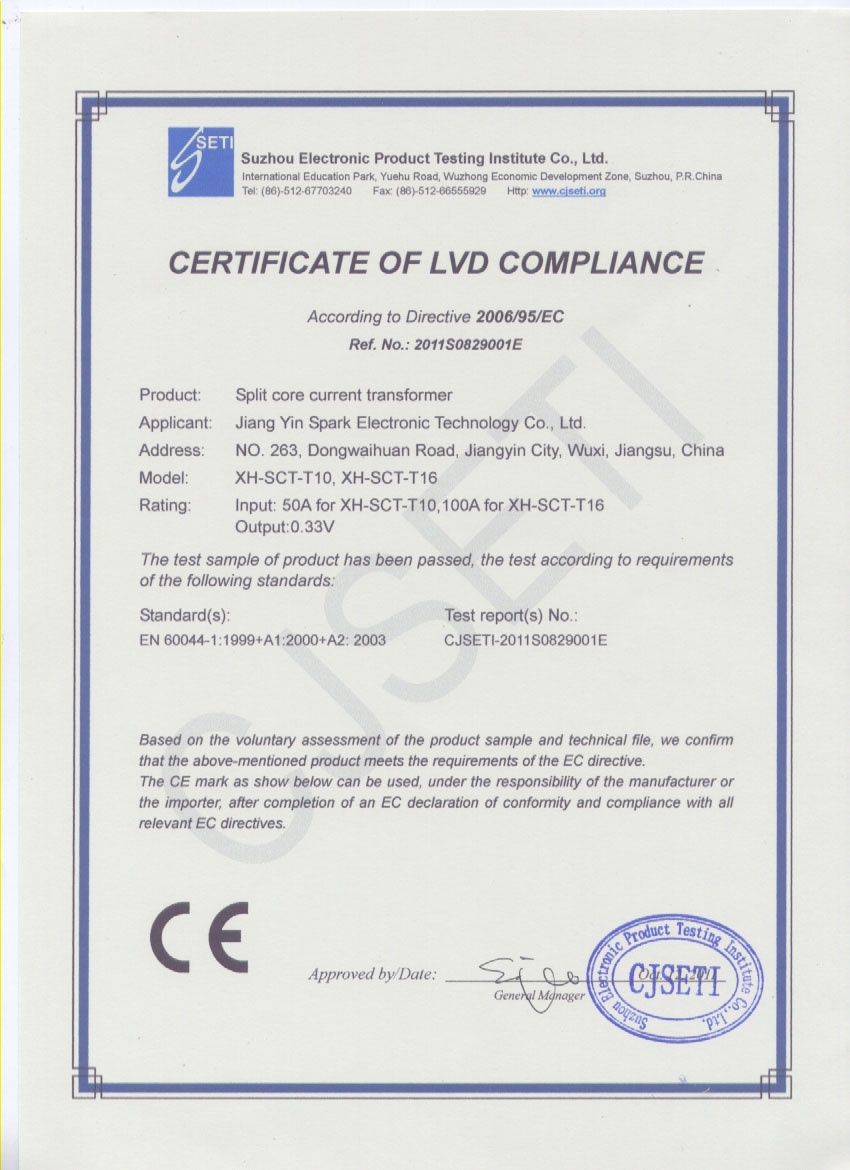

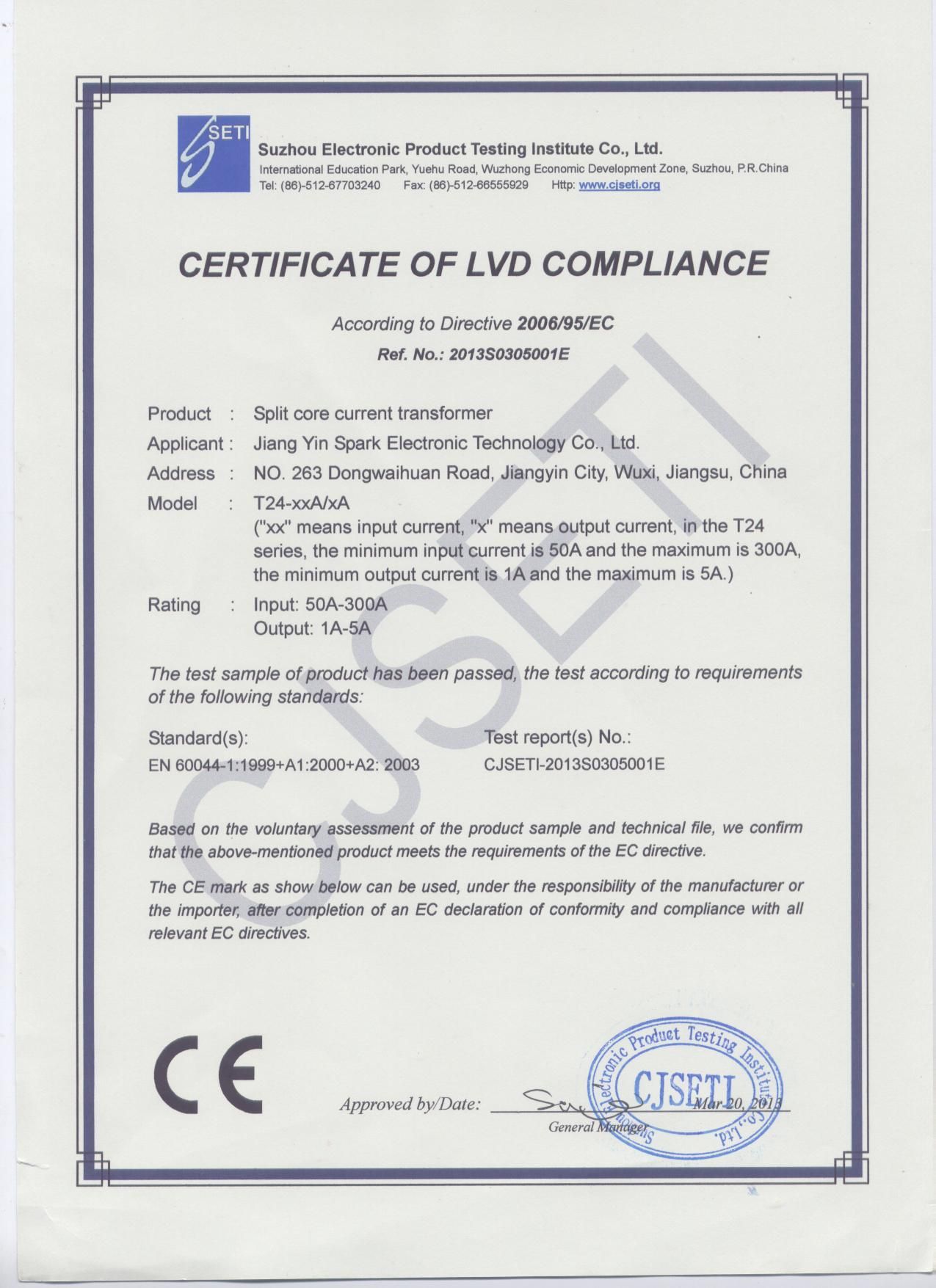

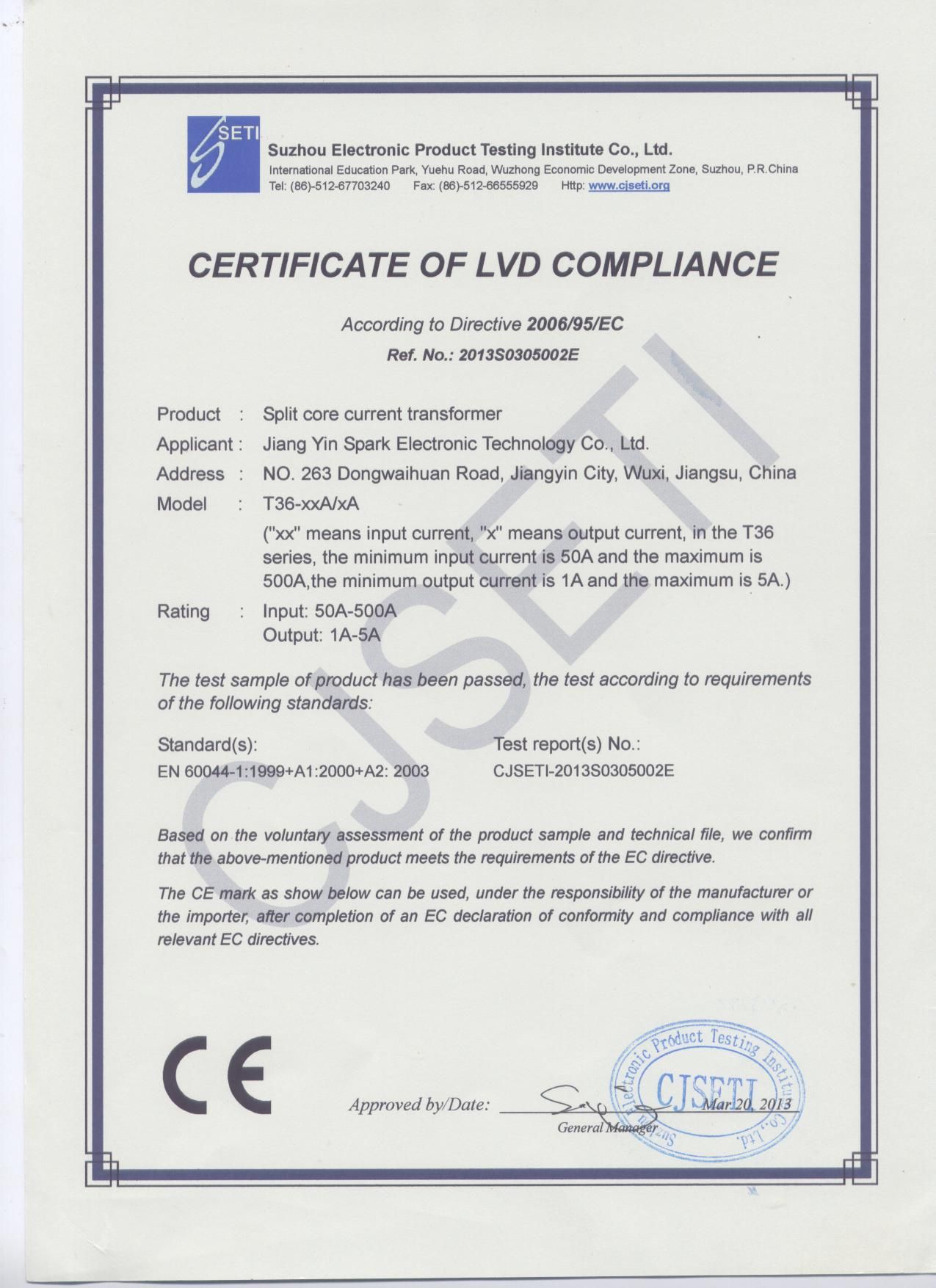

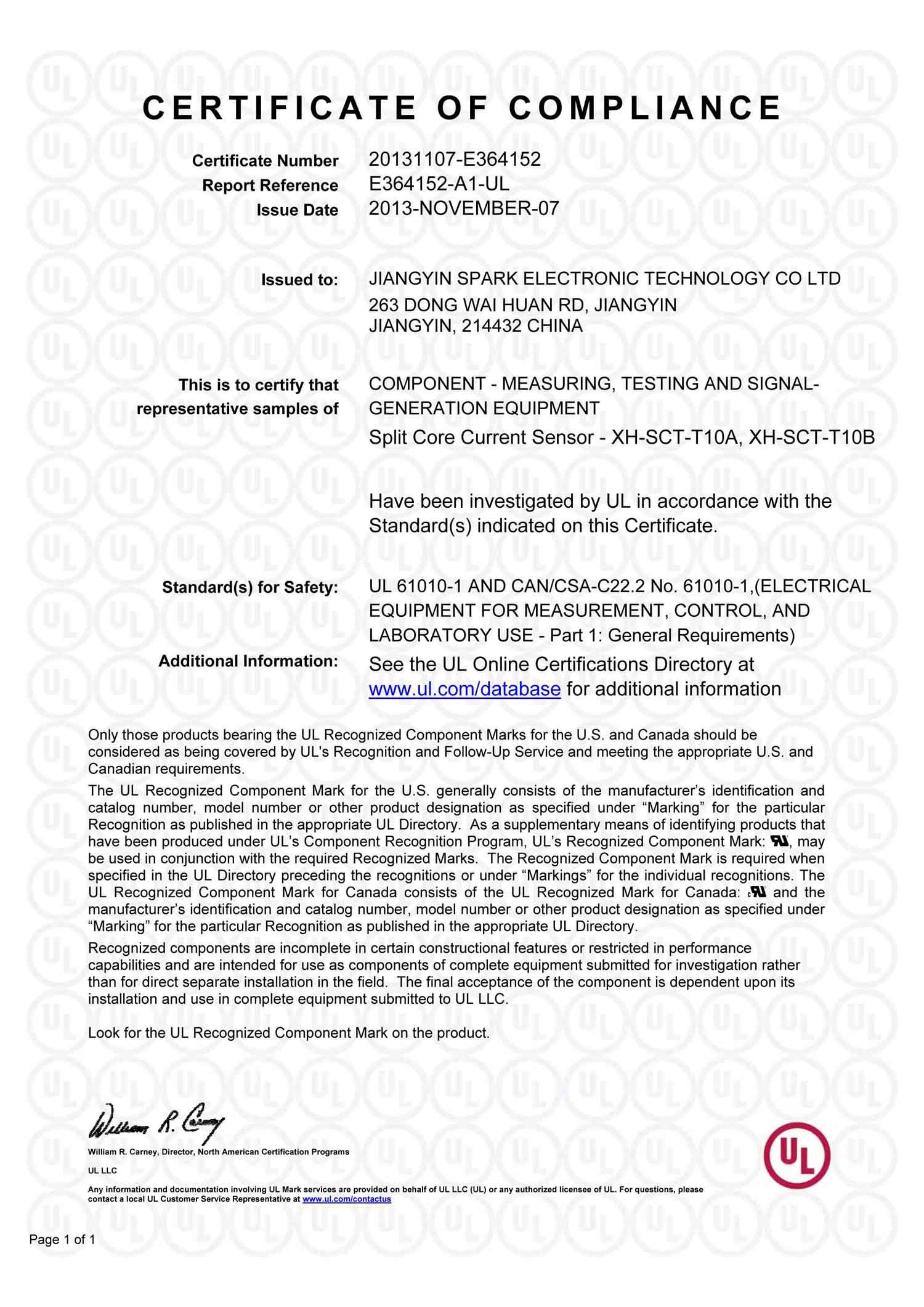

Certificate: UL CE ETL

Key Specification
Specifications:
Case materials: nylon, resin and UL flame
Rated primary current: 50 to 3000A AC
Rated secondary voltage: 0.333 to 3.53V AC
Accuracy class: 0.5, 1.0 and 3.0
Rated security coefficient: FS<5
Retardant rating: 94-V0
Highest voltage for equipment Um (rms): 720V AC
Rated power-frequency withstand voltage (rms): 3,000V AC
Frequency range: 50/60Hz
Operating temperature: -15 to 60°C
Leads: 0.8ft (240mm), UL 1015, twisted pair, 0.34mm2 (22AWG)
RoHS Directive-compliant
Applications:
Measures AC current flow to electric motors, lighting and air condition equipment
Compatible with HVAC temperature control, power management and building automation systems



ModelInput(A)Max currnet(A)Output
XH-SCT-075050-200AAC200mA/0.333VAC/0-3 VAC



Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
