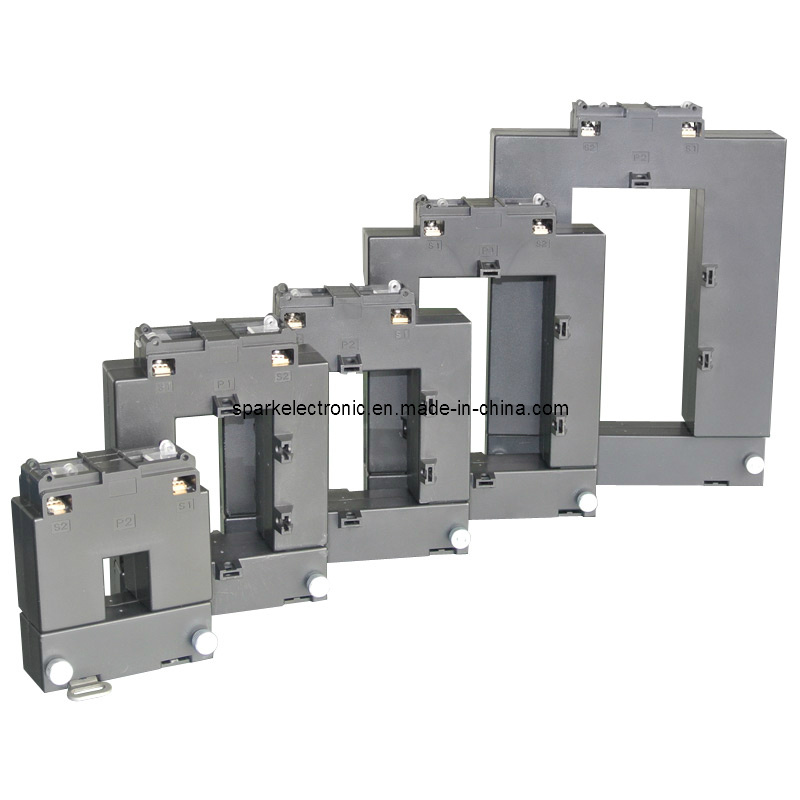

Split Core Current Transformer 2000/5A Current Ratio, Class 0.5

Prod Model:	30 20 8050 808012080 16080
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	Ce
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description



DBP current transformer

Product Details
Key Specification

The CT may be installed without opening any cable or bus-bar circuit.Thus saving time and the installation costs
DESCRIPTION:
The  Split Core Current Transformers has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bur-bars through the transformer core or to connect such cables to the primary terminals. The DP series transformers core may be easily opened and they may be installed and connected without any supply interruption. Thus saving time and the installation costs
FEATURE:
-Two built in fixing methods:Base; Busbar mounting
-Very easy to mounting.
-Wide inner window, allowing clamping of big cables or bus-bars.Wide range of sizes to accommodate all the existing installations.
SPECIFICAIONS
-Primary current :5A ~ 5000A.
-Secondary current 5A/1A
-precision:0.5,1.0
- Voltage:0.72/3kV
-Standard:IEC60044-1,BS7626
-Rated Frequency  :50/60Hz
-Rated test voltage: 3kV AC. (1 min)
-Rated short-time thermal current(Ith): 60In
-Rated dynamic current,(Idyn): 2.5Ith
-Rated voltage,(Um):0.72Kv AC.
-Continuous overload,(Id)1.2In
-Operating temperature: -10C~50C
-Safety factor FS 5
