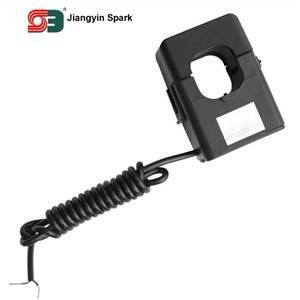

Split Core Current Transformer 200A 0.33V with 24mm Window Size

Name: Split Core Current Transformer 200A 0.33V with 24mm Window Size
Brand: all-electronics-online.com
SKU: 729786955
Availability: InStock
Rating: 4.6 (83 reviews)

Price:	US $ 6.8-7.5/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCT24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

Product Description
Features:
Small size, low cost
High secondary turns
Secure locking hinge
Specifications:
Maximum continuous primary current 300A
Secondary turns: 3000
Wire leads: 22# AWG
Frequency: 50/60Hz
DC resistance: 460ohms @ 20degree Celsius
Applications:
Portable instruments
Sub-metering
Monitor motor loads

Model	I.D.	Ratio	Rated Amps	Accuracy
XH-SCT-T06	6mm	1000:1	1, 5,10, 15, 20,	0.5 , 1.0
XH-SCT-T10	10mm	3000:1	5, 15, 30, 50, 75,80	0.5 , 1.0
XH-SCT-T16	16mm	3000:1	50, 70, 100, 120	0.5 , 1.0
XH-SCT-T24	24mm	3000:1	100, 150, 200, 300	0.5 , 1.0
XH-SCT-T36	36mm	3000:1	300, 400, 500, 600	0.5 , 1.0

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
