Split Core Current Transformer 50A/0.333V

Name: Split Core Current Transformer 50A/0.333V
Brand: all-electronics-online.com
SKU: 814953495
Availability: InStock
Rating: 4.9 (52 reviews)

Price:	US $ 3/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-T10-50A/0.333V
Model:	Xh-Sct-T10A
Input Current:	0-80A
Output:	0.333V ,Ma, Less Than 3V
Leads:	as Customers Requirements
Application:	Lighting
Phase:	Single
Type:	Split Core Current Transformer

Product Description

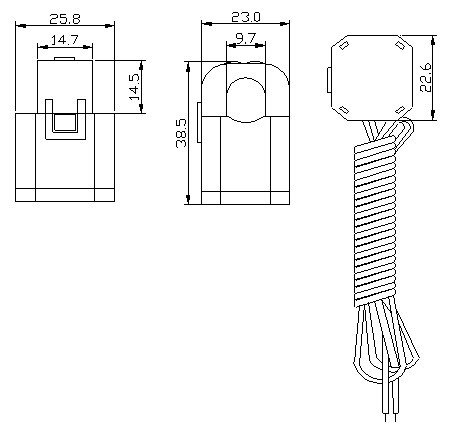

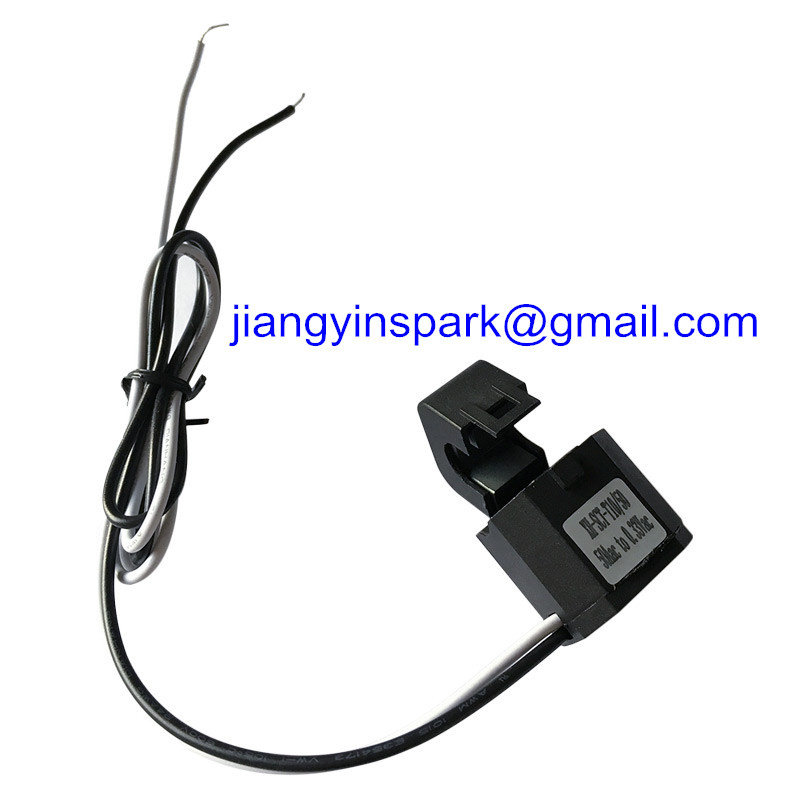

Split-Core AC Current Sensor XH- SCT-T10A
φ10mm Opening With 5 To 80 Amp Rating

Description:
Jiangyin Spark XH-SCT-T10 Series split-core current senses AC current from 5 to 80 Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Features:
Small size, low cost
High secondary turns
Secure locking hinge

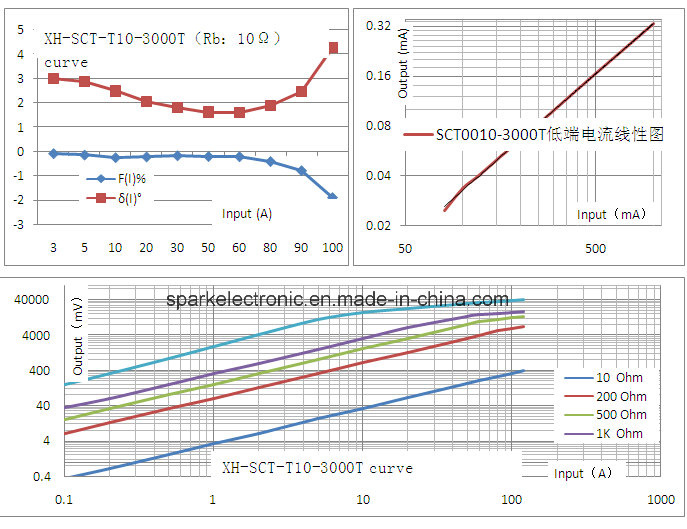

Specifications:
Maximum continuous primary current 80 A AC
Current Ratio: 500:1,1000:1,2000:1,2500:1,3000: 1
Output: mA or 0.333 Volt at rated current
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600Vac
Maximum Primary Voltage: 5000Vac(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE ,UL recognized, and RoHS compliant
Output and leads can be customized

Applications:
Portable instruments
Sub-metering
Monitor motor loads

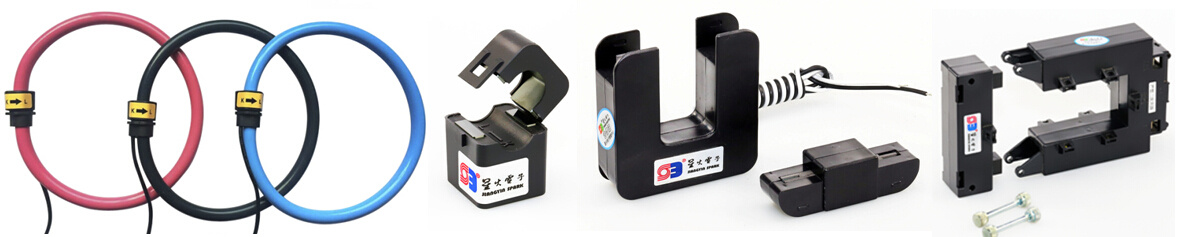

Our hot sales:

Welcome to JIANGYIN SPARK

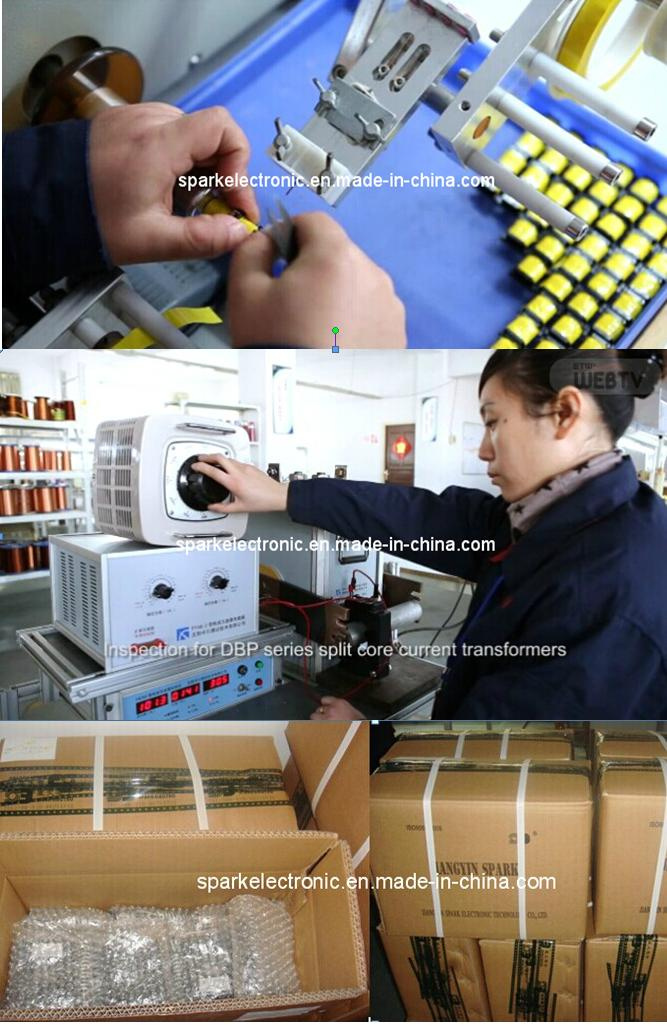

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
