Split Core Current Transformer, Clamp on Current Sensor

Name: Split Core Current Transformer, Clamp on Current Sensor
Brand: all-electronics-online.com
SKU: 729789035
Availability: InStock
Rating: 4.6 (139 reviews)

Price:	US $ 13.8/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	3020 8050 8080 12080 16080
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Single
Type:	Current Transformer

Product Description

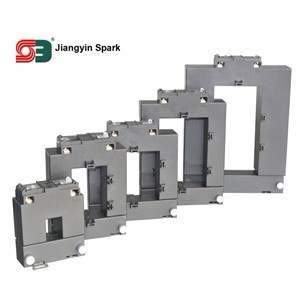

DBP Split Core Current Transformer

Key Specifications/Special Features:

Case material: PBT resin UL flame retardant
Rating: 94 to V0
Rated primary current: 100 to 5, 000A AC
Rated secondary current: 5 or 1A AC
Rated load: 1, 2.5, 5.0, 10 and 30VA
Accuracy: 0.5, 1.0 and 3.0 class
Rated short-time thermal current (Ith): 20In
Rated dynamic current (Idyn): 2.5Ith
Highest voltage for equipment (Um): 720V AC RMS
Rated power-frequency withstand voltage: 3, 000V AC RMS
Frequency range: 50/60Hz
Operating temperature: -15 to 60° C
Split core design, safer, easy to install and portable
Accessories: Supplied with feet for base mounting if required
Applications:
Current, power, energy and monitoring devices
Relay protection devices
Power factor correction devices
Available in 5 standard sizes
Standard: IEC 60044-1
RoHS Directive-compliant

Model	Iin	Io	Dimensions							PDF
	Iin	Io	L	W	H	a	e	M	N
	A	A	mm	mm	mm	mm	mm	mm	mm
DBP-23	100-400A	5/1A	90	40	110	22	32	48	52
DBP-58	250-1000A	5/1A	115	38	157.5	51	81	81	50
DBP-88	250-1000A	5/1A	145	38	162	80	80	111	45
DBP-812	500-1500A	5/1A	145	38	201	81	121	111	45
DBP-610	800-3000A	5/1A	130	49	185	62	106	64.5	45
DBP-816	1000-5000A	5/1A	185	53	248	82	161	119	45

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
