Split Core Current Transformer CT 50A 60A

Name: Split Core Current Transformer CT 50A 60A
Brand: all-electronics-online.com
SKU: 723299022
Availability: InStock
Rating: 4.7 (54 reviews)

Price:	US $ 10-100/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FU-80
Standards:	IEC/En60044-1 & IEC61010-1 & IEC61869-2&ANSI C57.1
Ratio:	200:1, 400:5, 800: 5 or 1000:5, Customized
Primary Current:	200A-1200A
Overload Withstand:	1.2 Times Rated Current Continuously
Accuracy:	0.2%, 0.5 %, 1%
System Voltage:	720V(0.72kv)
Output Signal:	1A or 5A 333mv AC or 100mv-2V Optional
Burden:	2.5va
Frequency Range:	40 Hz-500 Hz
Max. Jaw Opening:	30mm, 55mm, 80 mm
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

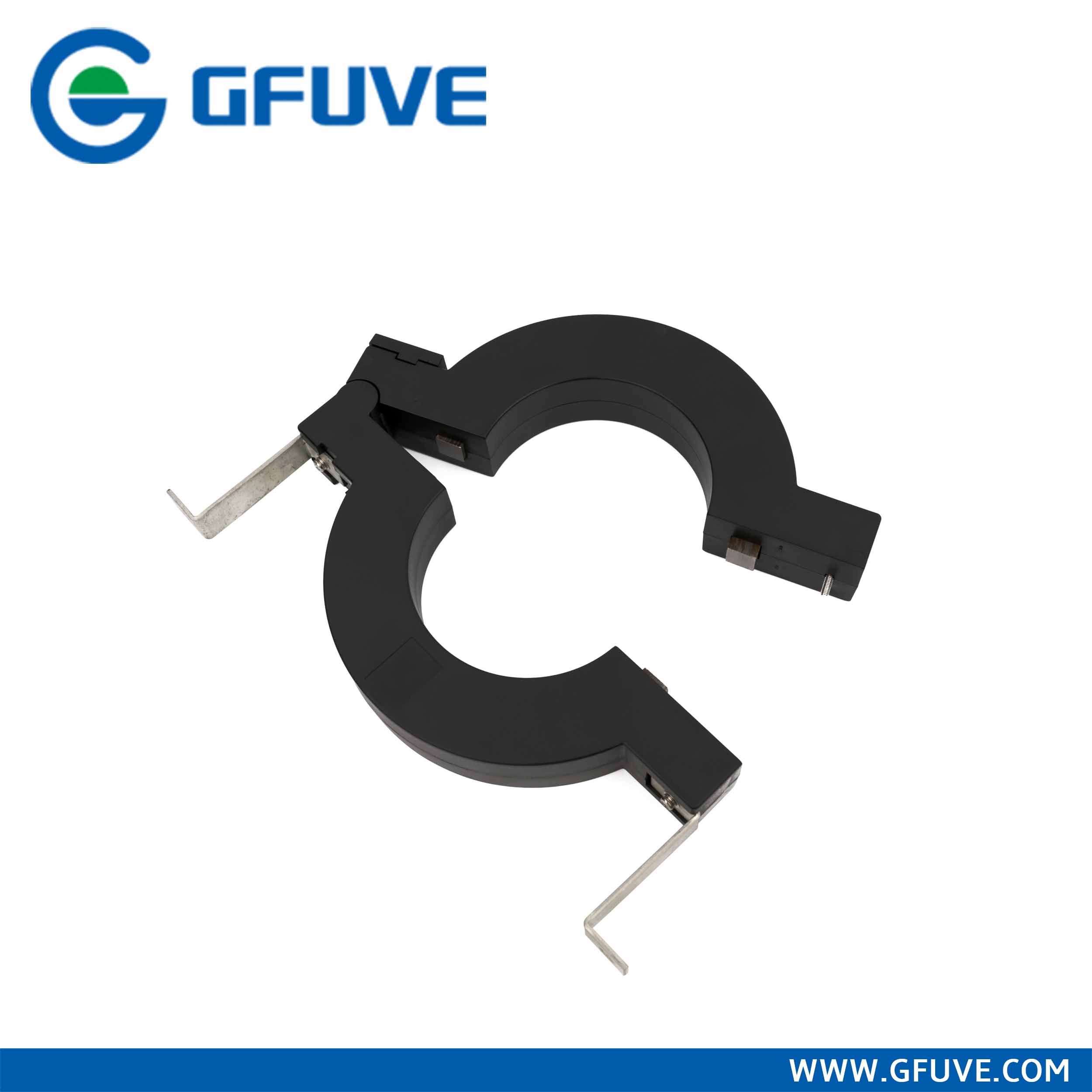

FU-80 Split Core current transformer ct 50a 60a

The GFUVE FU-XX series split core CTs are compact and low cost current transformers with high accuracy. The CTs are ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

Applications	Features
1. Energy sub - meter 2. Power meters 3. Power quality monitoring 4. HVAC & Pumps, etc 5. Distributed measurement system	1. Most cost-eﬀective 2. Faster installation 3. Safe and easy installations 4. High accuracy 0.5 5. Holding wire diameter: φ30mm, φ55mm, φ80mm 6. Ratio's ranging from 100/1A to 1200/5A 7. CE, UL

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
