Split Core Current Transformer Ecs06 Series

Name: Split Core Current Transformer Ecs06 Series
Brand: all-electronics-online.com
SKU: 781865885
Availability: InStock
Rating: 4.7 (61 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ECS06
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Saturation Magnetic Induction:	Low Core Loss
Application:	Lighting
Type:	Current Transformer
Phase:	Single and Three

Product Description

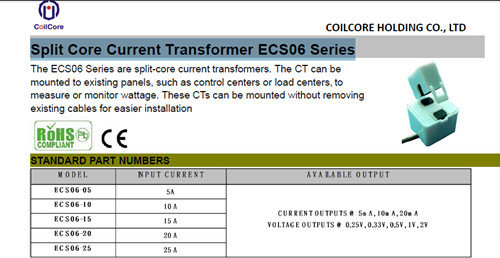

Split Core Current Transformer ECS06 Series

The ECS06 Series are split-core current transformers. The CT can be

mounted to existing panels, such as control centers or load centers, to

measure or monitor wattage. These CTs can be mounted without removing

existing cables for easier installation

MODEL

INPUT CURRENT

AVAILABLE OUTPUT

ECS06-05

CURRENT OUTPUTS @ 5mA, 10mA, 20mA

VOLTAGE OUTPUTS @ 0.25V, 0.33V, 0.5V, 1V, 2V

ECS06-10

10 A

ECS06-15

15 A

ECS06-20

20 A

ECS06-25

25 A

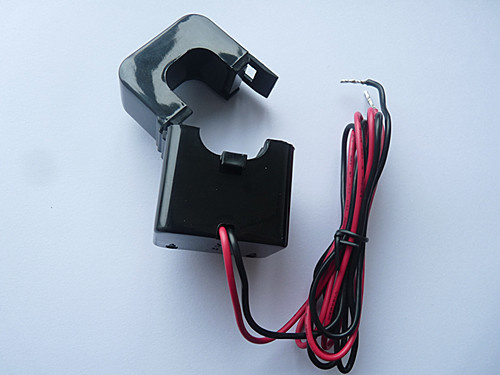

Toroidal small transformer split core current transformer
Toroidal small transformer split core current transformer
Main Features:Small size,easy installation,safer and portable.

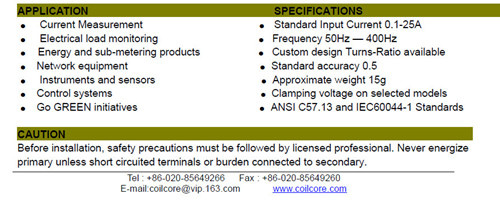

Application:AC current measurement,energy metering,submetering applications
Name	Input(A)	Output current(A)	output voltage(V)	Accuracy class
TRFK10	5A	0~50mA	0.333v	0.5~2.0
	10A	0~50mA	0.333v	0.5~2.0
	20A	0~50mA	0.333v	0.5~2.0
	30A	0~50mA	0.333v	0.5~2.0
	50A	0~50mA	0.333v	0.5~2.0
	100A	0~50mA	0.333v	0.5~2.0
TRFK16	10A	0~100mA	0.333v	0.5~2.0
	20A	0~100mA	0.333v	0.5~2.0
	50A	0~100mA	0.333v	0.5~2.0
	100A	0~100mA	0.333v	0.5~2.0
	200A	0~100mA	0.333v	0.5~2.0
TRFK24	10A	0~200mA	0.333v	0.5~3.0
	100A	0~200mA	0.333v	0.5~3.0
	200A	0~200mA	0.333v	0.5~3.0
	300A	0~200mA	0.333v	0.5~3.0
	400A	0~200mA	0.333v	0.5~3.0

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
