Guangzhou Amorphous Electronic Technology Co., Ltd. >> Split Core Current Transformer Ecs36 Series

Split Core Current Transformer Ecs36 Series

Split Core Current Transformer Ecs36 Series
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: ECS36
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Saturation Magnetic Induction: Low Core Loss
Application: Audio
Type: Current Transformer
Phase: Single and Three

Product Description

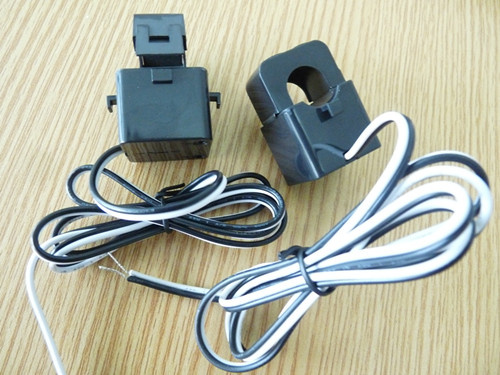

Split Core Current Transformer ECS36 Series
The ECS36 Series are split-core current transformers. The CT can be mounted
to existing panels, such as control centers or load centers, to measure or monitor
wattage. These CTs can be mounted without removing existing cables for easier
installation

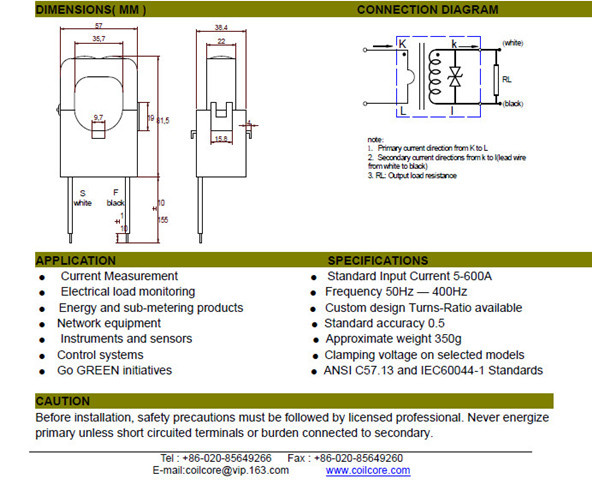

MODELINPUTCURRENT AVAILABLE OUTPUT
ECS36-200200ACURRENT OUTPUTS@20mA,33.3mA,40MA,50mA,100mA
1A,5A
voltage [email protected],0.33V,0.5V,1V,2V
ECS36-300300A
ECS36-400400A
ECS36-500500A
ECS36-600600A






Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
