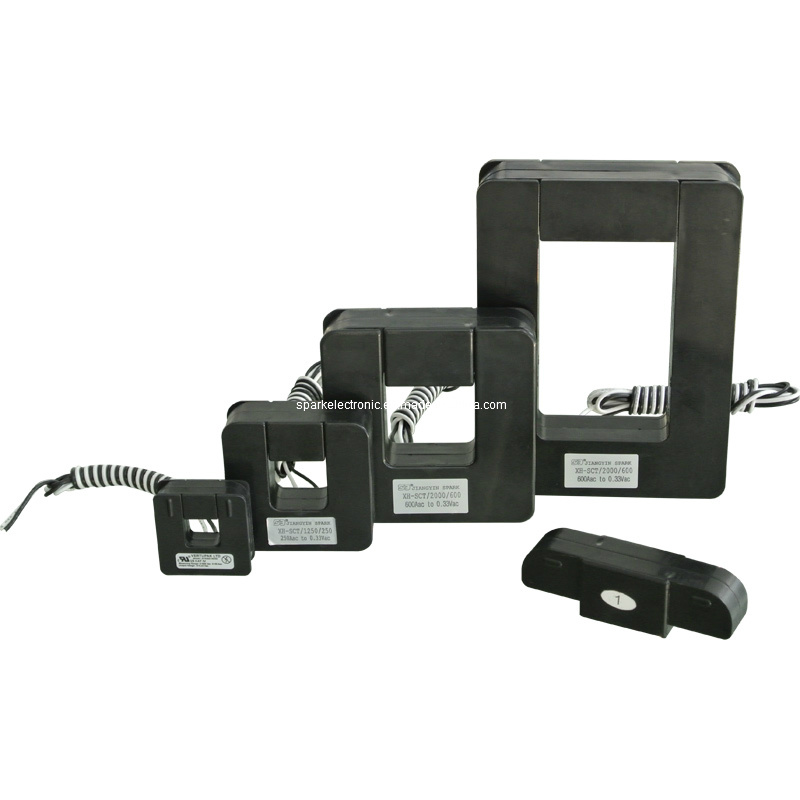

Split Core Current Transformer for Energy Consultant

Name: Split Core Current Transformer for Energy Consultant
Brand: all-electronics-online.com
SKU: 707167845
Availability: InStock
Rating: 4.6 (44 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-0750/1250/2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Xh-Sct-0750/1250/2000/3000
Output:	0.333V
Wire Leads:	UL 1015, 22AWG
Certificates:	UL ,ETL ,CE ,RoHS
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

Specification of Jiangyin Spark clamp ct split core current transformer
Rated Current 5A to 3000A loads.
Rated output: 0.333VAC
Accuracy: ± 1% from 5% to 120% of rated current
Phase Angle: Less than 2 degrees at 50% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Operating Temperature: -15Cto 60C.
Frequency Range: 50-400Hz
Leads: 4Foot(105cm), UL 1015, Twisted Pair,
0.34 mm2(22AWG)
UL&CE recognized. RoHS Compliant
Output and leads can be customized

Model	I. D.	Rated Amps	Output	Accuracy	SIZE ( mm )
Model	I. D.	Rated Amps	Output	Accuracy	A	B	C	D	E
XH-SCT-0750	0.75" (19.1mm)	5, 15, 30, 50, 70, 100, 150, 200	0.333V	1.0	51.6	54.1	16.6	19.1	18
XH-SCT-1250	1.25" (31.8mm)	70, 100, 150, 200, 250, 300, 400, 600		1.0	82.3	85.3	26.4	32	32.3
XH-SCT-2000	2.00" (50.8mm)	400, 600, 800, 1000, 1200, 1500		1.0	120	125	29.6	52.5	52
XH-SCT-3000	3.00" x 5.00" (76.2mm x127mm)	1000, 1200, 1500, 2000.3000		1.0	145	199	30.5	76	130

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
