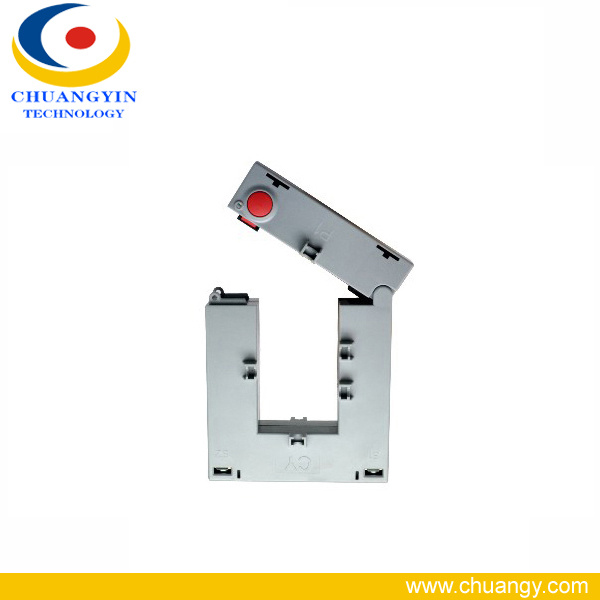

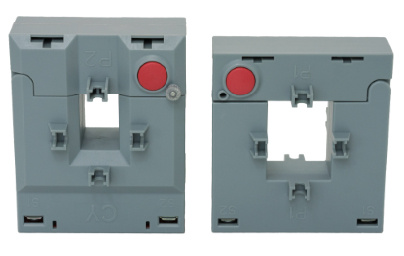

Split Core Current Transformer for Energy Consultant

Name: Split Core Current Transformer for Energy Consultant
Brand: all-electronics-online.com
SKU: 798783565
Availability: InStock
Rating: 4.6 (38 reviews)

Price:	US $ 10-80/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-KCT02
Accuracy:	0.5
Insulation Class:	Cat E
Primary Current:	100-6000A
Customized:	Customized
Secondary Current:	5A or 1A
Split Core Current Transformer:	Kct02 Series
Split Core Current Transformer (Kct02 Se:	Split Core Current Transformers (Kct02 Series)
Application:	Rectifier
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chuangyin

Product Description

Split Core Current Transformer for Energy Consultant

95% customers come back to us for repeat orders
Sample Ready in 3-7 days

Features:

High quality comprensive measurements

Available in a wide range of transformer ratings

Accuracy up to Class 0.5

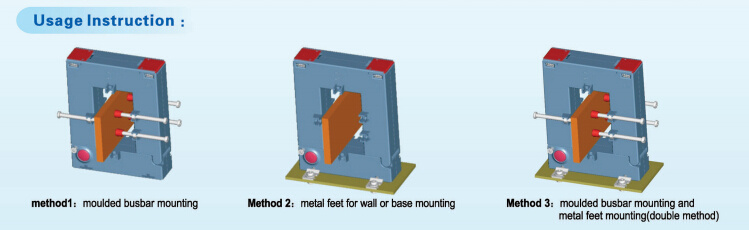

Foot or Busbar mounted

Typical Appication:

Switchgear

Energy Management Systems

Instrumentation Equipment
Split Core Current Transformers are designed for assembly to an existing electrical installation no need to dismantle the primary busbar or cables.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.

www.chuangy.com
