| Prod Model: |
CY-KCT01-005 |
| Turn Ratio: |
2500:1 |
| Insulation Class: |
Cat III |
| Current Range: |
1~50A, 1~100A, 1~200A, 1~300A(Rl=10) |
| Customized: |
Customized |
| Type: |
Split Core Current Transformer |
| Application: |
Rectifier |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Chuangyin |
Product Description
Split Core Current Transformer for Power Meter (Split Core CT CY-KCT01) Manufacturer usd5
Related :Current Transformer for Power Meters
Hinged Split Core
hinged split-core current transformer
Toroidal (Solid Core) Current Transformers
toroidal current transformers
Rogowski Coil CTs
Split Core or Clamp-On CTs
Flexible Split-Core Current Transformer
Removable Leg Current Transformers
Flexible Split-Core Current Transformer
AC Voltage Output Split-Core Current Transformer
Ground Current Split Core CT
Rogowski Coil Current Transformer
AC Clamp-On Current Transformer
Split Core DC Current Transducer
Features: .Low consumption with magnetic
.Delicate, exquisite and weightless, conveniently to install
.Easily install. no need to disconnect primary busbar, measuring with power on, safety and convenient.
Typical Application:
.Multi function electricity energy meter and field calibrator, instruments
.Used in the measurement and protection in power system, while the mobility is strong or space is narrow or power system is uninterrupted.
unit :mm

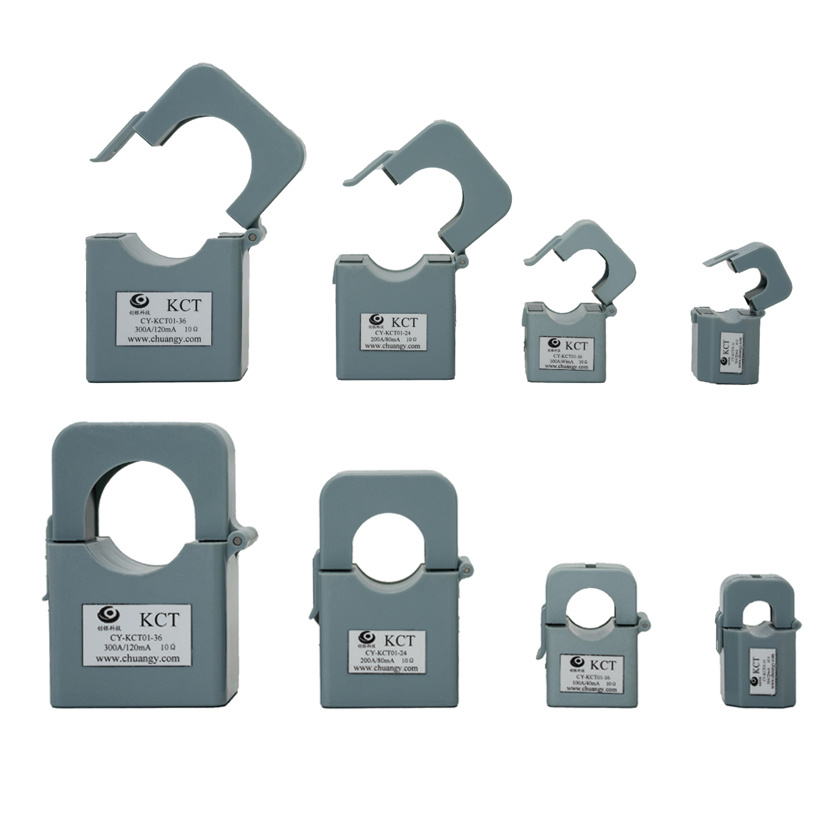

Size Model Number | A | B | C | D | E | Ø |
CY-KCT01-10 | 40.5 | 28.6 | 22 | 26 | 14.5 | 10 |
CY-KCT01-16 | 44 | 31 | 29 | 31 | 19 | 16 |
CY-KCT01-24 | 75 | 50 | 45 | 35 | 19.5 | 24 |
CY-KCT01-36 | 91.6 | 62 | 57.4 | 40.9 | 22.8 | 36 |
Electrical Parameter
Model Number Data | CY-KCT01-10 | CY-KCT01-16 | CY-KCT01-24 | CY-KCT01-36 |
Rated Transformation Ratio | 50A/25mA(50/60Hz | 100A/40Ma(50/60Hz | 200A/80Ma(50/60Hz) | 300A/120mA(50/60Hz) |
Current Range | 1-50A(RL=10 | 1-100A(RL=10Ω | 1-200A(RL=10Ω) | 1-300A(RL=10Ω |
Max Withstand Current | 60A | Accuracy Class | 0.2 0.5 1 |
Phase Displacement | 1-=1.5+1º | |
Phase Displacement | 1-=1.5+1º | +1.0±1º | | +0.5 ±0.5º |
Linearity error | -1±1% | -1±1% | | -1±1% |
Turn Ratio | 2500:1 | 2500:1 | | 2500:1 |
Protective Class | 7.5VO-P | 7.5V0-P | | 7.5VO-P |
Insulation Class | CAT III |
Working Environment | Temperature :-30-70ºC Humidity <=85%,Indoor |
Storage Condition | Temperature : -40-90ºC Humidity <=85% |

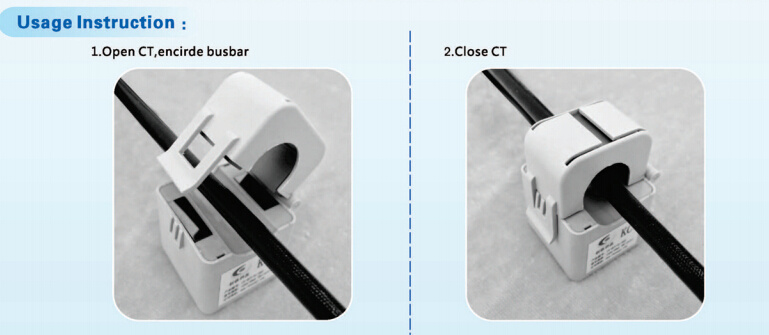

Usage Instruction:

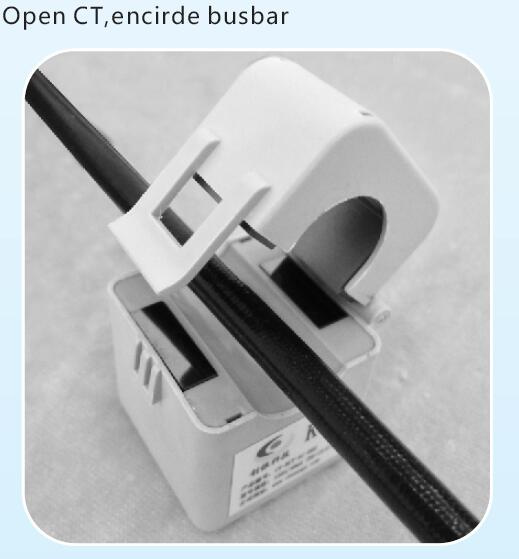

1.Open CT, encirdebusbar 2.Close CT
Note:
Please browse our website and download product catalogue for detailed information.
