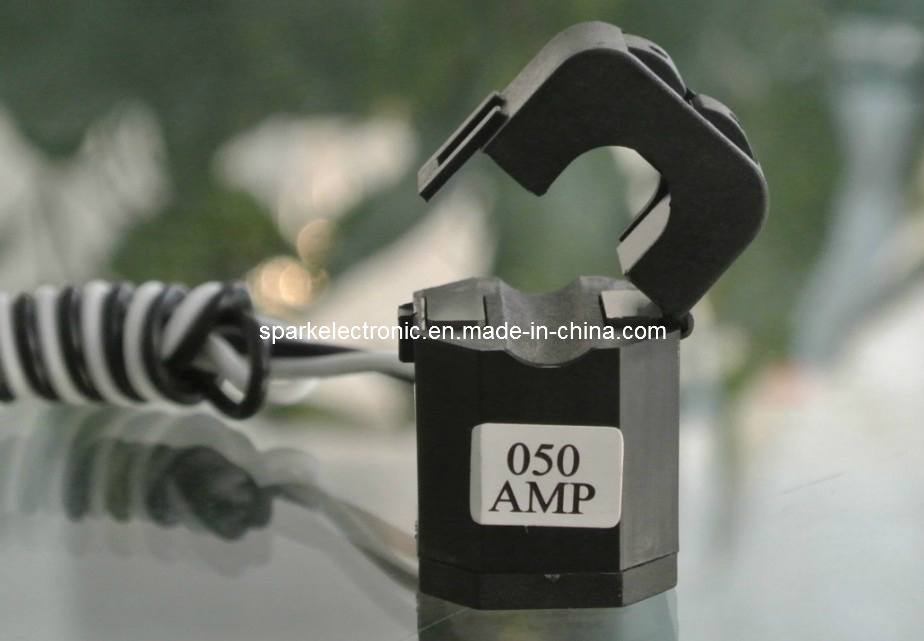

Split Core Current Transformer Sensor T10 50A/0.33V 80A/0.33V

Name: Split Core Current Transformer Sensor T10 50A/0.33V 80A/0.33V
Brand: all-electronics-online.com
SKU: 729782685
Availability: InStock
Rating: 4.8 (91 reviews)

Price:	US $ 2.00-3.00/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCT10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

0-80A/0.333V split core current transformer

Split core current transformer SCT-T10 with 50A output 0.33V output
Electrical specification:
Rated primary current: 50A , or other specification
Turn ratio:
Np:Ns = 1:3,000
Current ratio: 50A/0.33V
Accuracy : 1%
Phase error at rated current range: 120'+/-10'
Dielectric withstanding voltage (hi-pot): 2.5kV/1mA/1min
Impulse withstand voltage: 5kV peak
Mechanical specification:
Hole dimension: 10mm
Output wire: 24AWG 300V UL1015
Approximate weight: 60g
Applications:
Current measurement
Monitoring and protection
Pls contact us to confirm the datasheet you need!
Discount can be offered as per your quantity!

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
