Split Core Current Transformer Transducer Clamp CT

Name: Split Core Current Transformer Transducer Clamp CT
Brand: all-electronics-online.com
SKU: 707566275
Availability: InStock
Rating: 4.3 (36 reviews)

Price:	US $ 2.9-9.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	99/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-T10/T16/T24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Current:	0-600A
Output:	Ma, Mv, 1A and 5A Secondary Output
Accuracy:	0.5%,1.0%
Customers Design:	Aaliable
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

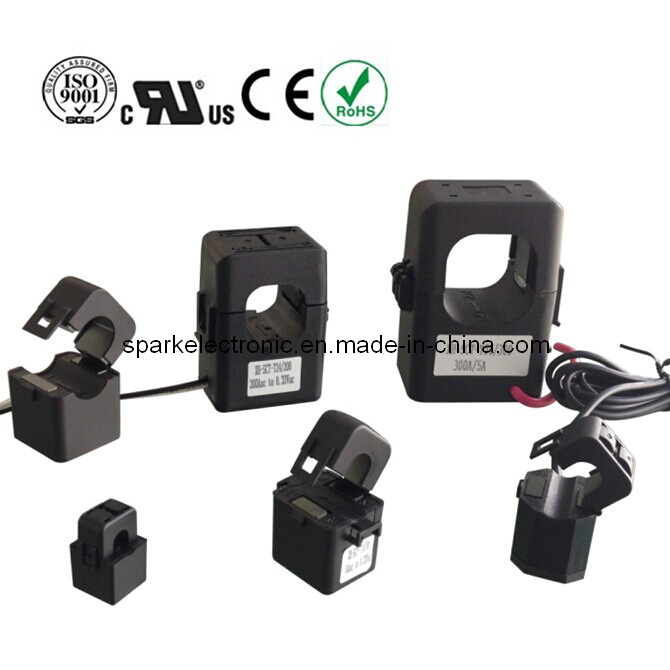

Split Core (Clip on) Current Sensor
The JIANGYIN SPARK series of split core current sensors are designed for fast and easy installation. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor.This method permits a safer,easy and portable current measurement.
Features:
Small size, low cost
High secondary turns
Secure locking hinge

Specifications:
Maximum continuous primary current 1A to 600AAc
Current Ratio: 500:1 ,1000:1 ,2000:1 ,2500:1 ,3000: 1
Output: mA or 0.333Vac to 3.53Vac
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600Vac
Maximum Primary Voltage: 5000Vac(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG
CE ,UL recognized, and RoHS compliant
Output and leads can be customized
Applications:
Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features ,Load Center
Three Phase Balance Control
In-Factory Display ,In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
