Split Core Current Transformer Zemctk02

Name: Split Core Current Transformer Zemctk02
Brand: all-electronics-online.com
SKU: 820127135
Availability: InStock
Rating: 4.8 (61 reviews)

Price:	US $ 1/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

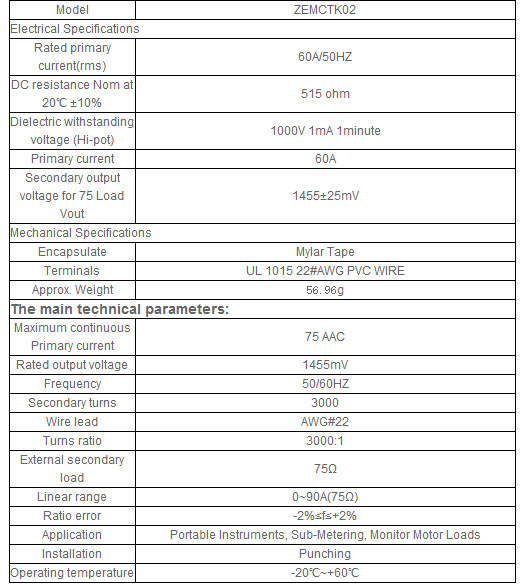

Prod Model:	ZEMCTK02
High Saturation Magnetic Induction:	Low Core Loss
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

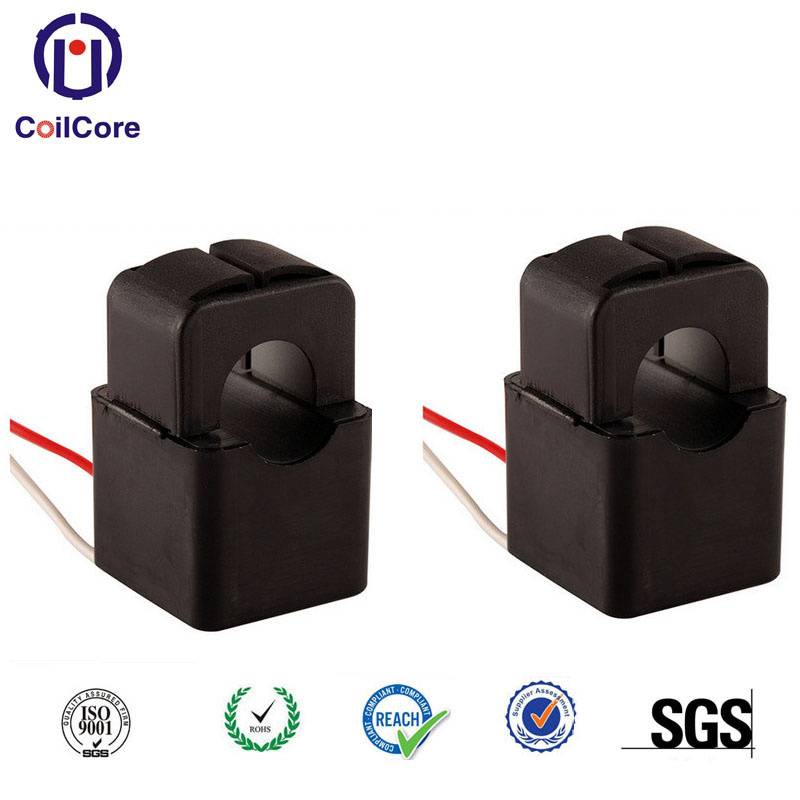

Split Core Current Transformer can be mounted to existing panels, such as control centers or load centers,
to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.

Specifications can be provided concerning to customers demand.

Maximum Continuous Primary Current: 0~1000A
Accuracy: 0.5%~1%
Secondary turns: 50 ~6000
Output: 0.333V, 1A, 5A
Wire leads: ACCORDING TO YOUR DEMAND
Frequency: 50/60 Hz

Applications:
Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features
Load Center
Three Phase Balance Control
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC
