Split Core Flexible Rogowski Coil
| Price: |
US $ 79.9-85/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CY-RCT01 |
| Frequency: |
25-20k Hz |
| Insulation Class: |
Cat III |
| Customized: |
Customized |
| Accuracy: |
<1%(45-65Hz) |
| Current Range: |
10A ~10ka / 10A ~6000A |
| Clamp-on: |
Rogowski |
| Application: |
Rectifier |
| Phase: |
Single |
| Coil: |
Amorphous Alloy Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Chuangyin |
Product Description
Series Clamp-on Flexible Rogowski Coil Current Transformers CY-RCT01

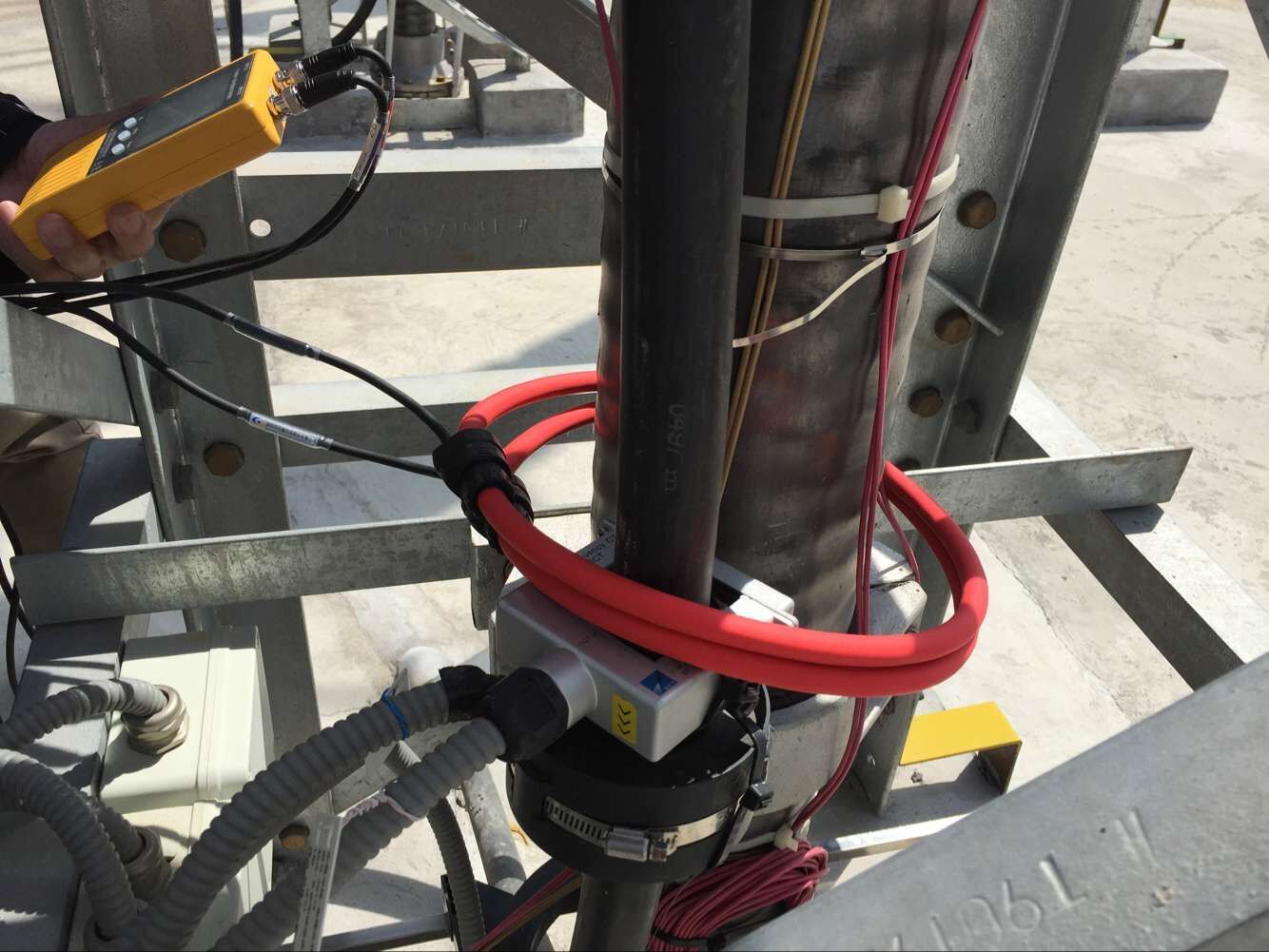

The "RCT01 Clamp-on Flexible Rogowski coil current transformer" are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.Features: .Flexible and light weights.Easy& quick installation in tight spaces.No danger from open-circuited secondary.No core saturation or damage if overloaded.excellent linearity.Multi-size are available Applications:.Power quality monitoring.Power meters.Smart logger.Energy sub-meters .Distributed measurement systems Model Code: General data:.Ambient operating temp:-20...+70ºC.Ambient storage temp.:-25...+75ºC.Standard Safety:IEC 61010-1:2001,600V CAT Dimension: | Dimensions | CY-RCT01-55
CY-RCTA01-55 | CY-RCT01-80
CY-RCTA01-80 | CY-RCT01-105
CY-RCTA01-105 |
| Window A | 55 | 80 | 105 |
| Coil DB B | 68.5 | 93.5 | 118.5 |
| Coil Length C | 200 | 300 | 380 |
| Output connection | UL2586-ESB2*24AWG L=150cm(as required)
Coax terminated with safety male BNC connector L =300cm(as required)
UL2586-esb2*24AWG L=150cm(as required)with integrator |
Electrial Parameter: | Type Data | CY-RCT01-55 | CY-RCT01-80 | CY-RCT01-105 | CY-RCTA01-55 | CY-RCTA01-80 | CY-RCTA01-105 |
|
| Current Range | 10A-10KA | 10A-6000A |
| Frequency | 25Hz-20kHz | 45Hz-600Hz |
| Output Voltage | Rated curent | 500A | 1000A | 2000A | 250A,500A,800A,1000A | 1000A,1500A,2000A,2500A | 1000A, |
| 2000A, |
| 2500A |
| 3000A |
| 50Hz | 50Mv AC | 100mv AC | 200mv AC | 333mV |
| 1mV/A |
| Max output | / | 3.0V AC max |
| Accuracy | <1%@25ºC(45-65Hz) | <1%@25ºC(45-65Hz) |
| Phase error | <60@25ºC(45-65Hz) | <60@25ºC(45-65Hz) |
| Output sensitivity | ±2%Max (No Calibration) | 1% |
| ±0.5%@25ºC(with Calibration |
| Linearity error | ±0.2%(10%-100%IIn) | ±0.2% |
| Position Sensitivity | ±0.2% | ±2% |
| External Influence | ±0.2% Max | ±1.5%Max |
| Power Supply | / | 10-30VDC,30m A MAX. |
Linearity& Phase angle error graph Position Sensitivity
Usage Instruction:
Note:Please browse our website and download product catalogue for detailed information. SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD. ( CY Group )Certification: KEMA, ISO9001, UL, SGS, CE.( Your reliable partner for CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT )Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd., Shenzhen High-Tech Zones, Nanshan, Shenzhen, China, Post code: 518057Tel: +86 0755-86000716/ 86007806Fax: +86 0755-86000614Web: www.chuangy.comRogowski coil Arvin Q.Business Development ExecutiveMob: +86 13925284622
