Split Core High Accuracy Current Transducer CT

Name: Split Core High Accuracy Current Transducer CT
Brand: all-electronics-online.com
SKU: 827746685
Availability: InStock
Rating: 4.6 (56 reviews)

Price:	US $ 8-12/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Phase:	Single
Safety Standard:	IEC60044-1
Frequency:	50-60Hz
Flame Retardant:	UL94V-0
Thermal Class:	Class B
Packaging:	Carton
Production Process:	Plastic Case
Material:	Ferrite Core
Application:	Measurement

Product Description

Split core current transformers

Description

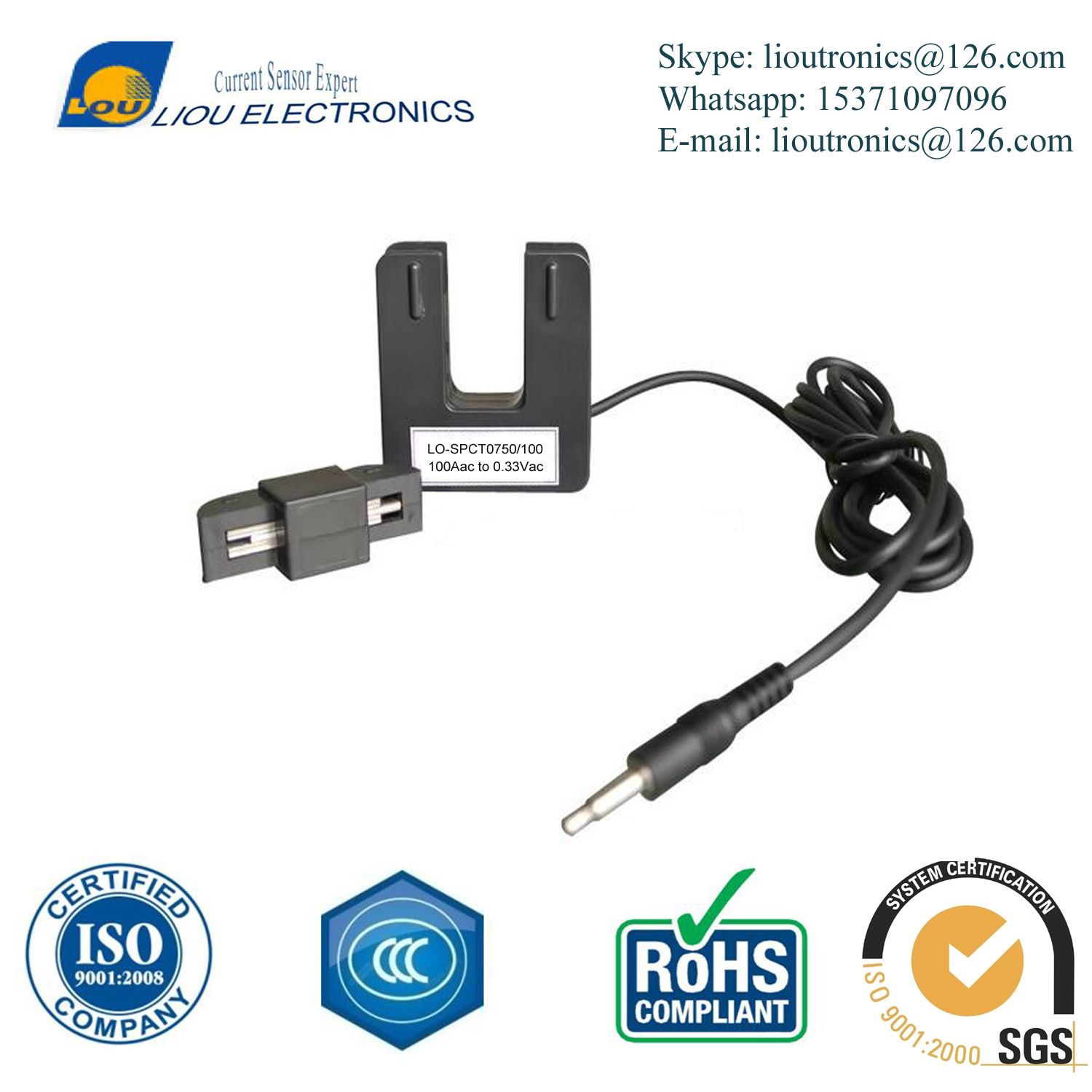

LO-SPCT-0750 Series split-core current transformer AC current from 5A to 200 AMPS passing through the center conductor. Split core CTs are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer, easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary

Application
• Data logging       •   Recording   •   Power monitoring
•   Energy management •   Alternative energy monitoring
•   Cost allocation

Features
Rated Current 5A to 200A loads.
Rated output: 0.333VAC at rated current
Accuracy: ± 1% from 5% to 120% of rated current
Phase Angle: Less than 2 degrees at 50% of rated current
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Operating Temperature: -15C to 60C
Frequency Range: 50-400Hz
Leads: 4Feets(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized. RoHS Compliant
Output and leads can be customized

Specificaiton

Model	I.D.	Rated Amps	Output	Accuracy	SIZE(mm)
					A	B	C	D	E
LO-SPCT-0750	0.75"	5, 15, 30, 50, 70, 100, 150, 200	0.333V	1	51.6	54.1	16.6	19.1	18
	(19.1mm)
LO-SPCT-1250	1.25"	70, 100, 150, 200, 250, 300, 400, 600		1	82.3	85.3	26.4	32	32.3
	(31.8mm)
LO-SPCT-2000	2.00"	400, 600, 800, 1000, 1200		1	120	125	29.6	52.5	52
	(50.8mm)
LO-SPCT-3000	3.00" x 5.00"	1000, 1200, 1500,2000.3000		1	145	199	30.5	76	130
	(76.2mm x127mm)

Quality Standard and Custom Design Products

LIOU Current Transformer has been an industry leader in design and production of current transformer products for over 20 years. Our focus is to build quality products designed to meet your needs. You may choose from any of our standard products or we can design and build a custom solution specifically for your application.

Designed, Manufactured and Distributed From One Location

Every aspect of your order is handled in house allowing us the opportunity to design, manufacture and ship your current transformer product quickly. Each order is reviewed by one of our qualified engineers to make sure the product you are ordering will work for you.

Superior Goals and Higher Expectations

It is the goal of LIOU Current Transformer to maintain its position as a worldwide industry leader in current transformer design and production. We will accomplish this by providing you with quality products and services that meet or exceed your current and future expectations.

Our Objective Is For You to Have Full Confidence in LIOU Current Transformer.

Each employee, at every level within the company, understands your satisfaction is fundamental to our growth and long-term development. LIOU Current Transformer believes that this level of quality will be achieved by:

1. A Total Quality Management approach. Every employee, supplier and customer is regarded as an essential part of the quality achievement process.

2. An error-free performance standard, based on prevention and development of a "Get It Right The First Time" work environment.

3. Implementation and maintenance of a quality assurance process that includes a hands on inspection of all your products during the manufacturing process with a final quality inspection prior to shipping.

4. Adhering to safety standards.

5. Development of all employees through continued training.

We look forward to demonstrating to you the superior quality and customer service our customers have come to expect from LIOU Current Transformer.
