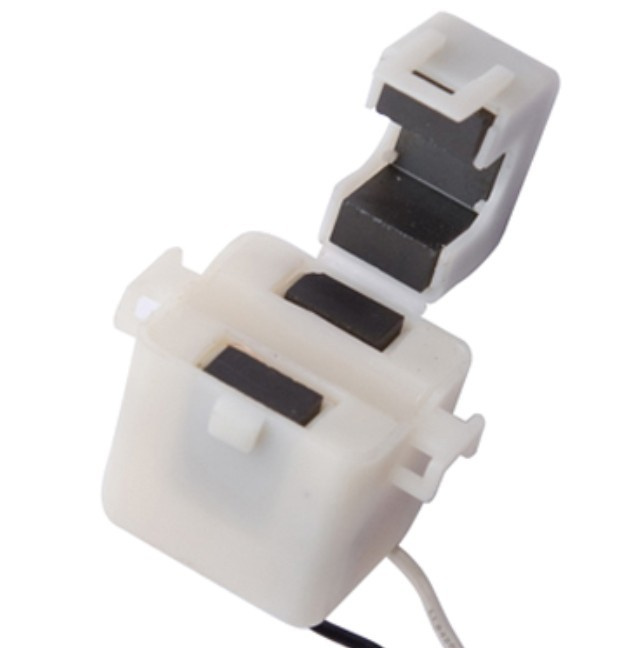

Split Core Sensor for Energy Monitor

Name: Split Core Sensor for Energy Monitor
Brand: all-electronics-online.com
SKU: 684849205
Availability: InStock
Rating: 4.9 (139 reviews)

Price:	Negotiable
Trade Terms:	Shipping, Are. Express
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-T10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Payment:	T/T, Paypal, Western Union
Phase:	Single
Type:	Current Transformer

Product Description

Features:
Small size, low cost
High secondary turns
Secure locking hinge

Features:
Split core design
Safer, easy to install
Portable
Specifications:
Case materials: Nylon, resin and UL flame
Rated primary current: 5 to 150A AC
Rated secondary voltage: 0.333 to 3.53V AC
Accuracy class: 0.5, 1.0 and 3.0
Rated security coefficient: FS< 5
Retardant rating: 94-V0
Highest voltage for equipment Um (RMS): 720V AC
Rated power-frequency withstand voltage (RMS): 3, 000V AC
Frequency range: 50/60Hz
Operating temperature: -15 to 60° C
Leads: 0.8ft (240mm), UL 1015, twisted pair, 0.34mm2 (22AWG)
RoHS Directive-compliant
Applications:
Measures AC current flow to electric motors, lighting and air condition equipment
Compatible with HVAC temperature control, power management and building automation systems

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
