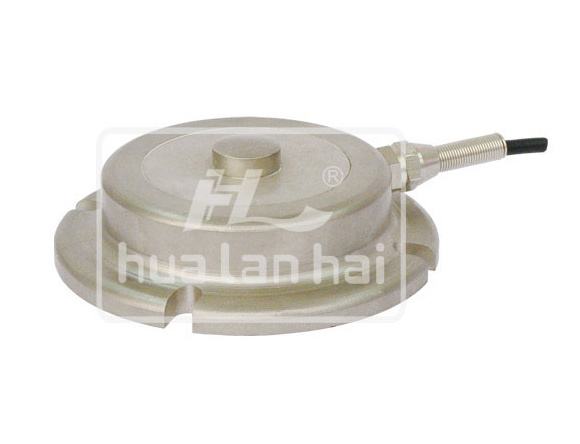

Spoke&Round Style Load Cell (CZL201)

Name: Spoke&Round Style Load Cell (CZL201)
Brand: all-electronics-online.com
SKU: 760046965
Availability: InStock
Rating: 4.4 (29 reviews)

Price:	US $ 70/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL201
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Rated load: 1~50t
Main features: Alloy steel & stainless structure; Bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; Suitable for electronic platform scales, hopper scales, and other electronic weighing devies.

Parameters :
Precison : C1&C2		Temp. effect on span (%F.S/10 deg C): ±0.028& ±0.017
Comprehensive error (%F.S) : ±0.05 & ±0.03		Temp. effect on zero (%F.S/10 deg C): ±0.047 & ±0.029
Rated output (mv/v) : 2.0 ± 0.01		Compensated temp. range ( deg C ) : -10~+40
Creep (%F.S/30min) : ±0.038 & ±0.023		Use temp. range ( deg C) : -35~+65
Zero balance (%F.S) : ± 1 .0		Excitation voltage( V) : 9~12( DC)
Input resistance (ohm) : 700 ±10		Safe overload (%F.S) : 1 2 0
Output resistance ( ohm) : 700 ±5		Ultimate overload (%F.S) : 150
Insulation resistance (M ohm) : ≥ 5000(100VDC)		Defend grade : IP68

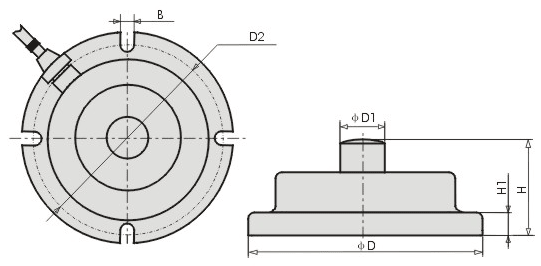

Rated Load(t)	D	D1	D2	H	H1	B
1	115	20	99	36	8	8.4
2	120	20	104	38	8	8.4
3-5	128	20	114	38	8	8.4
10	158	40	140	63	15	10.4
15	194	42	170	68	20	10.4
20	220	44	196	73	22	12.4
30	230	48	206	78	25	12.4
50	264	52	240	90	30	12.4

Wiring schematic diagram:

Red: Input ( + ) White: Output ( - )
Black: Input ( - ) Green: Output ( + )

Notes:It used 4-core shielded cable(φ5×3000mm)

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
