Spoke Type Load Cell Weighing Transducer and Module

Name: Spoke Type Load Cell Weighing Transducer and Module
Brand: all-electronics-online.com
SKU: 791597345
Availability: InStock
Rating: 4.7 (71 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-61G
IP Grade:	IP67
Working Temperature:	200 Cetigrade
Rated Output:	1.5mv/V
Capacity:	1~20t
Product Name:	Weighing Module/Pancake Load Cell

Product Description

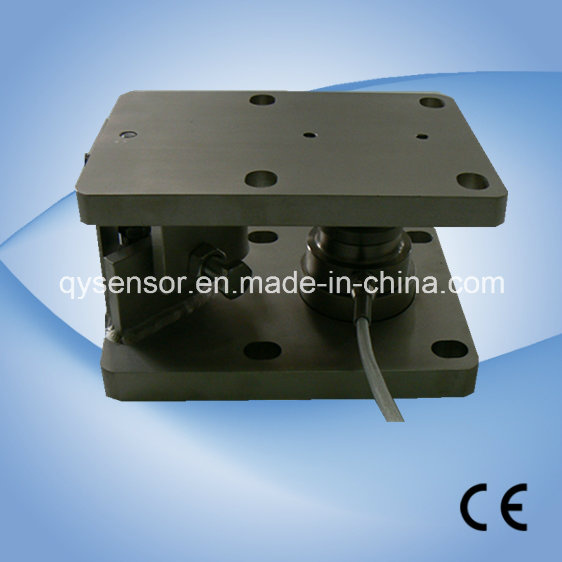

QH-61G Series weighing transducer and module
Features:
1. Alloy steel or stainless steel materials.

2. Reasonable structure, installation components is stable and reliable.

3. Capacity range :1-20t

4. Outlet with standard way for four wires, optional six wires.

5. Used in the hopper scale and weighing system.
Specification

Rated load	t	1~5		10~20
Rated output	mv/v	2.0±0.01		2.8±0.01
Accuracy grade	%FS	±0.03	±0.05	±0.03	±0.05	±0.1
Linearity error	%FS	±0.03	±0.05	±0.03	±0.05	±0.1
Hysteresis error	%FS	±0.03	±0.05	±0.03	±0.05	±0.1
Repeatability error	%FS	±0.02	±0.03	±0.02	±0.03	±0.05
Creep error	%FS/30min	±0.03	±0.05	±0.03	±0.05	±0.05
Temperature coefficient of ZERO	%FS/10ºC	±0.02		±0.03		±0.05
Temperature coefficient of SPAN	%FS/10ºC	±0.02		±0.03		±0.05
Zero unbalance	%FS	±1
Safe overload	%FS	150
Output resistance	Ω	700±10
Input resistance	Ω	750±30
Insulation resistance	MΩ	5000(50VDC)
Excitation voltage	V	10(DC)
Maximum excitation	V	15(DC)
Compensation temperature	ºC	-10~+40
Operating temperature	ºC	-10~+60
Protection	/	IP67
Mode of connection	4-core 12 meters cable Excitation+ red; Signal+ green ; Excitation- black ;Signal- white.

Packaging & Shipping

Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
According to the clients requirement

Our Services

We are committed to providing a high quality,and responsive services to all clients
Detailed informations, specific and price of products will be provided quickly after receiving your inquiry.
Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
Packageing: well box packed and provide optimal freight for you refrence.
All products OEM available

Company Information

Han Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60

Contact details

Chloe Shu

Sales Engineer

__________________________________

HanZhong QuanYuan Electronic Co.,Ltd.

TEL: +86-916-2257989

MOB: +86 15336190378

http://www.qysensor.com

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
