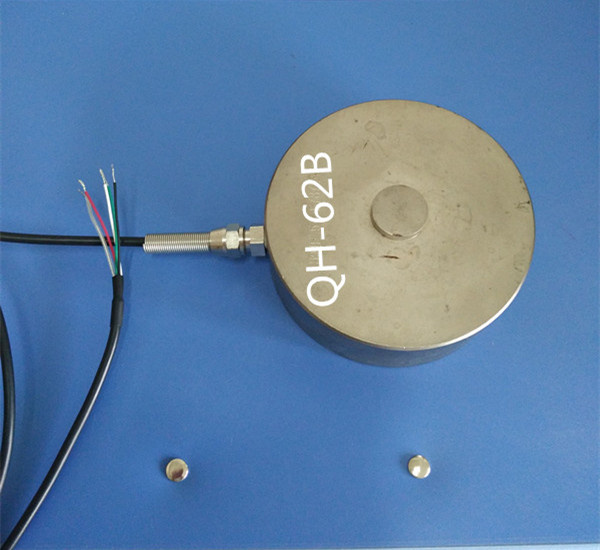

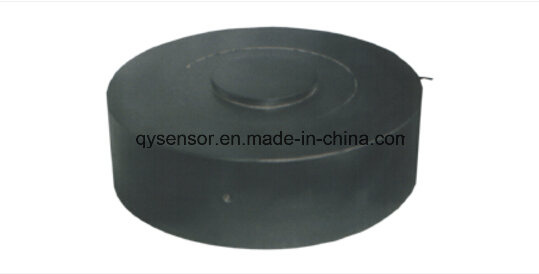

Spoke Type Pile Foundation Tests Applied Load Cell (ZEMIC Load Cell H2A)

Name: Spoke Type Pile Foundation Tests Applied Load Cell (ZEMIC Load Cell H2A)
Brand: all-electronics-online.com
SKU: 795944845
Availability: InStock
Rating: 4.3 (103 reviews)

Price:	US $ 2500/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-62D
Application:	Pile Foundation Tests
Defend Grade:	IP66 & IP68
Type:	Pancake Load Cell
Capacity:	1/2/3/4 Mn

Product Description

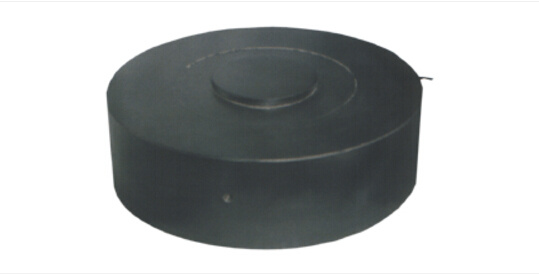

Spoke Type Pile Foundation Tests Applied Load Cell (ZEMIC Load Cell H2A)

Product Specifications:

1.QH-62D load cells are available in the manifold accurate measurement in the capacities 1MN to 5MN.
2.Alloy steel,surface bluing treatment,spray painted, oil-proof,waterproof and anti-corrosion,suitable for groundsill measuring and other engineeringmeasuring fields.
3.Spoke type,easy installation,suitable for special force measuring equipment.
4.Safety and anti-explosion product,can be used in atrocious environments and hazardous areas.

Features:
Capacities:1MN~5MN.
Alloy steel construction.
High reliability and long life span.

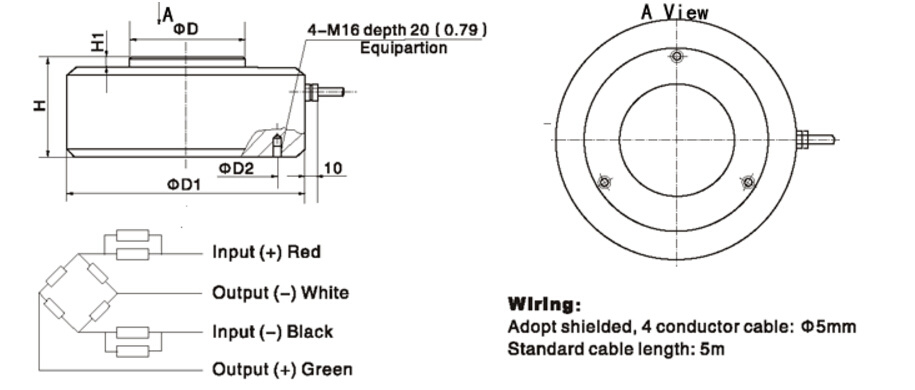

Electrical Connection and Dimension:

Capacity(t)	100	200	300	400	500
D	59(2.32)	78(3.07)	91(3.58)	110 (4.33)	133 (5.24)
D1	260 (10.24)	290 (11.42)	330 (12.99)	400 (15.75)	400 (15.75)
D2	200(7.87)	225 (8.86)	251(9.88)	296(11.65)	307 (12.09)
H	80(3.15)	104(4.09)	123(4.84)	132(5.20)	132(5.20)
H1	10(0.39)	10(0.39)	10(0.39)	10(0.39)	10(0.39)

Technical Specifications:

Capacity	MN		1/2/3/4/5
Accuracy		G1	G2	G3
Combined error	(%FS)	0.1%	0.2%	0.3%
Creep	(%FS/30min)	0.05%	0.05%	0.05%

Temperature effect on sensitivity	(%FS/10ºC)	0.05%		0.1%	0.2%
Temperature effect on zero	(%FS/10ºC)	0.05%		0.1%	0.2%
Output sensitivity	(mv/v)			≥ 2.0
Output sensitivity	(mv/v)			≥ 2.0
Input resistance	(Ω)		1072±5
Output resistance	(Ω)		1050±5
Insulation resistance	(MΩ)		≥ 5000(50VDC)
Zero balance	(%FS)		1.0
Temperature,compensated	(ºC)			-10~+40
Temperature,compensated	(ºC)			-10~+40
Temperature,operating	(ºC)			-35~+65
Excitation,Recommended	(V)			5~12(DC)
Excitation,Max	(V)			18(DC)
Safe overload	(%FS)		150
Ultimate overload	(%FS)		300
Ultimate overload	(%FS)		300

Electrical connection:
Excitation+ red
Excitation- black
Signal+ green
Signal- white
Four-core shielded cable with polyethylene.
Cable is not connected with elastomer.
Cable length:12 m Cable diameter :5 mm
The cable length could be chose by customer's application.
