Spoke Type Weighing Sensor for Silo or Tank Weighing (QH-61F)

Name: Spoke Type Weighing Sensor for Silo or Tank Weighing (QH-61F)
Brand: all-electronics-online.com
SKU: 682447391
Availability: InStock
Rating: 4.6 (67 reviews)

Price:	US $ 252/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-61F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Pancake Load Cell
Capacity:	From 1t to 100t
Safe Overload:	Fs% 120
Ultimate Overload:	Fs% 150
Pattern:	Pancake Load Cell

Product Description

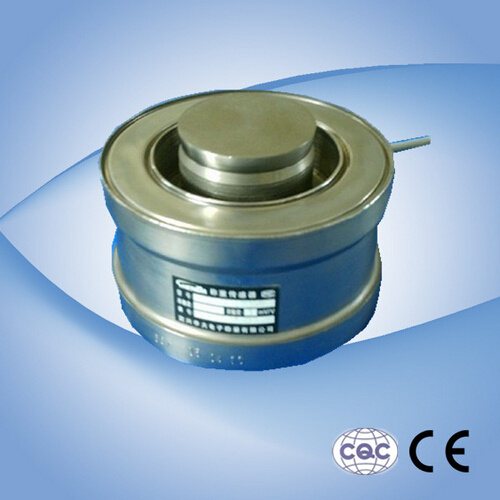

Spoke Type Weighing Sensor FOR Silo or Tank Weighing (QH-61F)

Product Discription:

QH-61F load cells are available in the capacities from 1t to 100t
Alloy steel or aluminum alloy construction with spoke type.
Silicon adhesive sealed inside, waterproof, anti-corrosion and suitable for all kinds of environment.
Suitable for truck scale, railway scale,hopper scales and other electronic weighing devices.
Outlet with standard way for four wires, optional six wires

Features:

Capacity: 1~100t.
Defend grade: IP66 & IP68.
Reliable performance,integral installation and easy installation.

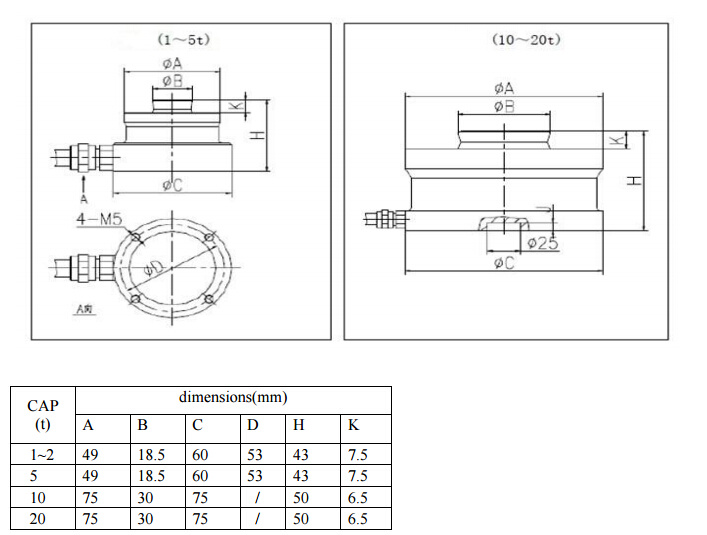

Dimensions:

Technical Specifications:

Specifications:
Capacity	t	1~100
Safe overload	%FS	120
Ultimate overload	%FS	150
Rated output	mV/V	(1.0~1.5) ± 0.02
Excitation voltage	Vdc	10~15
Combined error	%FS	± 0.05	±0.1
Zero unbalance	%FS	± 1
Non-linearity	%FS	± 0.05	± 0.1
Hysteresis	%FS	± 0.05	± 0.1
Repeatability	%FS	± 0.03	± 0.05
Creep	%FS/30min	± 0.05	± 0.05
Input resistance	Ω	760 ± 30
Output resistance	Ω	701 ± 5
Insulation resistance	M Ω	≥ 5000 @ 50 Vdc
Operating temperature range	ºC	-20 ~ +70
Compensated temperature range	ºC	-10 ~ +40
Temperature coefficient of SPAN	%FS/10ºC	± 0.03	± 0.03
Temperature coefficient of ZERO	%FS/10ºC	± 0.02	± 0.03

Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene.
Cable diameter :5.8mm
Cable length:15m
The cable length could be chose by customer's application.

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.
