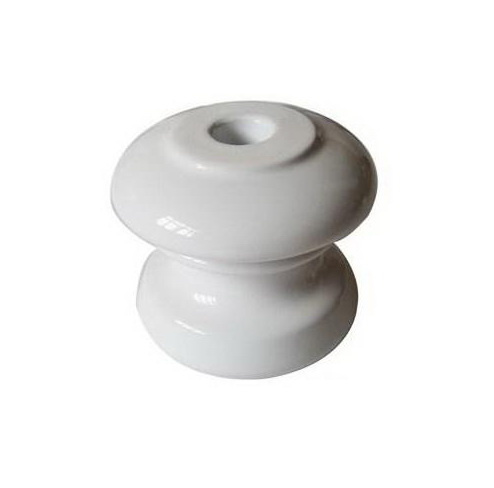

Spool Insulators Accordance with ANSI Standard

Name: Spool Insulators Accordance with ANSI Standard
Brand: all-electronics-online.com
SKU: 694283582
Availability: InStock
Rating: 4.4 (130 reviews)

Price:	US $ 3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	53-1&53-2&53-3&53-4&53-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Specification:	ANSI
Type Specification:	Spool Insulator
Packages:	Export Package
Application:	Low-voltage
Material:	Porcelain
Structure:	Spool Insulator
Type:	Spool
Certification:	ANSI
Color:	Grey
Brand:	Cie

Product Description

53-1&53-2&53-3&53-4 are types of spool insulators. Spool insulators belong to porcelain insulators. Spool insulators are made accordance with ANSI standard.

Packages for spool insulators: Export Package.

If you have interest on spool insulators of porcelain insulators, please kindly inform me and we will make best price for you.

Below is detailed technical data for spool insulators of porcelain insulators.

Main Dimensions and Characters
Cat No					SP0011	SP0012	SP0013	SP0014	SP0015
Fig					2	1	2	2	3
Class ANSI					53-1	53-2	53-3	53-4	53-5
Main Dimensions(mm)			H		54	76	81	76	105
			h		27	38	40.5	38	52.5
			D		57	79	76	105	102
			d		45	45	45	73	73
			d1		18	18	18	18	18
			d2		22	24	24	24	24
			R		11	18	11	16	11
Mechanical Failing Load(KN)					9.07	13.6	18.14	20.41	27.22
Minimum Flashover Voltage	Power-Frequency	Dry/KV			20	25	25	25	35
		Wet/KV		Upright	8	12	12	12	18
		Wet/KV		Level	10	15	15	15	25
Weight					0.22	0.55	0.6	1.15	1.2

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
