Spool Insulators ANSI

Name: Spool Insulators ANSI
Brand: all-electronics-online.com
SKU: 826008355
Availability: InStock
Rating: 4.3 (132 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	53-2
Porcelain Insulators:	Spool Insulators
Application:	High-voltage
Material:	Porcelain
Structure:	Shackle Insulator
Type:	B Type Insulator
Color:	Brown
Brand:	Haivol

Product Description

Specifications
1)weight:0.22-1.20kg
2)Certificates:ISO9001:2008
3)best price and short delive

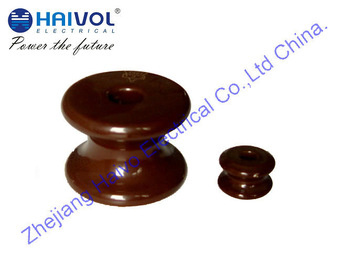

ANSI 53 series Spool Porcelain Insulators
1)weight:0.22-1.20kg
2)Certificates:ISO9001:2008
3)best price and short delive

ANSI 53 series Spool Porcelain Insulators
•Material: Porcelain
•standard:ANSI
•class standard:53-1/53-2/53-3/53-4/53-5
•specification:

Cat NO				A1053	A1054	A1055	A1056	A1057
Fig				2	1	2	2	3
Class ANSI				531	53-2	53-3	53-4	53-5
Main Dimensions (mm)	H			54	76	81	76	105
	h			27	38	40.5	38	52.5
	D			57	79	76	105	102
	d			45	45	45	73	73
	d 1			18	18	18	18	18
	d 2			22	24	24	24	24
	R			11	18	11	16	11
Mechanical failing load (kn)				907	1360	1814	2041	2722
Flashover Voltage	Power-frequency	Dry (kv)		20	25	25	25	25
		Wet	Upright	8	12	12	12	18
		Wet	Level	10	15	15	15	25
Weight(kg				0.22	0.55	0.6	1.15	1.20

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
