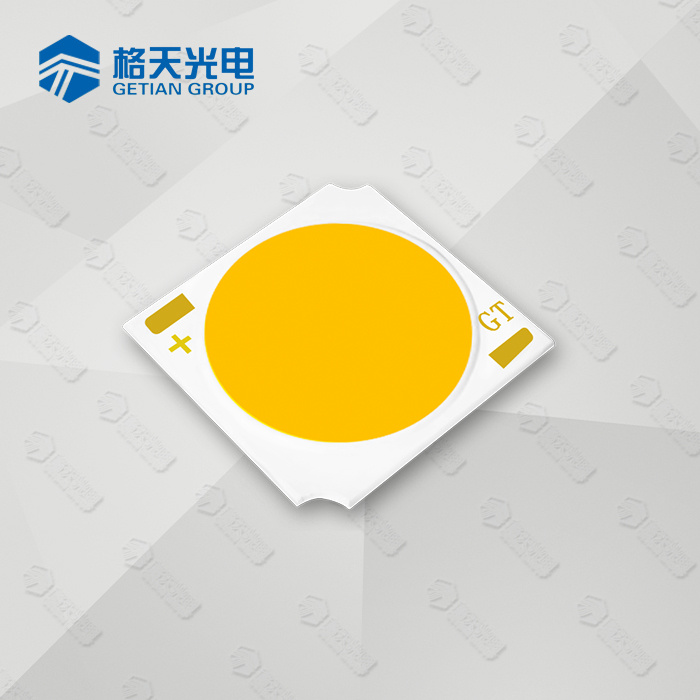

Name: Spot Light Diode 19*19 15W 18W 25W LED COB Chip
Brand: all-electronics-online.com
SKU: 839895925
Availability: InStock
Rating: 4.7 (79 reviews)

Price:	US $ 0.85/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GT-COB1919
Correlated Color Temperature CCT:	2550-5000K
Volt:	34-41V
Beam Angle θ:	120
Current:	450mA
Dimension L*W:	19*19
Diameter Of Luminous Area Φ:	17
Operating Temperature Top:	-40-75
Storage Temperature Tst:	-40-85
Light Efficiency:	140-150lm/W
Color Rendering Index CRI:	70 80 98
LED Packaging Type:	Chip
Chip Material:	InGaN
Beam Angle:	120??
Emitting Color:	Warm White
LED Chips:	Bridgelux
Life:	30000h
Certification:	Lm-80
Power:	15.6W

Product Description

Product description

Getian new COB series (Mirror-surfacealuminum base), large luminous area with circular chip array design, is widely applied to high-end professional commercial lighting with ultimate high light efficacy, CRI and heat conduction. Its light efficacy is up to 170lm/w. CRI can go up to 98 with smooth andcozy light quality which brings great experience of light. This series is optimized for down light, par light, spot light, track light and
projector lamp etc, which effectively replaces 50-500W commercial halogen lamp and incandescent lamp, etc

Product Features

·high luminous efficacy 170lm/w ·
mirror-surface aluminum base ·
high intensity circular chip array ·
RoHS compliant ·
> 30000 hrs ·
super high CRI ·
Mac Adam 3 or 5 steps available
Smooth light quality

Application

·Indoor commercial lighting; ·down light, spot light,par light, etc

tandard Current:450mA Typical Voltage:34.8V Power:15.6W Max Current:900mA Pulse Current:1150mA Thermal Resistance:1.1ºC/W
Color	CCT(K)	CRI		34-41V@450mA LM/W	Part Number	@900mA LM/W
Color	CCT(K)	Min Ra	Min R9	34-41V@450mA LM/W	Part Number	@900mA LM/W
Warm White	2700	80	0	130-140	GT-COB1919W2260015130	110-120
	2700	90	50	100-110	GT-COB1919W2260015100	80-90
	3000	80	0	140-150	GT-COB1919W3260015140	120-130
	3000	90	50	110-120	GT-COB1919W3260015110	90-100
	3500	80	0	150-160	GT-COB1919W35260015150	130-140
	3500	90	50	120-130	GT-COB1919W35260015120	100-110
Natural White	4000	80	0	150-160	GT-COB1919W4260015150	130-140
Natural White	4000	90	50	120-130	GT-COB1919W4260015120	100-110

Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.

Warmly welcome all fields of friends to visit our company and negotiate trade.
