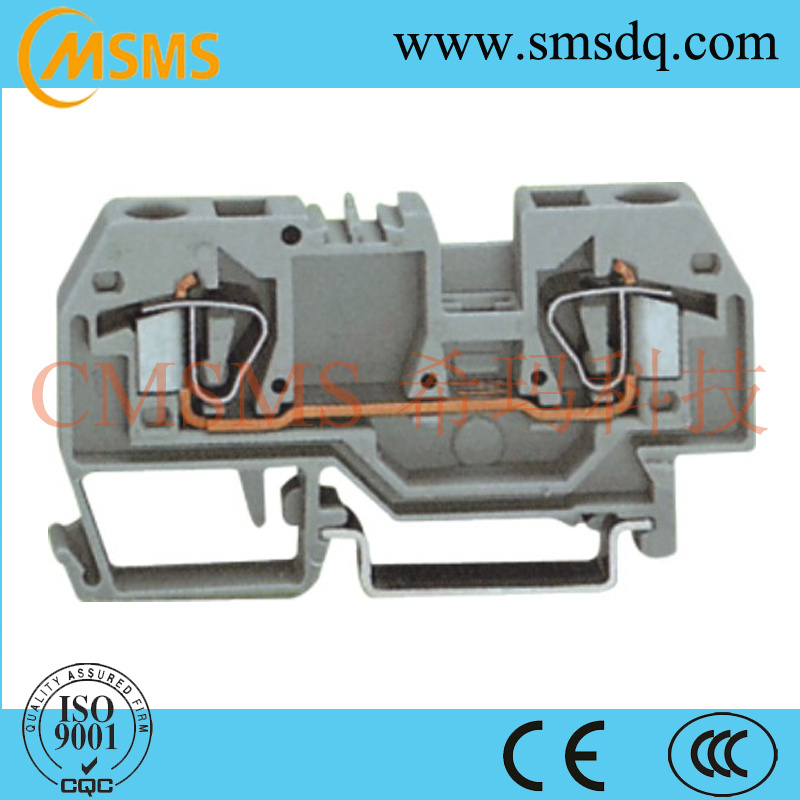

Spring Cage Terminal Block (ST1-4/ ST1-6)

Name: Spring Cage Terminal Block (ST1-4/ ST1-6)
Brand: all-electronics-online.com
SKU: 689074835
Availability: InStock
Rating: 5 (144 reviews)

Price:	US $ 0.1-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST1-4, ST1-4/1X2, ST1-4/2X2, ST1-6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Switchgear:	Switchboard
Application:	Battery
Environmental Protection:	General
Connection Mode:	Bayonet Connection (',Fast)
Shape:	Round
Contact Termination Form:	Pressure Welding

Product Description

These terminal blocks offer a time saving alternative to the popular screw clamp connection. They can be mounted on 35mm DIN rails. Insulated push-in type jumpers offer a quick and shock proof solution for most cross-connection applications.

ITEM NO.	ST1-4	ST1-4/1X2	ST1-4/2X2	ST1-6
Order No.	15007	15008	15009	15013
Dimension
Width x Thickness x Height (mm)	59/6/29	73.5/6/29	86/6/29	74.5/8/32.5
Stripping Length (mm)	9-10	9-10	9-10	12-13
Rated data
Voltage Rating (V)	800V	800V	800V	800V
Current Rating (A)	32A	32A	32A	41A
Wire section (mm² )	4	4	4	6
Wire Range
Rigid wire range(mm² )	0.08-4	0.08-4	0.08-4	0.2-6
Flexible wire rangemm² )	0.08-4	0.08-4	0.08-4	0.2-6

Zhejiang SMS Technology Co., Ltd is a professional manufacturer of solar mounting system, Electric connection & relative products. Our main products are Terminal block, Piercing connector, Connection box, DIN rail, Fan and Ventilate filter, etc. For passed ISO9000 many years, we always concentrate to manufactures of Electric connection and relative products, energetically explore potential markets worldwide. Mostly of our products are approved by CE, RoHS, CCC, UL, etc...And enter to international markets.

At the beginning we enter the electric connection industry, we keep our eye on produce High quality products and offer More competitive products to our customers.

We adopt advanced technologies and high quality material to offer more than 20 series products in electric distribution system, power control system and cable connection, etc...Including SKJ series terminal block, ST1 series spring connector, Insulation piercing connector, DIN rail, Fan & ventilate filter, electric metering box, multipurpose terminal block and relative accessories & tools.

Our products are widely applied in electric & electronic industry, electric equipment, Industrial automation, street lighting and power control system in traffic and transportation, posts & telecommunication, petrol chemical industry, industrial building machine-building, etc.

Zhejiang SMS technology Co., Ltd. Established more than 40 agents and service parters all round China and keep expanding international market. We accept OEM/ODM order from oversea customers. We believe our products and believe customers will chosen our products as their best choice in electric connection field.
