Utility Electrical Co., Ltd. >> Spring DIN Rail Terminal Block 10mm2 57A 1000V St10

Spring DIN Rail Terminal Block 10mm2 57A 1000V St10

Spring DIN Rail Terminal Block 10mm2 57A 1000V St10
Price: US $ 0.59-0.7/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: JUT3-10
Housing: Nylon PA66 UL94 V0
Conductor: Copper Tin Plated
Spring Clip: SUS 301
Wire Size: up to 10mm2
AWG: 24-6
Number Of Pole: 2
Number Of Potential: 1 Only
Type: Single Hole Terminals
Material: Copper Galvanized
Application: Lighting
Character: Spring Clamping
Species: Lever-Operated
Certification: Ce, RoHS
Brand: Utl

Product Description



Spring-clamping DIN rail terminal block JUT3-10
Feed-through terminal block, connection method: Spring-cage connection, number of connections: 2, cross section:0.2 mm² - 10 mm², AWG: 24 - 6, width: 10.2 mm, color: gray, mounting type: NS 35/7,5,  NS 35/15, 57A/1000V.

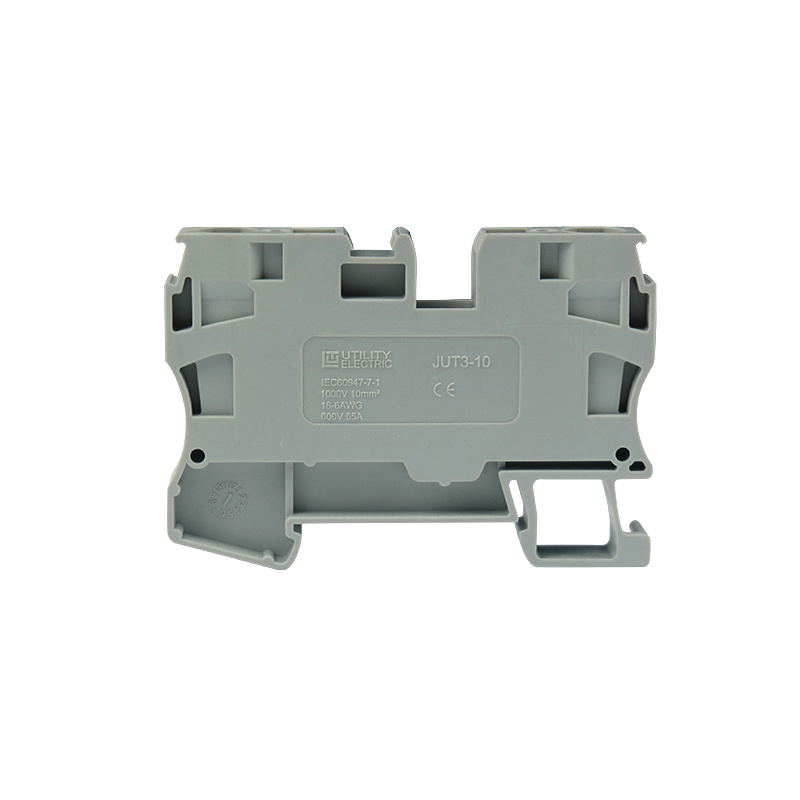

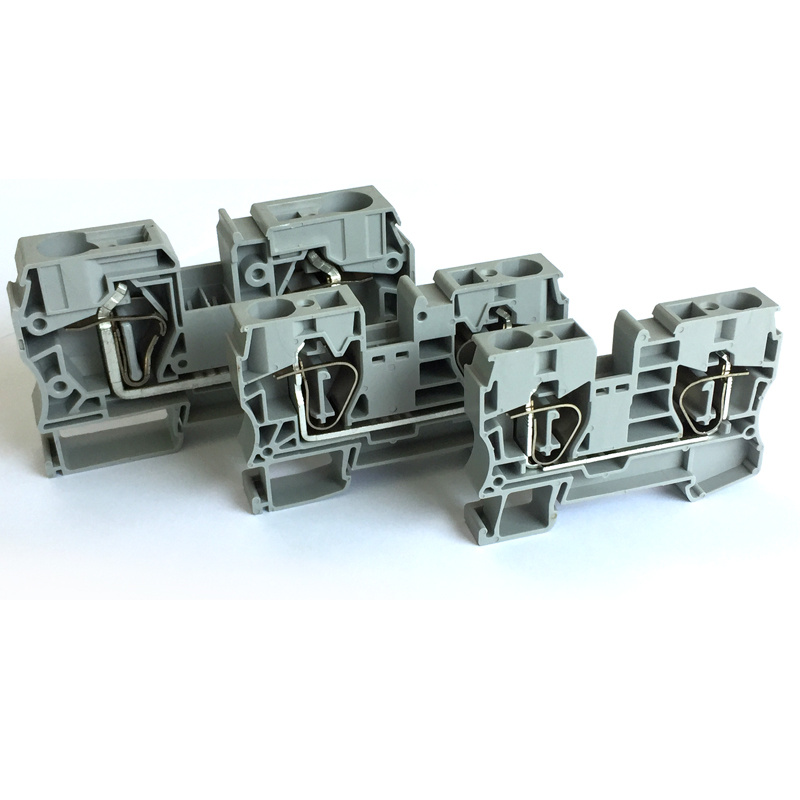

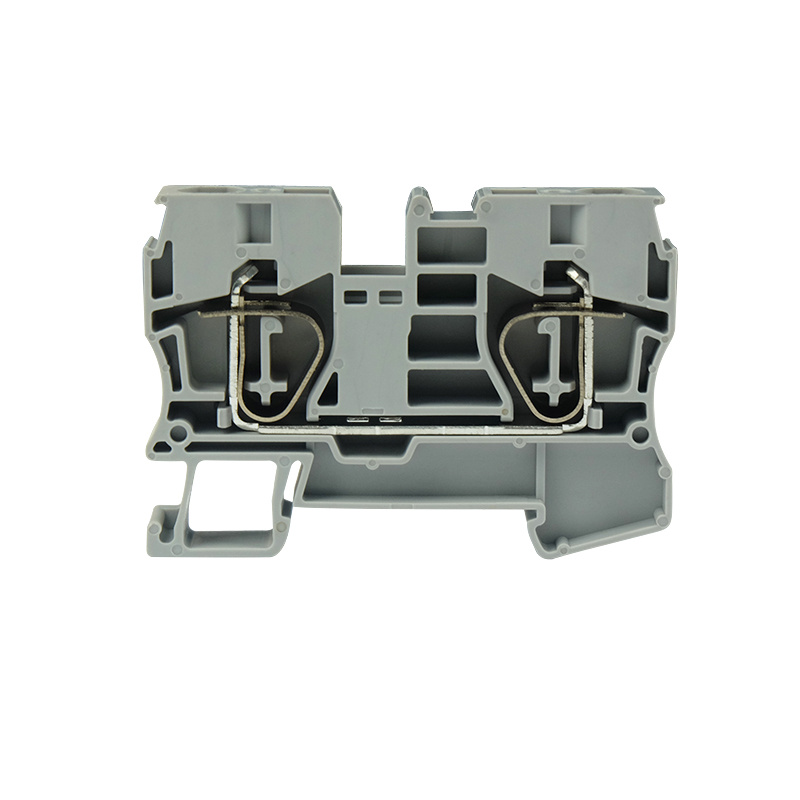

Product Photos:




Parameters:
Material
HousingPA66(Nylon), UL94 V-0
Cover (End plate)PA66(Nylon), UL94 V-0
ConductorPure Copper Nickel plated
SpringStainless Steel

Electrical
Voltage ratedIEC 1000V
Current ratedIEC 57A
Maximum load current65A
Rated surge voltge8 KV

Mechanical
Number of levels1
Number of connections2
Potentials1
Nominal cross sectionMax.10mm2
ColorGrey
InstallationDIN rail-mounted(NS35/7.5)

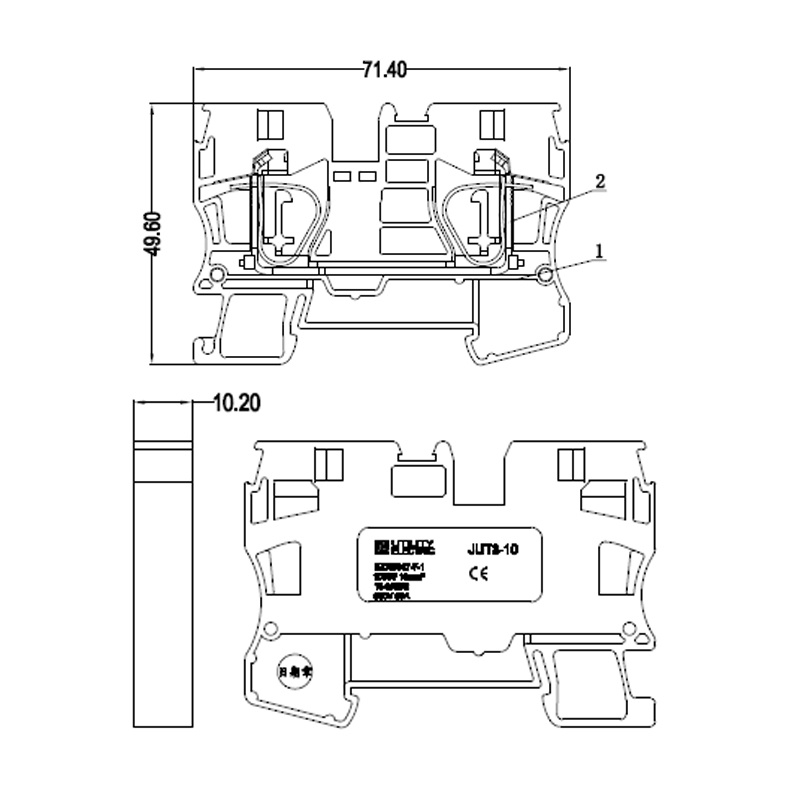

Dimensions
Width10.2mm
End cover width2.2mm
Length71.5mm
Height NS 35/7.550.3mm
Height NS 35/1557.8mm

CertificationCE, CQC




Trading Condition:
1. Low MOQ( please inquiry for more details)
2. Quick lead time ( 3-15 working days)
3. 1 Year Warranty
4. Payment: T/T, W/U, PayPal

Company Infomation:
For more info, recommendation or quotation, please feel free to contact me. We are manufacturer with 30-year experience in providing wiring solution for premium quality in affordable price.

Thank you and looking forward to hearing from you soon!

with Kind Regards,


Dennis Lee

International Sales & Consultant

Utility Electrical Co., Ltd(UTL)
UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
