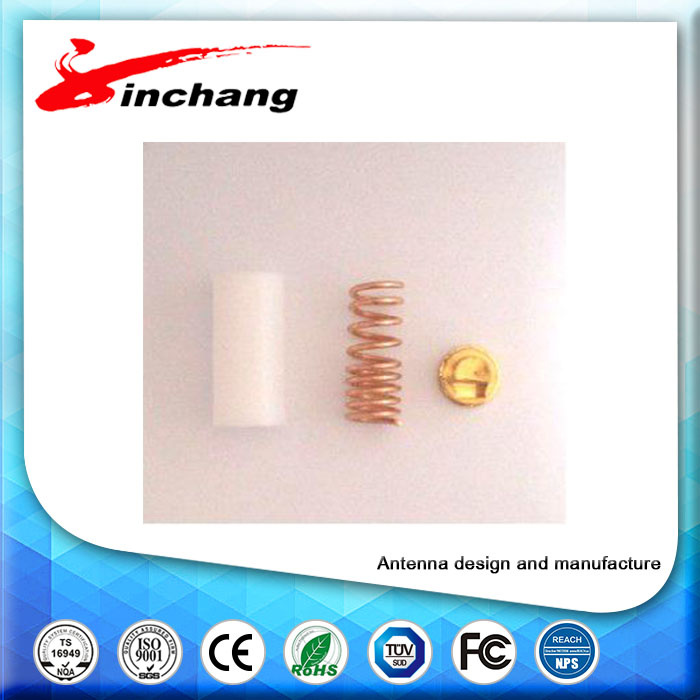

Spring GSM/GPRS Antenna

Name: Spring GSM/GPRS Antenna
Brand: all-electronics-online.com
SKU: 819864295
Availability: InStock
Rating: 4.5 (76 reviews)

Price:	US $ 0.2/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JCG125
Fenquency:	824~960MHz/1710~1990MHz
Usage:	Communication Antenna
Operating Wavelength:	Microwave
Material:	Cu
Directionality:	Omnidirectional Antenna
VSWR:	<1.5
Usage Occasion:	M2m

Product Description

Item		Specifications
GSM Antenna	Frequency Range	824~960MHz/1710~1990MHz
	Polarization	Linear
	Gain	0dBi(Zenith)
	V.S.W.R(min)	<3.0
	Impendance	50Ω
	Radome Material	ABS
	Mounting Method	Screw or Solder
Environmental	Operating Temperature	-40ºC~+85ºC
	Relative Humidity	Up to 95%
	Environmentally Friendly	ROHS Compliant

Jiashan Jinchang Electronic Co., Ltd. is professionally engaged in the R&D, designing, manufacturing, and selling GPS and GSM antenna. It is a high and new technology company of Zhejiang Province and a leading manufacturer in high frequency antenna in China-mainland. Jinchang locates on Hang-Jia-Hu plain, and near Shanghai economic development zone, having a convenient traffic.

Main products: GPS antenna, GSM antenna, WiFi antenna, GPS/GSM combo antenna, GPS/GSM/FM antenna, GPS/GSM/WiFi antenna, all kinds of connectors and cable assemblies.

Jinchang has 12 patents till now. Its antenna serial products acquired new technology prize of Zhejiang Province, and won National New Production Creation Fund. Jinchang has passed ISO9001: 2000 certification while the products passed CE certification, and comply with RoHS directive.

Jiashan Jinchang Electronic Co., Ltd. is professionally engaged in the R&D, designing, manufacturing, and selling GPS and GSM antenna. It is a high and new technology company of Zhejiang Province and a leading manufacturer in high frequency antenna in China-mainland. Jinchang locates on Hang-Jia-Hu plain, and near Shanghai economic development zone, having a convenient traffic.

Main products: GPS antenna, GSM antenna, WiFi antenna, GPS/GSM combo antenna, GPS/GSM/FM antenna, GPS/GSM/WiFi antenna, all kinds of connectors and cable assemblies.

Jinchang has 12 patents till now. Its antenna serial products acquired new technology prize of Zhejiang Province, and won National New Production Creation Fund. Jinchang has passed ISO9001: 2000 certification while the products passed CE certification, and comply with RoHS directive.
