Utility Electrical Co., Ltd. >> Spring Terminal Block Connectors 0.2-4.0mm2

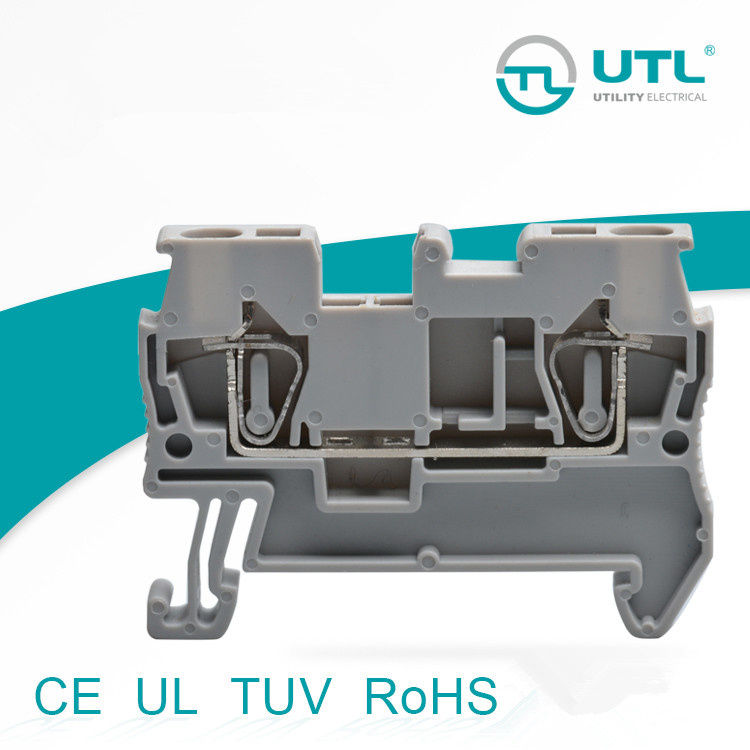

Spring Terminal Block Connectors 0.2-4.0mm2

Spring Terminal Block Connectors 0.2-4.0mm2
Price: US $ 0.01-1/Piece
Min Order: 100/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: JUT3-2.5
AWG: 24-12
IEC: 60947-7-1
Thickness: 5.2
Width: 48.5
Height: 36.5
Application: Transmission of Electrical Signals
Type: DIN Rail Screw Terminal Blocks
Material: Red Copper
Certification: Ce; cUL
Brand: Utl

Product Description

Spring Terminal Block Connectors 0.2-4.0mm2

Model No.JUT3-2.5
Item name JUT3 Spring Type Terminal Series
ColorGrey as photo,or OEM Color
Size TH:5.2 W:48.5 H:36.5
TerminalReturn-puling type spring termial,installed on tracks NS35-U type
Rigid/soft Cable0.2-4.0mm2/0.2-2.5mm2
Conductor Size24-12AWG
Central adaptorUsed at the center of terminal for transverse bridge connection,and screw head with insulation ring,which is divied into:2-digit,3-digit,5-digit and 10-digit
Voltage rating/Current rating800V/31A
Payment termA.Below US$300,western,paypal accepted
B.Above US$300,bank account
CertificateTUV/CE/UL/RoHS/SGS/CQC  approved standard
Logo      Customized logo are available as request
Design ability        We can supply sample,OEM&ODM is welcome

   Service
We produce:Terminal blocks >>cold connectors,crimping machine,push button,indicator light,cable gland,waterproof box
We can supply you all these electric components toghther, saving your time serching

UTL specialized in producing all kind of terminal block.Through persistent research and development, we have grown into a leading manufacturer of this line.We produce several series products for you choose,if you are interesting in any of our product Please feel free to contact us or E-mail us we are happy to give you more details
UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
