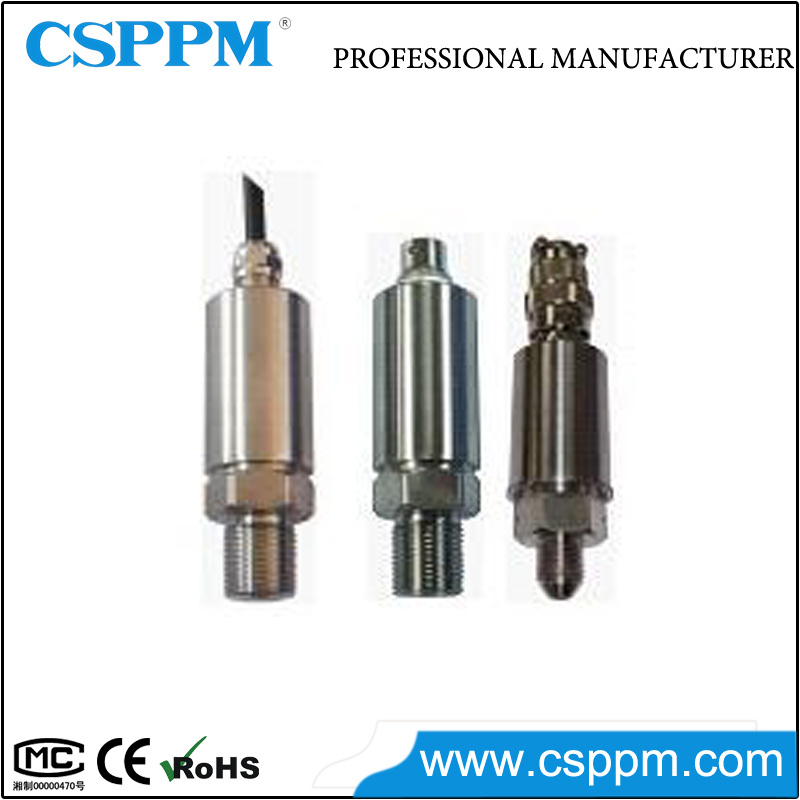

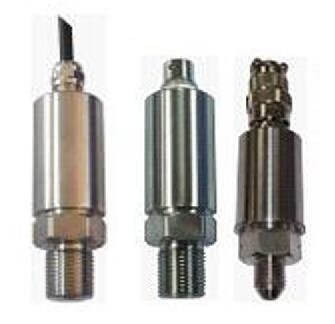

sputtered thin-film pressure transducer PPM-S330

Description

The model PPM-S330 Pressure Sensors have been designed for the high demands of industrial applications. The PPM-S330 adopts thin-film sputtering technology and each sensor was strictly temperature compensated for both zero and span. All wetted parts are manufactured from stainless steel and are fully welded. Customer specific requirement ,OEM, ODM is welcome.

Features

1. High accuracy up to 0.1%FS
2. Resistant to high and low temperature
3. Strong anti-overload ability
4. High long-term stability
5. Long service life

Application

1. Oil fields
2. Engine, Internal combustion engine, diesel engine
3. Aerospace industry
4. Hydraulic system, Hydraulic Press
5. Medical equipment

Specification

Measuring medium	Gas, liquid, steam
Pressure type	Gauge pressure(G), Sealed pressure(S), Absolute pressure(A)
Pressure range	-0.1MPa~0.3MPa…1MPa…10MPa…40MPa…60MPa…70MPa…100MPa…300MPa
Power supply	5VDC(3-12VDC)
Output signal	0-10mV, 0-25mV(2mV/V, 5mV/V)
Nonlinearity	≤0.02% FS, ≤0.04% FS, ≤0.05% FS
Hysteresis	≤0.02% FS, ≤0.04% FS, ≤0.05% FS
Non-repeatability	≤0.1% FS
Accuracy	0.08%FS, 0.1%FS, 0.2%FS
Long-term stability	0.1%FS/year
Medium temp	-40~125ºC/150ºC/175ºC/200ºC/250ºC
Operation temp	-40~+85ºC
Zero temp. drift	≤0.005%FS/ºC, ≤0.01%FS/ºC
FS temp. drift	≤0.008%FS/ºC, ≤0.015%FS/ºC
Response time	≤1ms(10%~90%)
output impedance	1500±50Ω,3300±50Ω,5500±1500Ω
Insulation resistance	≥500 MΩ/100V
Overpressure	200%FS (2 times FS)
Damage pressure	500%FS (5 times FS)
Vibration resistance	5~1000Hz
Shcok resistance	50g, 20ms
Process connections	M20×1.5, or other process connections on request
Sealing method	Double sealing rings, sealing cone, end face sealing
Materials	Wetted parts: 17-4PH Non-wettedparts: stainless steel 316, 304
Ingress protection	IP65, IP68
Electrical connections	Cable connection, Circular connector M12 x 1

Dimensions in mm

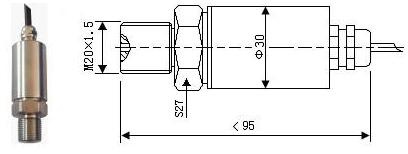

PPM-S330A (cable connection)

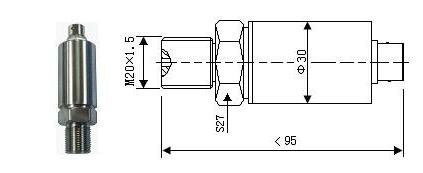

PPM-S330B (Circular connector M12 x 1)

Order information

Model PPM-S330 Pressure Transmitter
	Code	Pressure type
	G	Gauge pressure
	S	Sealed pressure
	A	Absolute pressure
		Code	Pressure ranges
		M	0~ X MPa
		K	0~ X KPa
			Code	Accuracy
			1	±0.5%FS
			2	±0.25%FS
			3	±0.1%FS
			4	0.075%
				Code	Output signal
				V0	mV
				A1	4~20mA
				V1	0~5V DC
				V2	1~5V DC
				V3	0.5~4.5V DC
				V4	0~10V DC
				A0	Others
					Code	Operation temperature
					T1	-10~70ºC
					T2	-25~85ºC
					T3	-30~125ºC
					T4	-45~150ºC
					T5	-10~175ºC
					T0	Others
						Code	Power supply
						D1	5VDC
						D2	10VDC
						D3	24VDC(9-32)VDC
						D0	Other
							Code	Process connection
							M1	M20x1.5
							M2	M14 x1.5
							M3	M10x1
							G1	G1/4
							G2	G1/2
							N1	1/4NPT
							N2	1/2NPT
							F0	Other
								Code	Electrical connectiong
								W1	Cable outlet
								W2	DIN43650
								W3	Circular connector M12 x 1
									Code	Other
									P1	Commom
									P2	Non-cavity diaphragm
