Square E Core Inductor

Name: Square E Core Inductor
Brand: all-electronics-online.com
SKU: 823302175
Availability: InStock
Rating: 4.4 (66 reviews)

Price:	US $ 0.2-0.4/Piece
Min Order:	2000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LE-TR111400-001R-4
Core:	Different Type Core Avaliable
Type:	Choke Inductor
Structure:	Inductive Choke
Range Of Application:	High Frequency
Packaging Form:	Carton
Brand:	XP Power

Product Description

Environmental  RoHS compliant, halogen free
Terminations  RoHS compliant tin-silver over copper
Ambient temperature  -40°C to +125°C with Irms current
Maximum part temperature  +145°C (ambient + temp rise).
Storage temperature  Component: -40°C to +125°C.Tape and reel packaging: -40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)  +5 to +70 ppm/°C
Moisture Sensitivity Level (MSL)  1 (unlimited floor life at <30°C / 85% relative humidity)
Mean Time Between Failures (MTBF)  1 billion hours

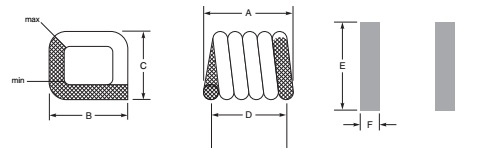

P/N	A	B	C	D	E	F
XP-0806-5N5	1,346 ±0,102	1,829 ±0,254	1,397 ±0,102	0,962	2,6	0,51
XP-0806-6N0	1,295 ±0,102	1,829 ±0,254	1,397 ±0,102	1,02	2,6	0,51
XP-0806-8N9	1,626 ±0,152	1,829 ±0,254	1,397 ±0,102	1,32	2,6	0,51
XP-0806-12N	1,930 ±0,152	1,829 ±0,254	1,397 ±0,102	1,63	2,6	0,51
XP-0806-16N	2,286 ±0,152	1,829 ±0,254	1,397 ±0,102	1,96	2,6	0,51
XP-0806-19N	2,591 ±0,152	1,829 ±0,254	1,397 ±0,102	2,29	2,6	0,51

XP-0807-6N9	1,295 ±0,102	1,829 ±0,254	1,524 ±0,254	1,02	2,6	0,51
XP-0807-10N	1,626 ±0,152	1,829 ±0,254	1,524 ±0,254	1,32	2,6	0,51
XP-0807-11N	1,549 ±0,152	1,829 ±0,254	1,524 ±0,254	1,24	2,6	0,51
XP-0807-14N	1,930 ±0,152	1,829 ±0,254	1,524 ±0,254	1,63	2,6	0,51
XP-0807-17N	2,286 ±0,152	1,829 ±0,254	1,524 ±0,254	1,96	2,6	0,51
XP-0807-22N	2,591 ±0,152	1,829 ±0,254	1,524 ±0,254	2,29	2,6	0,51

XP-0908-8N1	1,473 ±0,152	2,134 ±0,152	1,829 ±0,203	1,12	2,8	0,64
XP-0908-12N	1,854 ±0,152	2,134 ±0,152	1,829 ±0,203	1,45	2,8	0,64
XP-0908-14N	1,549 ±0,152	2,134 ±0,152	1,829 ±0,203	1,24	2,8	0,64
XP-0908-17N	2,210 ±0,152	2,134 ±0,152	1,829 ±0,203	1,83	2,8	0,64
XP-0908-22N	2,565 ±0,152	2,134 ±0,152	1,829 ±0,203	2,18	2,8	0,64
XP-0908-23N	2,235 ±0,152	2,134 ±0,152	1,829 ±0,203	1,90	2,8	0,64
XP-0908-25N	2,972 ±0,152	2,134 ±0,152	1,829 ±0,203	2,57	2,8	0,64
XP-0908-27N	2,972 ±0,152	2,134 ±0,152	1,829 ±0,203	2,57	2,8	0,64
