| Prod Model: |
KA-S60B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Two Years |
| Samples Delivery Time: |
Within 2 Days |
| Bulk Order Delivery Time: |
Within 25 Days |
| Usage: |
All Kinds of Lamp |
| Type: |
Infrared Sensor Switch |
| Principle: |
Infrared |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Application: |
Corridor, Warehouse, Garage, Toilets etc. |
Product Description

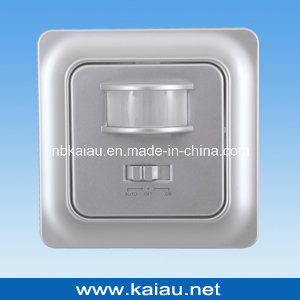

KA-S60B Square Type Wall Hidden Sensor Switch specifications:1) Power source: 90V/AC~240V/AC
2) Detection distance: 10± 2m max (22º C)
3) Detection range: >140°
4) Light-control: 3lux~1000lux (adjustable)
5) Time-delay: 10± 3sec~10± 2min(adjustable)
6) Resistive load: 300W(110V/AC~130V/AC); 500W (220V/AC~240V/AC)
7) Power frequency: 50/60 Hz
8) Installation height: 0.4m~1.8m
9) Power consumption: 0.45W (static 0.1W)
10) Detection motion speed: 0.6~1.5m/s
11) Sound control sensitivity: 30dB~90dB(adjustable)
12) Working temperature: -10~+40º C
KA-S60B function:1) Multi-function: It has ON, OFF, light-control, high sensitive sound control, long distance, wide range infrared detection functions;
2) Practicality: By the light-control it can control the sound-control and the ambient-light when the sensor works. It can work in various ambient-light day and night, it also can work only in low ambient-light; Time-delay can be adjusted by yourselves in stipulated range; Infrared induction and sound control sensitivity can be controlled by yourselves;
3) Good appearance: The surface design is facility, comely but not losing generosity, the style is elegance, it will not have accidented feeling after installation;
4) Wide working voltage: 90V/AC~240V/AC 50/60Hz. You will not be worried when you go all over Europe carrying LX2200.
5 ) Convenient installation: Two-installation modes for your selection. It can be installed in circular or quadrate junction box; You could fix the sensor with two screws on the junction box in circular one, also fix it with special installation shelf on sensor. In a word, whether the junction box installation orientation is true, LX2200 makes the installation flatly;
6) Multi-working mode: You can select ON, OFF, infrared detection, infrared detection +sound control mode, if you select infrared detection + sound control mode, the lamp will be on automatically when you knock at the door or say "I am coming back" at night you come back home, it will make your home warmer and more romantic. Correct moving orientation incorrect moving orientation
KA-S60B introduction:KA-S60B is a new generation infrared sensor developed by our long-term market forecast and investigation. It has strong stability, it gathers multi-function, practical, good appearance, wide working voltage, convenient installation, detection indication, multi-working mode, etc. It adopts SMT technique. It is accorded with European standard, it is suitable for automatic controlfor home, hotel and enterprise.

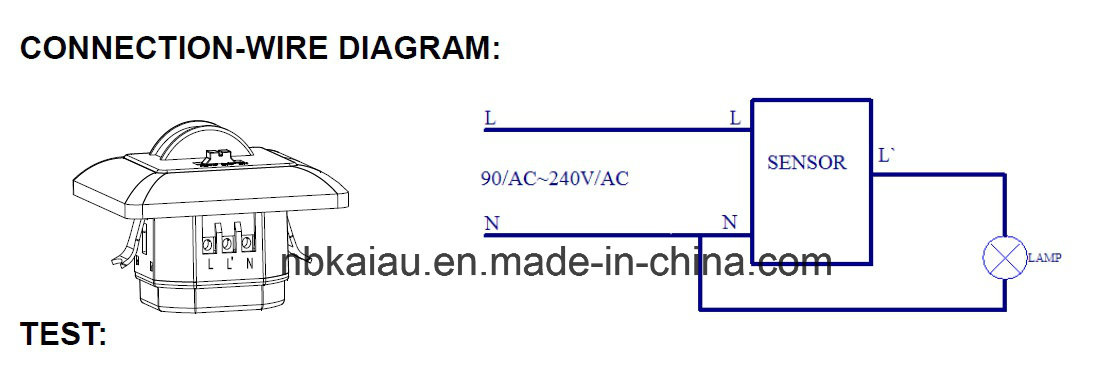

KA-S60B Wiring Diagram:

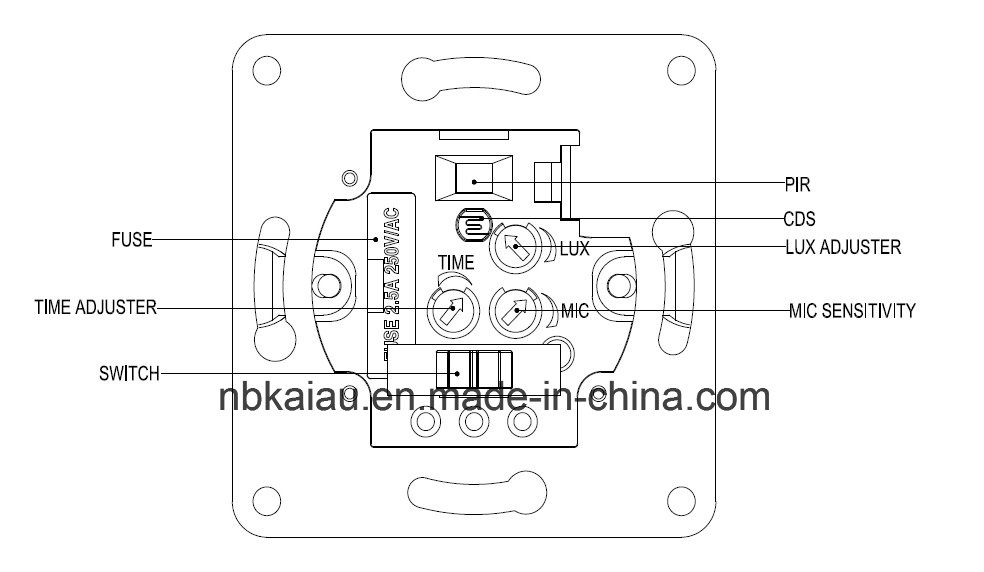

KA-S60B Components description:
