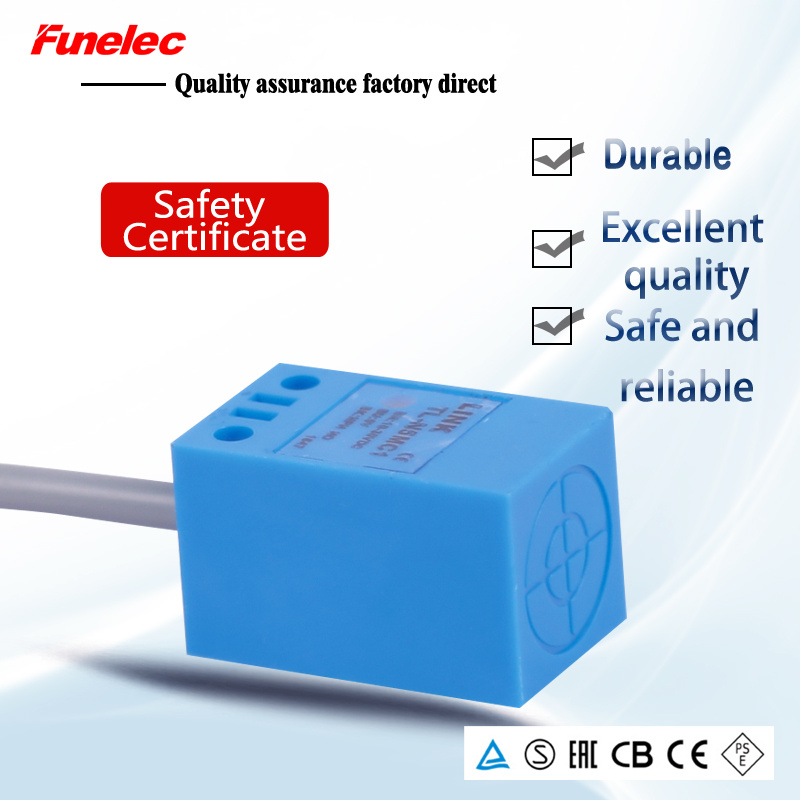

Squared Inductive Proximity Flush Type Sensor NPN No
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
FPL-05 |
| Material: |
Stainless Steel |
| Voltage Type: |
DC Voltage |
| Rotection Degree: |
IP 67 |
| Mounting: |
Flush / Non-Flush |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Proximity Switch |
| Principle: |
Inductive |
| Wires: |
NPN/PNP 3 Wire, Two Wire |
| Application: |
Position Sensor, Speed Sensor |
Product Description
SN04 Proximity Sensor/ inductive proximity switch
Detailed Product Description
Features:
1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6) Wide voltage range
7) Dustproof, vibration-proof, waterproof and oil-proof
8) With short-circuit protection and inverted connecting protection
9) Service life up to one million
10) Adopts envelop glue, temperature resist, oil-proof colophony in it | Plastic square shape inductive sensors FPL-05 series |
| | Features
Non contact detection, safe and reliable;
ASIC design;
Perfect choice for metallic targets detection; |
| Part number |
| NPN NO LE17SF05DNO LE17SN08DNO | PNP NO LE17SF05DPO LE17SN08DPO |
| NPN NC LE17SF05DNC LE17SN08DNC | PNP NC LE17SF05DPC LE17SN08DPC |
| Technical specifications |
| Mounting Flush Non-flush | Leakage current [lr] ≤10mA |
| Rated distance [Sn] 5mm 8mm | Circuit protection Short-circuit, overload and reverse polarity |
| Assured distance [Sa] 0…4mm 0…6.4mm | Output indicator Yellow LED |
| Dimensions 17 mm *17 mm *28 mm | Ambient temperature -25ºC…70ºC |
| Output NO/NC(depends on part number) | Ambient humidity 35-95%RH |
| Supply voltage 10…30 VDC | Switching frequency [F] 700 Hz 500Hz |
| Standard target Fe 17*17*1t Fe 24*24*1t | Voltage withstand 1000V/AC 50/60Hz 60s |
| Switch-point drifts [%/Sr] ≤±10% | Insulation resistance ≥50MΩ(500VDC) |
| Hysteresis range [%/Sr] 1…20% | Vibration resistance 10…50Hz (1.5mm) |
| Repeat accuracy [R] ≤3% | Degree of protection IP67 |
| Load current ≤100mA | Housing material PBT |
| Residual voltage ≤2.5V | Connection type 2m PVC cable |
| Dimensions | Wiring diagram |
Our Services
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively
FAQ
Q: If I'm interested in your product when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your product seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our product are high quality customized.I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is the quality of your product?
A:Of course!We also think sample order is the best way to build the trust.Please send the enquiry to us and get the sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Pls feel free to contact us, we will be happy to provide you with the best quality products and personalized service!
