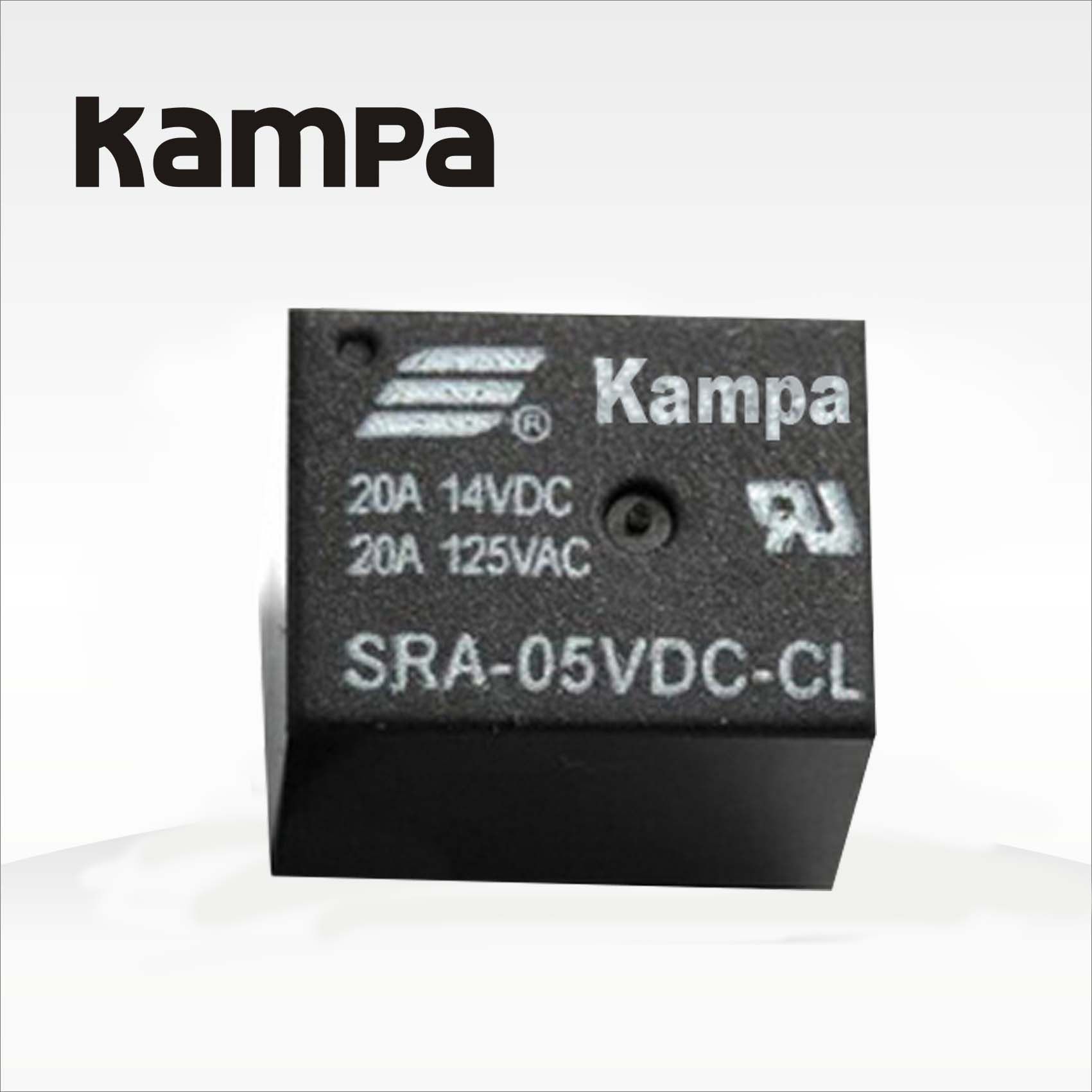

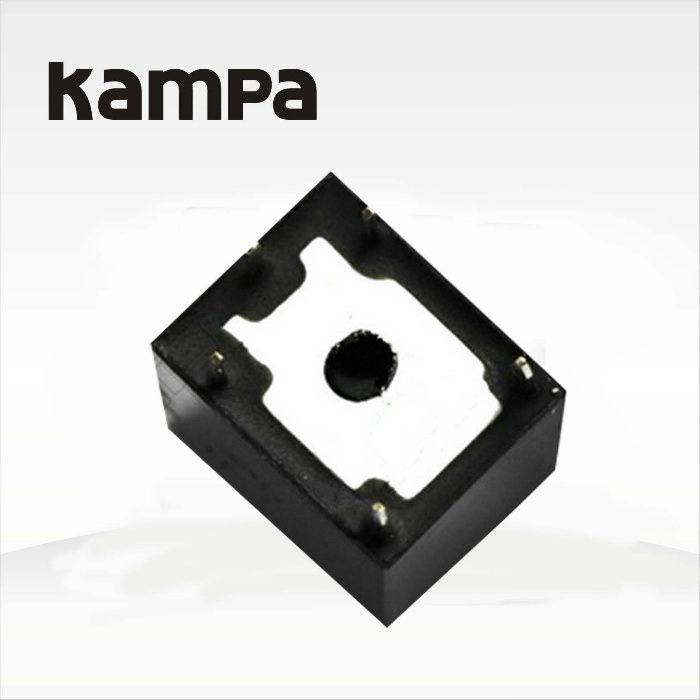

Sra-05VDC-Cl 20A 125V 5 Pins Spdt PCB Electromagnetic Relay

Name: Sra-05VDC-Cl 20A 125V 5 Pins Spdt PCB Electromagnetic Relay
Brand: all-electronics-online.com
SKU: 818318005
Availability: InStock
Rating: 5 (50 reviews)

Price:	US $ 0.158/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SRA-05VDC-CL
Contact Type:	2z
Contact Overload:	N/C:15A 14VDC,10A 120VAC.N/O:20A 14VDC.10A 120VAC
Rated Coil Power:	0.36W(0.54W)
Coil Specification:	DC3~24

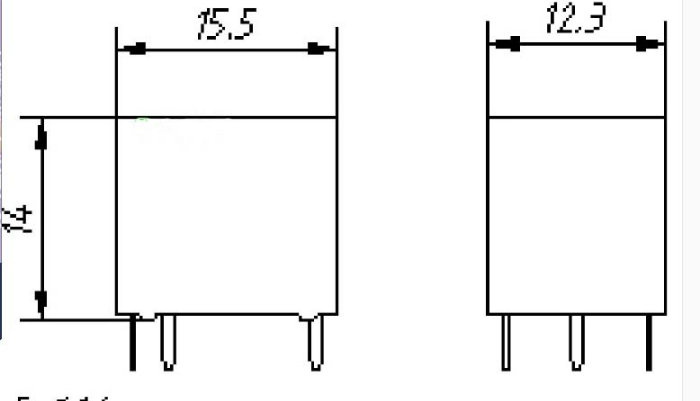

Dimension:	15.5X12.3X14mm

Product Description

Coil Sensitivity	Coil voltage code	Nominal Voltage (VDC)	Nominal Voltage(VDC)	Coil Resistance(Ω)+10%	Power consumption (W)	Pull-In voltage (VDC)	Drop-out voltage (VDC)	Max-allowable voltage (VDC)
High Sensitivity	03	3	200	15	abt.0.6	75%Max	10%,Min	110%
	05	5	120	42
	06	6	100	60
	09 12	9 12	66.7 50	135 240
	24	24	25	960
Standard Sensitivity	03 05	3 5	267 160	11.25 31.25	abt.0.8	75%Max	10%Min	110%
	06	6	133.4	45
	05	9	100	90
	09	12	66.7	180
	18	18	44.4	405
	24	24	33.4	720

Item	SRA
Contact capacity Resistance Load(cosΦ=1) Inductive Load (cosΦ=0.4 L/R=7maec	N/C::15A 14VDC,10A 120VAC N/C:20A 14VDC,10A 120VAC 6A,14VDC
Rated carrying current Max Allowable voltage	25A/hr 250VAC 30VDC
Max Allowable current Contact material	20A AgSnO2
