| Prod Model: |
SRC032-4 |
| Od: |
32mm |
| Pin Number: |
2,3,4 |
| Current Of Each Wire: |
2pin 2A/Pin +2pin 14A/Pin |
| Contact Material: |
Precious Metal |
| Voltage: |
240VDC-240VAC |
| Speed: |
0-400rpm |
| Working Temperature: |
-20c~+80c |
| Housing Material: |
Engineering Plastic |
Product Description

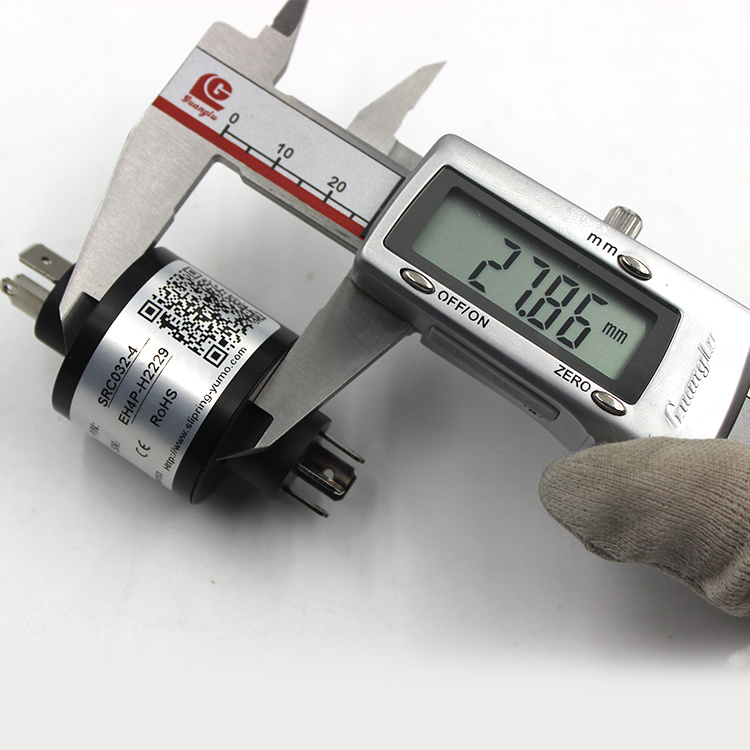

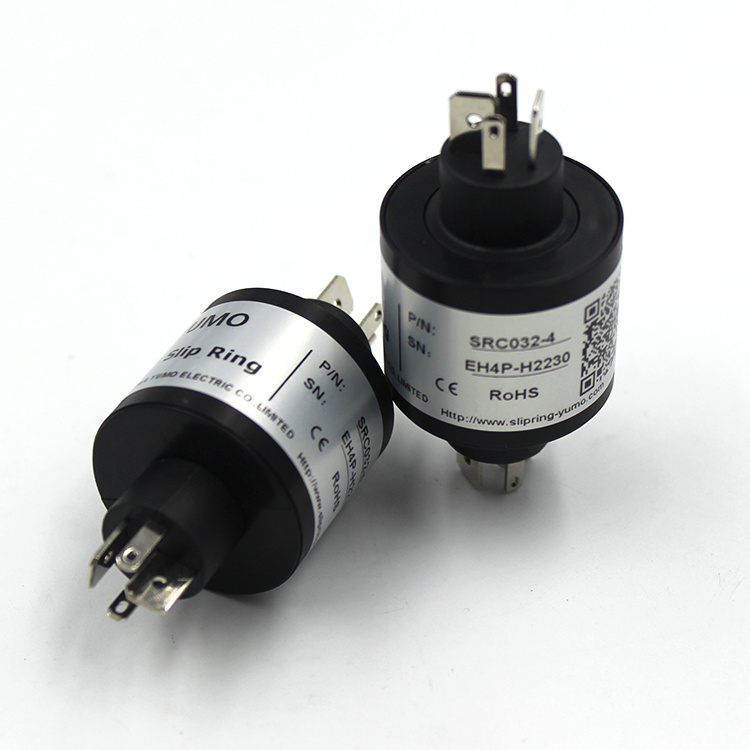

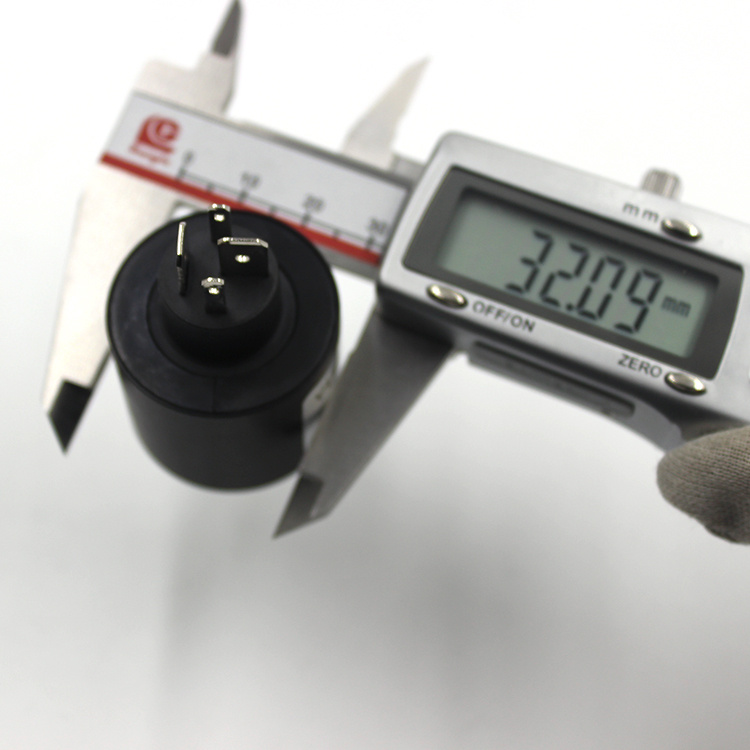

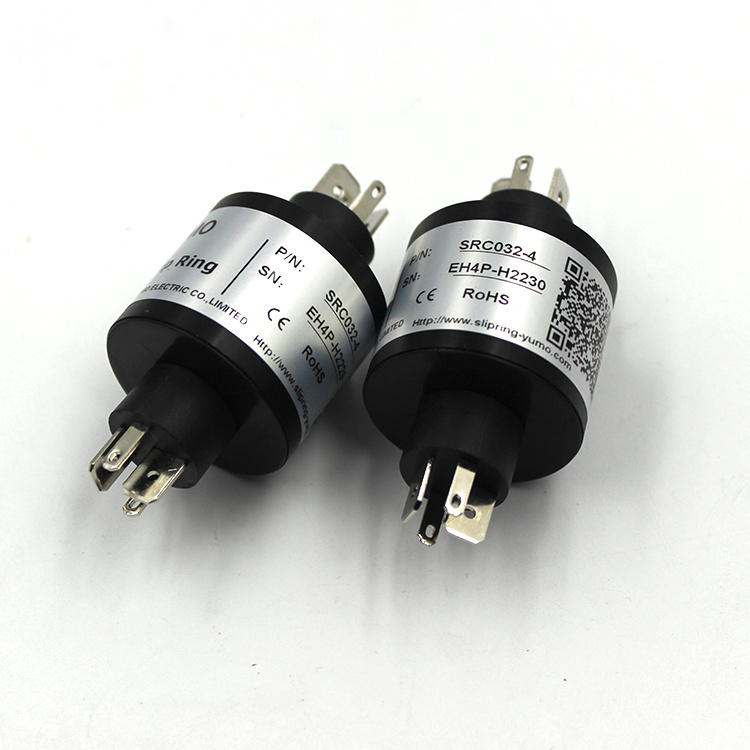

SRC032-4 OD 32mm 4 pin connection slip ring
Product Description
Our slip ring products are widely used in a variety of smart devices ,among diverse work rotating electrical systems: such as medical equipment, chemical reactor equipment, lifting gear equipment, CNC machinery equipment, wind power generation equipment , smart appliances, optical communication equipment, wire stranding equipment, robotics, robotic arm, the revolving door, model aircraft, aviation, automobile, shipbuilding, machinery, packaging machinery, lighting display equipment, recreational facilities, mining equipment. Our company has long provided conventional slip ring products and special slip ring for the development of well-known manufacturers of domestic production.
Featrues
- Easy for electrical connection, carrying bigger current
- Good replacement of Mercury slip rings
- SRC Pin connection slip rings are precision non-mercury ,high-efficiency for Industrial production .
Typical Applications
- Medical equipment
- Production line, Industry process equipment
| Electrical Date |
| Rated voltage | 240VDC/240VAC |
| Dielectric Strength | 500VAC@50Hz, 60S |
| Insulation Resistance | 1000MΩ/500VDC |
| Electrical Noise | <0.01Ω |
| Mechanical Data |
| Rated speed | 0~400rpm |
| Working temperature | -20C~+80C |
| Contact material | Precious Metals |
| Housing Material | Engineering Plastics |
Specification List
| Part no. | No. of circuits | Rated Current (Amps) | Outline Dimensions |
| 2 | 14 | OD*Length | Pin Thicknss* Width |
| SRC032-2 | 2 | - | 2 | 32*28 | 0.8*6.3 |
| SRC032-3 | 3 | - | 3 | 32*28 | 0.8*6.3 |
SRC032-4 | 4 | 2 | 2 | 32*28 | 0.8*6.3
0.8*2.8 |
