Sst Capacitive Pressure Sensor with High Accuracy

Name: Sst Capacitive Pressure Sensor with High Accuracy
Brand: all-electronics-online.com
SKU: 684535741
Availability: InStock
Rating: 4.5 (80 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WNK05
Usage:	Industrial
Pressure Reference:	Gauge, Differential, Absolute, High Static
Compensation Temperature:	-20~70ºC
Accuracy Level:	0.1% 0.2% 0.5%
Annual Stability:	0.2% of Full Scale
Measuring Medium:	Liquid, Gas, Steam

Product Description

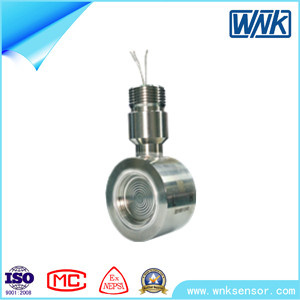

WNK05 Capacitive Pressure Sensor

Metal Capacitive Pressure Sensor has special sealing method. In the closed chamber it integrates a temperature diode which provide real-time temperature parameters for digital compensation circuit after the sensor. Thus, the sensor provide accurate temperature compensation. Accuracy level of transmitters manufactured through this method normally will be up to 0.1%.

WNK05 is widely used in Chemical, Power, Steel and other industrial field.

Sensor Technical Property
Accuracy Level:	0.1% 0.2% 0.5%
Annual Stability:	0.2% of Full Span
Temp. Range:	(-40~+104)ºC
Temp. Influence:	Zero error is ±0.25%/10ºC of span
Span Error:	±0.5%/10ºC of span

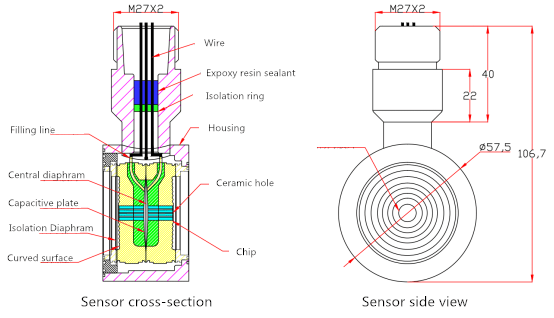

Sensor Cross-section and Side View - WNK05 Capacitive Pressure Sensor

Model No.	Product Specification
WNK05	Capacitive Pressure Sensor
code	Pressure type
G	Gauge
D	Differential
A	Absolute
H	High Static Pressure
Code	Sensor Rated Range
2	0-0.16~1kPa
3	0-1~6kPa
4	0-6~40kPa
5	0-40~200kPa
6	0-0.16~1MPa
7	0-0.4~2.5MPa
8	0-1.6~8MPa
9	0-4~20MPa
0	0-6~40MPa
Code	Accuracy
A	0.1%
B	0.2%
C	0.5%
Typical Model:WNK05D2A

Why Choose us?

1. We are professional manufacturer with own R&D and sales team, with more than 12 years producing experience in transmitters & sensors.
2. We have strict quality control system, each set product we do temperature compensation and aging test before shipment, so the quality is guaranteed.

Delivery
5~10 days after order confirmed
