St 2.0/3.0mm Singlemode Fiber Connector with Different Color Boots

Name: St 2.0/3.0mm Singlemode Fiber Connector with Different Color Boots
Brand: all-electronics-online.com
SKU: 786769685
Availability: InStock
Rating: 4.3 (29 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST
St Fiber Optic Connector:	Single-Mode, Multi-Mode
Boot Size:	0.9mm 2.0mm 3.0mm

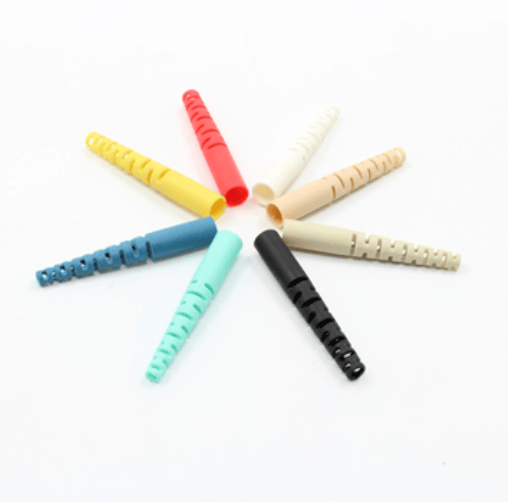

Boot Color:	Blue, Yellow, Black, Red, Green, White
St Ferrule:	125.Um 127um
Structure:	ST
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Transmission Medium:	Single-Mode, Multi-Mode
Brand:	Koc

Product Description

APPLICATIONS
Instrumentation
Data processing networks
Premise installations
Local Area Networks (LANs)

FEATURES
High precision alignment
Boots in a variety of colors
Ferrule end surface predomed
Nickel plated brass body
Free-floating ceramic ferrule
Bayonet style housing for easy termination
Low insertion loss and back reflection loss

STANDARDSRDS
All components of/and the final product are designed and tested to conform the requirements of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801 2ND ED., EN 50173, JIS C5973 F04, ICEA-596, IEC60793-2-10 A1a, ITU-T G. 651 or IEC60793-2-10 A1b or ITU-T G. 652 (depending on fiber), Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL1666/901 (UL-cable) and EIA/TIA455.

AVAILABILITY
The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Housing kits without ferrule are available.

	Single mode	Multimode
Insertion Loss	≤0.30dB	≤0.30dB
Return Loss	≥50 dB (PC)	>30dB
Durability	<0.20 dB typical change, 1000 matings
Operating Temperature	-20 to + 70°C	-20 to + 70°C
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1.0μm	125μm, Concentricity: ≤3μm
	125.3+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: ≤3μm
	125.5+1/-0μm, Concentricity: ≤1.0μm	128μm, Concentricity: ≤3μm
	126.0+1/-0μm, Concentricity: ≤1.0μm

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
