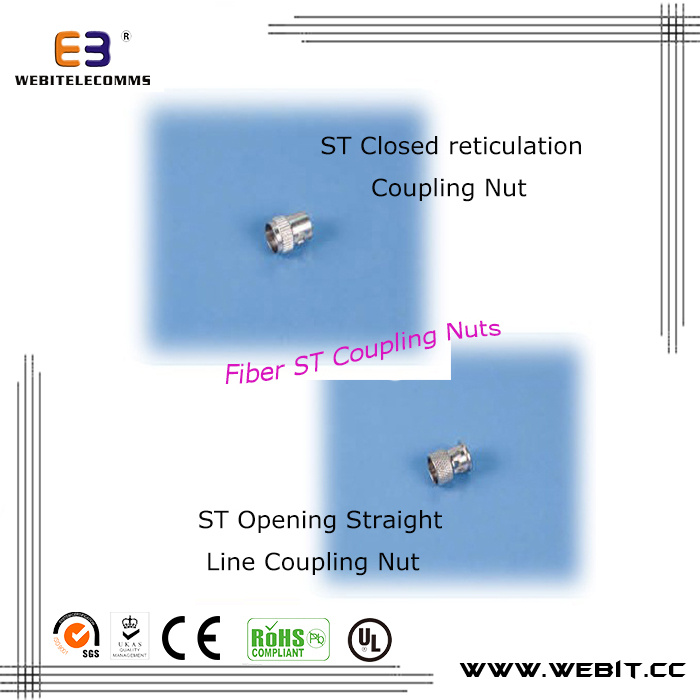

St Closed Reticulation Coupling Nut; St Opening Straight Line Coupling Nut

Name: St Closed Reticulation Coupling Nut; St Opening Straight Line Coupling Nut
Brand: all-electronics-online.com
SKU: 692601262
Availability: InStock
Rating: 4.6 (25 reviews)

Price:	US $ 0.005/Piece
Trade Terms:	FOB
Min Order:	10000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST Coupling Nut
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White/Red/Purple Red/ Yellow
Diameter:	2.0/3.0mm
Insertion Loss:	0.25db
Return Loss:	65 Db
Operating Temperature:	-40~80°c
Type:	St Coupling Nut
Structure:	ST
Transmission Medium:	Sm & Mm
Ferrule Endface:	Upc/APC
Number Of Cores:	Sx/Dx

Product Description

Product Description
ST Coupling Nut

Features/Benefits:
Available in 3mm, 2mm, 900 μ M
Termination Procedures: Prep cable end, Epoxy-Crimp-Polish
Standard packaging: 100pcs Bulk packed, Special packaging available
By request
Connector versions available for: 3mm, 2mm Cable, 900 μ M Buffered Fibre,
Simplex & Duplex
Available in Blue (single mode), Beige (multimode) Green (APC)
SPECIFICATIONS:
Insertion Loss: Single mode l≤ 0.20dB & Multimode ≤ 0.25dB
Return Loss: PC ≥ 50 dB, UPC ≥ 55 dB & APC ≥ 65 dB
Durability <0.20 dB typical change, 1000 mating
Operating Temperature: -40 to + 80º C

--Fiber Optic Telecommunications
--FTTH (Fiber To The Home)
--CATV & CCTV
--Data Processing Networks
--Telecom Equipment
--Local Area Networks

About the SC Cconnector fiber optic connector
--Good durability
--Good temperature performance
--Easy installation
--Competitive price

Insertion loss	SM	≤0.20 dB
Insertion loss	MM	≤0.25dB
Return loss	P C	≥50 dB
	UPC	≥55 dB
	APC	≥65 dB
Durability	<0.20 dB typical change, 1000 mating
Ferrule hole sizes	SM: 125.0+1/-0um	concentricity:≤1.0um
	125.5+1/-0um	≤1.0um
	126.0+1/-0um	≤1.0um
	MM:125 um	concentricity:1≤3 um
	127 um	≤3 um
	128 um	≤3 um
Operating temperature	-40~80°C
