St Series Servo Motors (0.2kw-3.8kw) with 220V/CE and UL Certificates
| Price: |
US $ 105-270/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
60ST-L006030A---------130ST-L150025A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insulation Class: |
F |
| Frame Size: |
H60-130 |
| Rated Power: |
0.2kw-3.8kw |
| Frequency: |
50Hz |
| Rated Voltage: |
220V |
| Protection Class: |
IP55 |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Protection Type |
| Starting Mode: |
Direct on-line Starting |
| Species: |
Servo Motor |
| Certification: |
CE,UL |
| Brand: |
Hongma |
Product Description

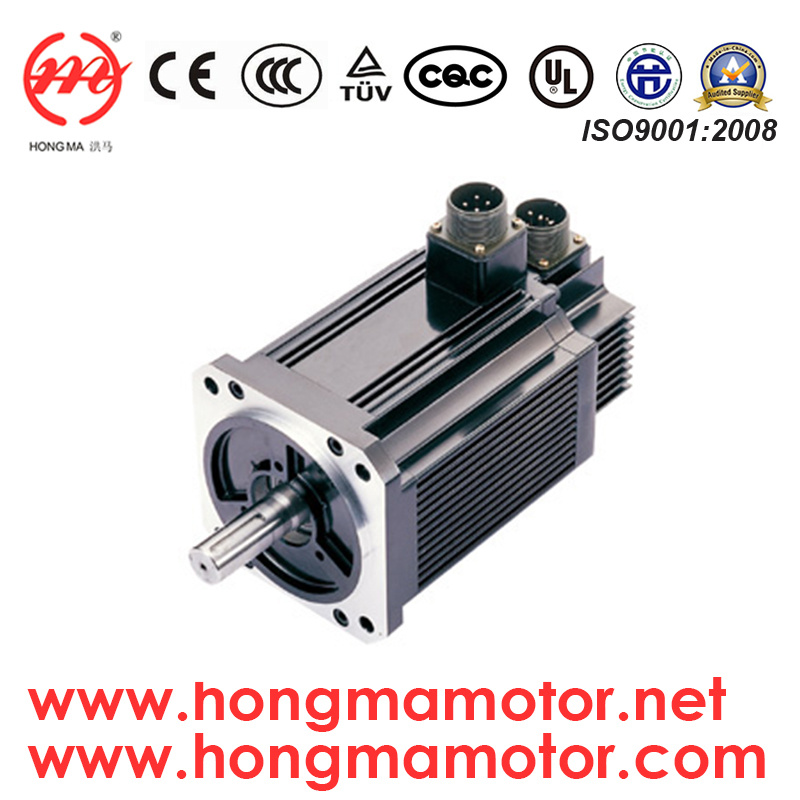

ST Series Servo Motors
Ultrahigh intrinsic coercively, high temperature rare earth permanent, magnet material, strong resistance to magnetic energy.
Using electromagnetic design optimization, almost with the entire speed, range constant torque output, Sinusoidal magnet field design, smooth low-speed torque high overload, capability, Class F insulation, IP55 protection structure, environmental applicability, safe and reliable use.
Technical Data| Frame size | 60ST-L00630A | 60ST-L01330A | 60ST-L01930A | 80ST-L01330A | 80ST-L02430A | 80ST-L03330A | 90ST-L02430A | 90ST-L03520A | 90ST-L04025A |
| Rated Voltage(3phase) | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
| Rated Power(kw) | 0.2 | 0.4 | 0.6 | 0.4 | 0.75 | 1 | 0.75 | 0.73 | 1 |
| Rated Torque(N.m) | 0.6 | 1.3 | 1.9 | 1.3 | 2.4 | 3.3 | 2.4 | 3.5 | 4 |
| Max Torque(N.m) | 1.911 | 3.8 | 5.73 | 3.9 | 7.2 | 9.9 | 7.2 | 10.5 | 12 |
| Rated Speed(r/min) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 2000 | 3000 |
| Rated current(A) | 1.5 | 2.8 | 3.5 | 2.6 | 4.2 | 4.5 | 3 | 3 | 4 |
| V/Krpm | 28 | 28 | 28 | 21.05 | 22.77 | 29.27 | 51 | 67 | 60 |
| Ω/phase | 11.6 | 5.83 | 3.49 | 1.858 | 0.901 | 1.081 | 3.2 | 4.06 | 2.69 |
| mH/phase | 22 | 12.23 | 8.47 | 11.956 | 6.552 | 8.29 | 7 | 9.7 | 6.21 |
| LA(mm) | 106 | 131 | 154 | 135 | 160 | 181 | 152 | 175 | 185 |
| Frame size | 110ST-L02030A | 110ST-L04030A | 110ST-L05030A | 110ST-L06020A | 110ST-L06030A | 130ST-L04025A | 130ST-L05025A | 130ST-L06025A | 130-7720 |
| Rated Voltage(3 phase) | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
| Rated Power(kw) | 0.6 | 1.2 | 1.5 | 1.2 | 1.6 | 1 | 1.3 | 1.5 | 1.6 |
| Rated Torque(N.m) | 2.00 | 4 | 5 | 6 | 6 | 4 | 5 | 6 | 7.7 |
| Max Torque(N.m) | 6 | 12 | 15 | 18 | 18 | 13 | 15 | 18 | 23.1 |
| Rated Speed(r/min) | 3000 | 3000 | 3000 | 2000 | 3000 | 2500 | 2500 | 2500 | 2000 |
| Rated current(A) | 4 | 5 | 6 | 6 | 8 | 4 | 5 | 6 | 6 |
| V/Krpm | 23.59 | 33.74 | 33.84 | 41.39 | 30.54 | 37.72 | 38.67 | 37.34 | 47.59 |
| Ω/phase | 0.982 | 0.779 | 0.567 | 0.64 | 0.338 | 1.108 | 0.867 | 0.605 | 0.66 |
| mH/phase | 2.98 | 3.026 | 2.316 | 2.764 | 1.515 | 3.76 | 3.124 | 2.317 | 2.83 |
| LA(mm) | 158 | 189 | 204 | 217 | 217 | 165 | 173 | 183 | 197 |
| Frame size | 130ST-L07720A | 130ST-L07725A | 130ST-L07730A | 130ST-L10015A | 130ST-L10025A | 130ST-L15015A | 130ST-L15025A | | |
| Rated Voltage(3 phase) | 220V | 220V | 220V | 220V | 220V | 220V | 220V | | |
| Rated Power(kw) | 1.6 | 2 | 2.4 | 1.5 | 2.6 | 2.3 | 3.8 | | |
| Rated Torque(N.m) | 7.70 | 7.7 | 7.7 | 10 | 10 | 15 | 15 | | |
| Max Torque(N.m) | 23.1 | 23.1 | 23.1 | 30 | 30 | 45 | 45 | | |
| Rated Speed(r/min) | 2000.00 | 2500 | 3000 | 1500 | 2500 | 1500 | 2500 | | |
| Rated current(A) | 6 | 7.5 | 9 | 6 | 10 | 9.5 | 17 | | |
| V/Krpm | 47.59 | 40.03 | 32.22 | 64.89 | 38.76 | 68.13 | 34.07 | | |
| Ω/phase | 0.66 | 0.454 | 0.282 | 0.801 | 0.262 | 0.458 | 0.102 | | |
| mH/phase | 2.83 | 1.913 | 1.232 | 3.675 | 1.258 | 2.369 | 0.598 | | |
| LA(mm) | 197 | 197 | 197 | 218 | 218 | 263 | 263 | | |
| Terms of Price: FOB Ningbo |
| Encoder brand: Tama-Gawa, 2500P8 |
| With Brake, please contact me to ask price |
| Minimum quantity: 1pc, for more than 50pcs give 5% discount |
Motor with drives pics:
Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.
Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.
We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
Fenghua City Hongma Motor Co., Ltd.
Address: No. 4 Changhe North Road., Fangqiao, Fenghua, Ningbo, Zhejiang, China
Company Tel: +86 574 88650088
Sales Tel: +86-574-55339278
Fax: +86 574 88650988
Mob: +86 136 8583 1788
Website: HTTP: //www. Hongmamotor. Net
