| Prod Model: |
LK05ST10201 |
| Lead Time: |
2-6 Working Days |
| Wiring Devices: |
Wiring Devices |
| Port: |
Dual Port |
| Material: |
ABS |
| Certification: |
ISO: 9001 |
| Color: |
White |
| Customized: |
Customized |
| Condition: |
New |
Product Description

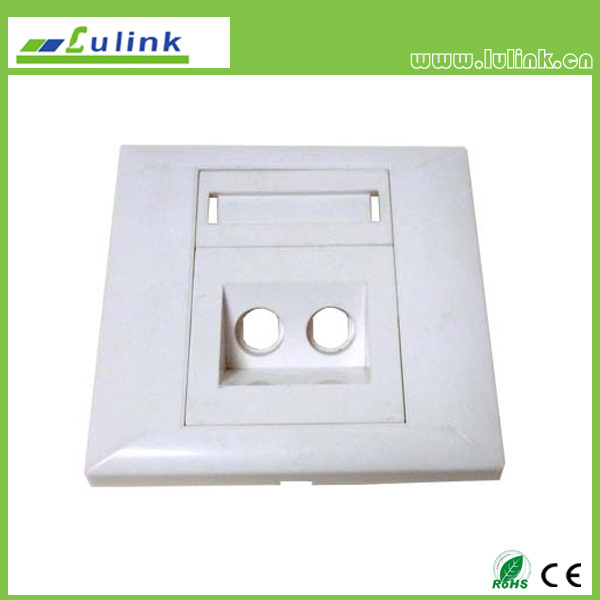

Fiber Faceplate
Specification:
1. ST Type, 2 ports
2. Material: ABS
3. SIZE: 86*86
Product type
1. The structure of fiber optic faceplates conform international 86 type
2. Suitable for the installation multi-type coupler ST, SC, FC, LC simplex and duplex
3. The Installation can be used in the cable system
4. Embedded surface structure, easy to install;
Characteristic
1. Fiber panel is the terminal products which mainly achieve the solution from fiber to desk
2. The design of interior space is reasonable
3 And use in home or work area,achieve the access of dual-core optical fiber and ports output
4 fully meet the requirements of the fiber optic bend radius, and protect optical fiber in or out
5 to provide security protection for the core, radius of curvature is Appropriate, a small amount of redundant is allowed, then achieve FTTD system application
Product Features
1. Use in home or work area (FTTD) fiber optic connector
2. Connector type: FC, SC, ST, with a commonly used model adapter.
3 using the high quality PC (flame-retardant polycarbonate) material, can protect against fire
4. with dust-proof device, to prevent dust from entering.
5. with the identification strips, easy ID management and maintenance use.
6. Has a high efficiency of the transmission Interstage coupling loss, clear true picture, zero thickness,
7. Optical fiber panel box as low light level image intensifier optical input, output window
Application area
1 Telecommunications network, LAN networks, optical fiber communication systems
2 Fiber optic test equipment / instrumentation
3. Fiber CATV, fiber optic sensors
4. Four fiber-optic broadband access networks, FTTH fiber to the home
5. Fiber patch panel, rack and wall mount fiber optic wiring unit
Technical data
1.insert loss:≤0.3dB (PC) ≤0.2dB(UPC)<0.2dB(APC) ≤0.3dB(Multimode)
2.return loss:≥40dB(PC)≥50dB(UPC)≥60dB(APC) ≥35dB(Multimode)
3. Interchangeability:≤0.2dB
4.termperature(ºC):-40 to 80
5.install temperature(ºC):-40 to 85
6. Fiber OD: 125μm (652 & 657)
7. Tight cladding diameter: 125μm & 900μm
8. Suitable mode: single mode & multimode
9. Tensile strength >50N
10. Adapter: SC & FC
11. Output connector: 2
