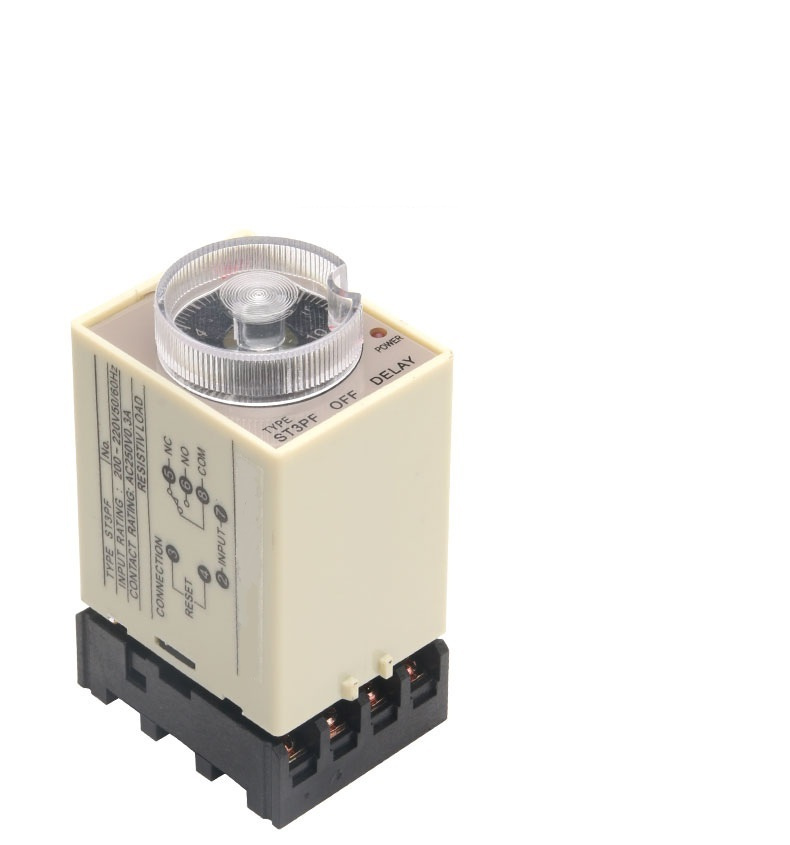

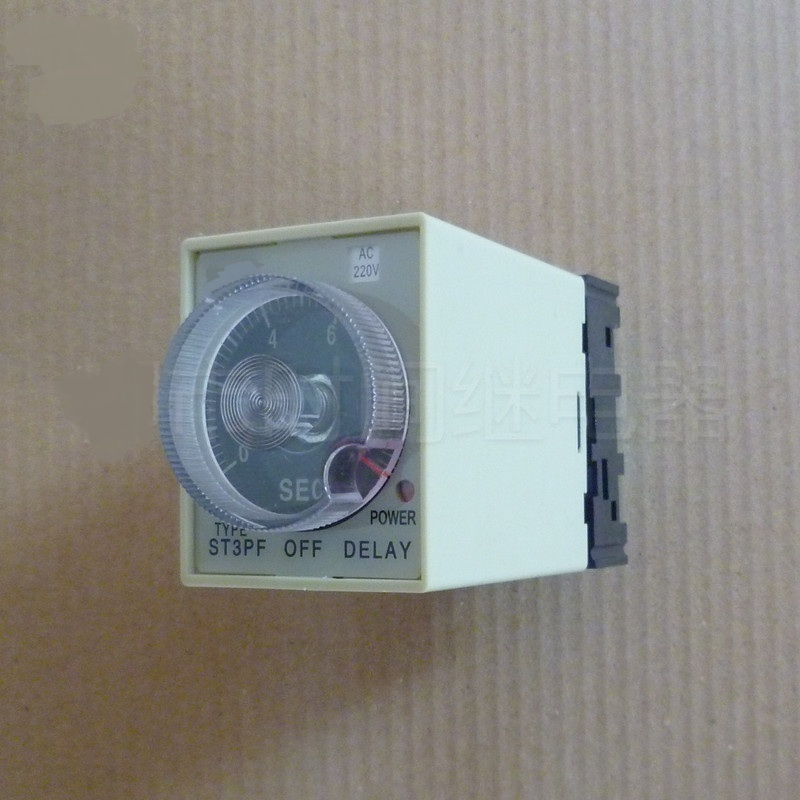

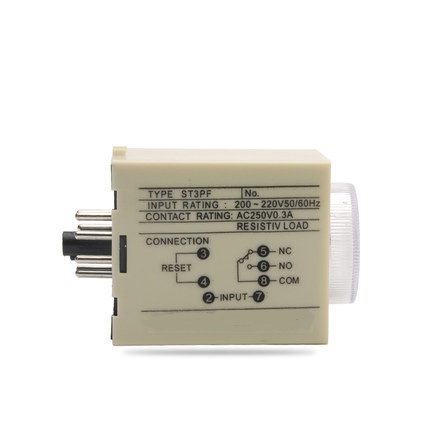

St3PFA Low Power Type Miniature Auto Multi Range Time Delay Relay

Name: St3PFA Low Power Type Miniature Auto Multi Range Time Delay Relay
Brand: all-electronics-online.com
SKU: 731402502
Availability: InStock
Rating: 4.3 (52 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST3PFA

Product Description

ST3PA Description:

- Using CMOS IC lower power consumption high reliability and stability
- 7(A, B, C, D, E, F, G)timing series available(Each timing series the product is individually customized)
- Power Supply
Universal voltage : AC/DC(AC12 - 240V/DC12 - 240V), reduces the number of timer models kept in stock.
Non universal voltage: AC(V) 12 ,24, 110, 220 ,240, 380 50/60Hz , DC(V) 12, 24
- Output Contacts rated 5A at 120/240 VAC and 30 VDC,resistive load.
- Socket mounted with a PF083A/PS-08 Socket .
- On-Delay version
- Two delayed contact (DPDT Relay) Output
- Large and easy to read dial shows decimal points
- Two Leds provide status indication for ON-OFF operations

ST3PC Description:

- Using CMOS IC lower power consumption high reliability and stability.
- 7(A, B, C, D, E, F, G)timing series available(Each timing series the product is individually customized).
- Power Supply
Non universal voltage: AC(V) 12 ,24, 110, 220 ,240, 380 50/60Hz , DC(V) 12, 24 .
- Output Contacts rated 5A at 120/240 VAC and 30 VDC,resistive load.
- Socket mounted with a PF083A/PS-08 Socket .
- On-Delay version
- One delayed contact (SPDT Relay) + One instantaneous contact (SPDT Relay) Output.
- Large and easy to read dial shows decimal points.
- Two Leds provide status indication for ON-OFF operations.

Technical data:

Dimensions	55H×40.5W×57.5D
Mounting & Socket	Surface(-N) PF083A(E) Flush(-Y) US-08 P3G-08
Full timing range	A:0.05-0.5s/5s/30s/3min B:0.1-1s/10s/60s/6min C:0.5-5s/50s/5min/30min D:1-10s/100s/10min/60min E:0.05-1min/10min/60min/6h F:0.25-2min/20min/2h/12h G:0.5-4min/40min/4h/24h
Rated voltage	DC(V):12 24 AC(V):110 220 24 to 240 VAC/DC
Indicator operating	ON-UP Operating
Contact O/P	ST3PA:Time limit 2C 5A Resistive load. ST3PC:Time limit 1C; Instantaneous 1C 5A resistive load.
Life	Mechanical 5×10⁷times Electrical 1×10⁵times
Accuracy	Repeat error ±1%max Setting error ±10%max Voltage error ±1%max Temp.error ±2%max
Reset time	0.5sec max
Insulation resistance	100MΩ(DC 500V)min
Dielectric strength	1500VAC
Consrmed power	2VA
Ambient temperature	-10ºC~+55ºC
Ambient humidity	35~85%RH
Weight	100g
