| Prod Model: |
Gel Battery |
| Positive: |
Lead Dioxide |
| OEM: |
Yes |
| Component: |
Row Materials |
| Maintenance Type: |
Free |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Discharge Rate: |
Ultrahigh Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Nominal Voltage: |
2V, 6V, 12VDC |
Product Description

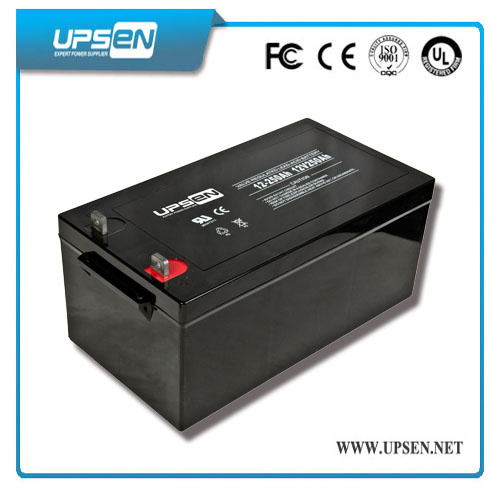

Stable Quality 12 V 200 AH GEL Free Maintenance Battery
Our Advantages
<1>Fast Delivery time
<2>Flexible MOQ
<3>Good Warranty
<4>24H online service
<5>Professional Solution
Key Features
1:High Reliability and Quality
2:Stable quality&high reliability
3:Excellent Recovery from Deep Discharge
4:ABS Engineering plastics shell: anti-aging
5:High cycle life for service battery applications
6:Safety valve installation for explosion proof
7:Flexibility design for multiple install positions
8:Long life, large capacity and good shock resistance
9:Unique formula, exception deep discharge recovery performance
10:Using high purity raw materials ensures batteries have less self-discharge
11:quality check with auto machine,can test inner problem , to ensure all goods quality
12:Excellent large current discharge performance, and have obvious advantages in startup and climbing
13:Safe and reliable venting system: Safe venting system can eliminate the danger of explosion under large pressure
Applications
1:Solar/Wind Power System
2:Data processing systems
3:Solar system and wind system
4:Emergency lighting and car/ship starting system
5:Portable electric appliances and mining system
6:Telephone and telecommunication equipment
7:Golf Car, wheelchair, electric bike, electric car etc.
Technical Specification
| Model | Nominal | Capacity | External Dimension | Weight | Terminal |
| Voltage | (Ah) | Length | Width | Height | Total Height | Approx | Type |
| (V) | 10Hr(20hr) | mm | inch | mm | inch | mm | inch | mm | inch | kg | pound | |
| GL12310 | 12 | 31 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.69 | 11 | 24.31 | T64/T16 |
| GL12400 | 12 | 40 | 196 | 7.73 | 166 | 6.54 | 171 | 6.73 | 171 | 6.73 | 14 | 30.94 | T9/T16 |
| GL12500 | 12 | 50 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 232 | 9.13 | 17.5 | 38.55 | T9/T16 |
| GL12650 | 12 | 65 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | 23 | 50.8 | T9/T16 |
| GL12700 | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.01 | 24 | 53 | T33B/T16 |
| GL12800 | 12 | 80 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.02 | 26 | 57.4 | T33B/T16 |
| GL12850 | 12 | 85 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.21 | 29 | 64.1 | T10B/T16 |
| GL12950 | 12 | 95 | 394 | 15.51 | 109 | 4.29 | 285 | 11.22 | 285 | 11.2 | 34 | 74.96 | T46 |
| GL12950(II) | 12 | 95 | 508 | 20 | 110 | 4.33 | 224 | 8.82 | 239 | 9.41 | 33 | 72.75 | T46 |
| GL121000 | 12 | 100 | 331 | 13 | 173 | 6.81 | 213 | 8.39 | 235 | 9.25 | 32 | 71 | T10,T16 |
| GL121000(II) | 12 | 100 | 330 | 12.99 | 173 | 6.81 | 214 | 8.43 | 219 | 8.62 | 32 | 70.4 | T16 |
| GL121200 | 12 | 120 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | 39.5 | 87.3 | T11D/T16 |
| GL121340 | 12 | 134 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 283 | 11.1 | 42.5 | 93.7 | T19 |
| GL121350 | 12 | 135 | 484 | 19.06 | 177 | 6.97 | 241 | 9.49 | 241 | 9.49 | 46 | 101.4 | T12/T50 |
| GL121500 | 12 | 150 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | 49 | 108 | T12/T50 |
| GL121500(II) | 12 | 150 | 551 | 21.69 | 109 | 4.29 | 228 | 8.98 | 228 | 8.98 | 51 | 112.4 | T46 |
| GL121550 | 12 | 155 | 547 | 21.54 | 125 | 4.92 | 317 | 12.48 | 317 | 12.5 | 56 | 123.5 | T46 |
| GL121600 | 12 | 160 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.33 | 53 | 117 | T11/T60 |
| GL121800 | 12 | 180 | 530 | 20.8 | 209 | 8.23 | 216 | 8.5 | 237 | 9.33 | 57 | 126 | T11/T60 |
| GL122000 | 12 | 200 | 522 | 20.6 | 240 | 9.45 | 220 | 8.66 | 244 | 9.6 | 67 | 148 | T11/T19 |
| GL122300 | 12 | 230 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 240 | 9.44 | 76 | 168 | T12/T19 |
| GL122500 | 12 | 250 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 241 | 9.29 | 79 | 175 | T12/T19 |
| GL61800 | 6 | 180 | 260 | 10.2 | 180 | 7.09 | 246 | 9.69 | 251 | 9.89 | 30 | 66.1 | T19 |
| GL62000 | 6 | 200 | 323 | 12.7 | 178 | 7.01 | 224 | 8.81 | 248 | 9.77 | 31 | 38.3 | T19 |
| GL62200 | 6 | 220 | 243 | 9.57 | 188 | 7.41 | 275 | 10.83 | 275 | 10.8 | 34.5 | 75.9 | T19 |
| GL2500 | 2 | 50 | 160 | 6.3 | 50 | 1.97 | 166 | 6.54 | 176 | 6.93 | 3.2 | 7.1 | T16 |
| GL21000 | 2 | 100 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 227 | 8.94 | 6.4 | 14.11 | T16 |
| GL21500 | 2 | 150 | 172 | 6.8 | 102 | 4.02 | 206 | 8.11 | 227 | 8.92 | 9 | 19.8 | T94 |
| GL22000 | 2 | 200 | 172 | 6.8 | 111 | 4.37 | 329 | 12.96 | 365 | 14.4 | 14 | 30.9 | T20 |
| GL23000 | 2 | 300 | 171 | 6.7 | 151 | 5.94 | 330 | 13 | 365 | 14.4 | 20.5 | 45.2 | T20 |
| GL24000 | 2 | 400 | 211 | 8.3 | 176 | 6.93 | 330 | 13 | 366 | 14.4 | 27.5 | 60.6 | T20 |
| GL25000 | 2 | 500 | 242 | 9.5 | 172 | 6.8 | 331 | 13 | 356 | 14 | 33.5 | 73.9 | T20 |
| GL26000 | 2 | 600 | 301 | 11.9 | 175 | 6.89 | 331 | 13 | 356 | 14 | 41 | 90.4 | T20 |
| GL28000 | 2 | 800 | 411 | 16.1 | 175 | 6.89 | 330 | 13 | 356 | 14 | 55 | 121.3 | T20 |
| GL210000 | 2 | 1000 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14 | 66.5 | 146.6 | T20 |
| GL215000 | 2 | 1500 | 401 | 15.8 | 351 | 13.8 | 344 | 13.5 | 369 | 14.5 | 103.5 | 228.2 | T20 |
| GL220000 | 2 | 2000 | 491 | 19.3 | 351 | 13.8 | 344 | 13.5 | 369 | 14.5 | 136 | 299.8 | T20 |
| GL230000 | 2 | 3000 | 712 | 28 | 353 | 13.9 | 343 | 13.5 | 369 | 14.5 | 203.5 | 448.6 | T20 |
*Specification are subject to change without prior notice
|
