Stable Stainless Steel Spoke Sensor Weighing Load Cells for Truck Scales
| Price: |
US $ 1-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
FSTB |
| Capacity: |
2,3,5,10,20t |
| Material: |
Alloy Steel |
Product Description

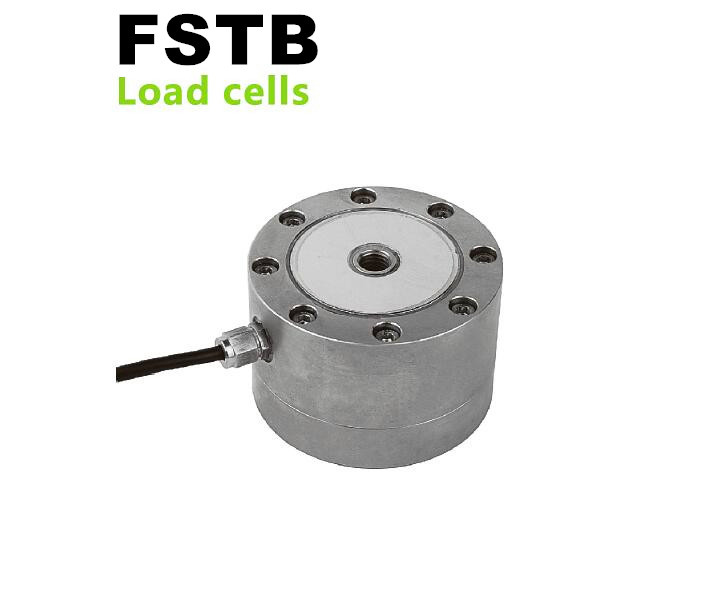

Stable Stainless Steel Spoke Sensor Weighing Load Cells for Truck Scales
1. This sensor uses spoke elastomer structure and shear stress theory, with a low profile, anti-bias load, high accuracy and good intensity.
2. It is ued for testing a variety of load forces, widely used in different kinds of scales, cement batching warehouse, dry mixer, testing machine, and industrial automtion measurement and control systems.
3. With wide range capacity from 2t to 20t
4. High-quality alloy steel material, simple structure, easy to install and maintenance
5. Protection grate: IP67 | Item | Unit | Parameter |
| Accuracy class to OIML R60 | | D1 | 0.1 |
| Maximum capacity(Emax) | t | 2, 3, 5 | 10,20 |
| Minimum LC verification interval (Vmin) | % of Emax | 0.0200 | 0.0350 |
| Sensistivity (Cn) / Zero balance | mV/V | 2.0±0.005 / 0±0.02 |
| Temp. effect on zero balance (TK0) | % of Cn/10K | ±0.02 | ±0.0252 |
| Temp. effect on sensitivity (TKc) | % of Cn/10K | ±0.02 | ±0.0252 |
| Hysteresis error (dhy) | % of Cn | ±0.0500 | ±0.1000 |
| Non-linearity (dlin) | % of Cn | ±0.0500 | ±0.1000 |
| Creep (dcr)over 30 min | % of Cn | ±0.0300 | ±0.0490 |
| Input (RLC) &Output resistance (R0) | Ω | 750 ± 10 & 703 ± 2 |
| Nominal range of excitation voltage (Bu) | V | 5~12 |
| Insulation resistance (Ris) at 50Vdc | MΩ | >5000 |
| Service Temp. range (Btu) | ºC | -30...+70 |
| Safe load limit (EL) &Breaking load (Ed) | % of Emax | 150 & 200 |
| Protection class according to EN 60 529 | | IP67 |
Material: Measuring element
Cable fitting
Cable sheath | | Alloy steel
stainless steel
PVC |

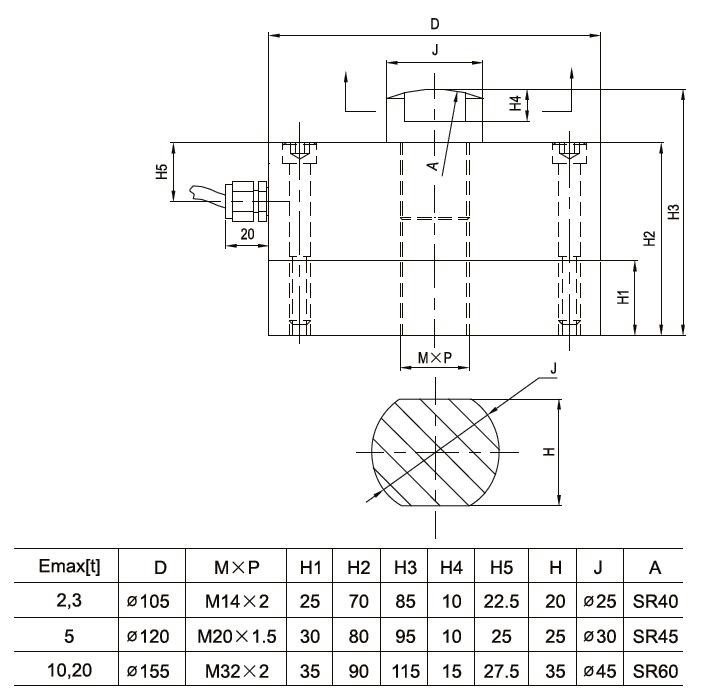

| Maximum capacity (Emax) | t | 2, 3 | 5 | 10, 20 |
| Deflection at Emax (snom), approx | mm | <0.3 | <0.4 | <0.5 |
| Weight (G), approx | kg | 3.8 | 5.3 | 9.3 |
| Cable: Diameter :ø6mm, Length | m | 5 | 5 | 12 |
Varieties of products related to load cells as below, that meet all your needs, and save your time, welcome to browse our website to get more surprises.

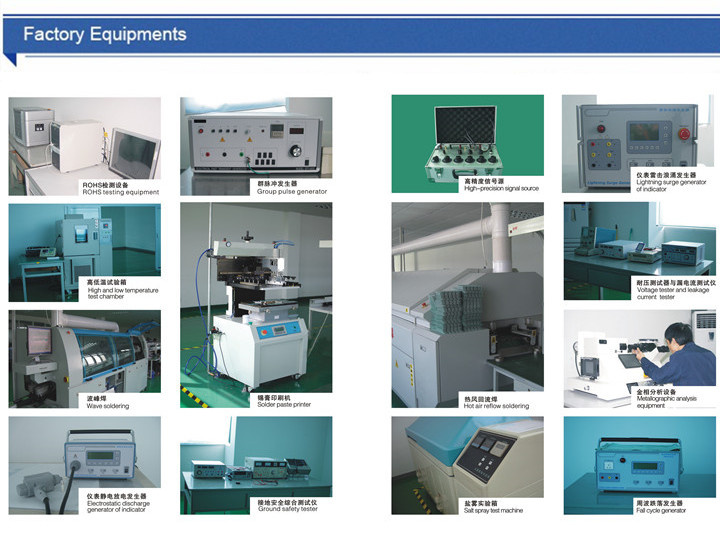

So many kinds of test equipments are used for pre-shipment inspection, in order to make sure all performance of our products reach theoptimal standard.
DHL, UPS, EMS, TNT ect Express and by air or by sea, any shipping method is available, and we willaccount price andhaulage time of each way for your selection before placing order.
CE, RoHs, ISO9001, OIML etc certificates, ensure products with high-class quality for all customers.
