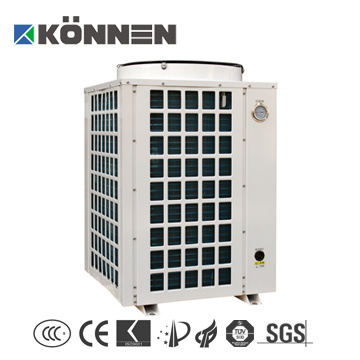

Stable Temperature Swimming Pool Heat Pump (KFCRS-10.5II)

Name: Stable Temperature Swimming Pool Heat Pump (KFCRS-10.5II)
Brand: all-electronics-online.com
SKU: 689386042
Availability: InStock
Rating: 4.9 (104 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR
Min Order:	5/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Capacity (Kw):	13
Rated Outlet Hot Water Quantity(L/H):	860
Rated Outlet Hot Water Temperature:	28 Degree
Maximum Outlet Hot Water Temperature:	35 Degree
Certification:	CE
Control Type:	Digital
Display Type:	LCD
Material:	Stainless Steel
Usage:	Hot Water

Product Description

CE approved
Long time of warranty
Machine casing: spray coating metal plate
Function: Production of hot water
Host machine color: grey and white
Accessories: LCD controller, pressurized water tank(150L, 200L, 300L, 500L)
Safety protecting system:
1)High and low pressure protection
2)Anti-freeze protection
3)High temperature protection
4)Safety valve
5)Overload protection
6)Reverse phase
7)Lack of phase
8)Separation of water and electricity
Refrigerant: R22/R410A/R417a

Product:Swimming Pool Heat Pump
model		CKFCRS-8.0I	CKFCRS-13II	CKFCRS-20II	CKFCRS-40II	CKFCRS-80II	CKFCRS-120II
Rated Heating capacity (KW)		8	13	20	40	80	120
Rated producte hot water capacity(L/H)		529	860	1323	2645	5291	7937
Outlet water rated temp		28
Outlet water max temp		35
electricity parameter	Rated power (KW)	1.62	2.57	3.9	7.8	15	23.5
	Current (A)	8	4.2	7.1	14.7	31.6	47.6
	Rated voltage (V)	220V	380~3N	380~3N	380~3N	380~3N	380~3N
	Rated frequency (HZ)	50HZ
	Max power (KW)	2.15	3.1	5.1	11.9	22.9	31.5
	Max current (A)	9.7	7.1	9.6	19.7	47.2	59.5
Refrigerant		R410a
Pipe size (mm)		2* DN32	2* DN32	2* DN50	2* DN50	2* DN65	2* DN90
Circulation Water Flow (M3/h)		2.2	3.7	5.7	11.4	22.8	34.4
Dimensions (mm)		695655640	695655740	706686940	14408001400	2060×1100×2140
Weight (KG)		67	102	166	263	943	985
Noise (Db)		53Db	58Db		65Db	68Db	70Db
Heat exchange		Titanium tube heat exchanger
Expansion valve		Emerson thermal expansion valve

Zhejiang Cen New Energy Technology Co., Ltd. Our company is still developing more styles of products. We take the technology as the core\regard the quality as life\treat the user as god. We dedicated to provide you with the highest cost-effective energy-saving products\high-quality engineering design and meticulous transformation of after-sales service!

Our main products as follows:
Air-source heat pump unit for household and commercial
Ground source heat pump unit
Water source heat pump unit
Combine cooling\heating and hot water heat pump unit
Swimming pool heat pump unit
Heat recovery of centre air-conditioner so on energy-saving products, our products passed prove ISO9001\CCC\CE certificate.
Product features: Reasonable structure\stable quality\reliable and nice.

We consistently insist on the sane business strategy. We don't demand the biggest, only best. Take the most serious attitude, do the most professional thing. Let us enhance friendship with large clients and sincere cooperation, create brilliance!
