| Prod Model: |
EP2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Current: |
25A |
| Display: |
LED/LCD |
| Size: |
Size: 500*260*455mm |
| Protection: |
Overload Shor Circuit Protection |
| Function: |
Cold Start |
| Max Charge Current: |
25A |
| Max Bypass Current: |
10AMP |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Application: |
Air Conditioner |
Product Description

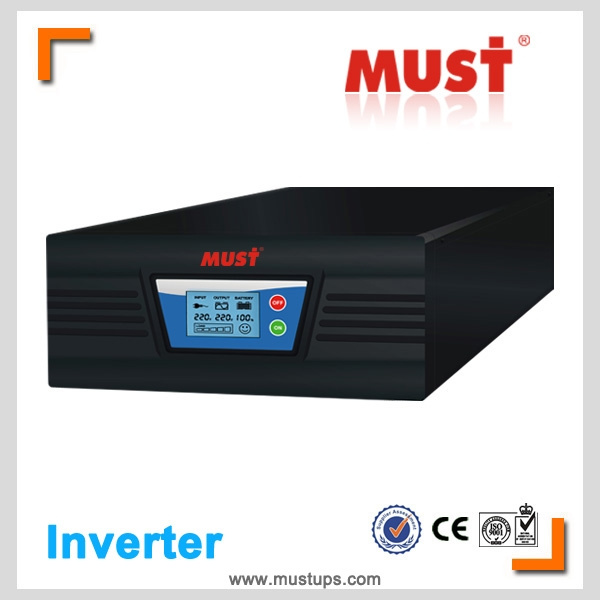

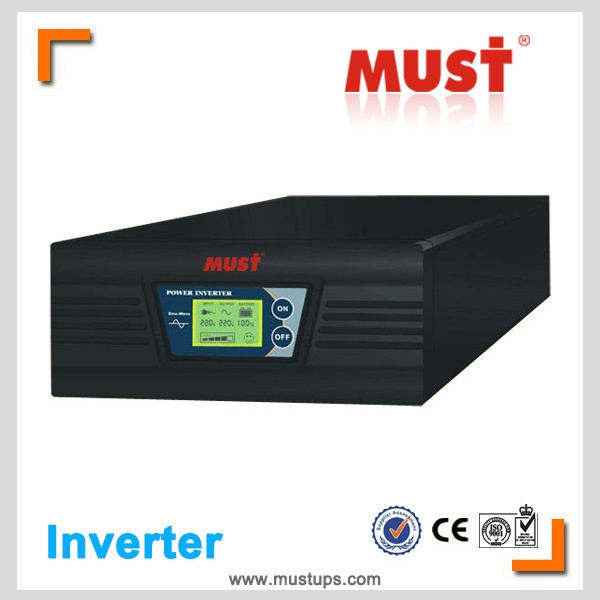

Stackable and tower type pure sine wave power inverter for home use
Model:EP2000 0.3-1KW
Features
Pure sine-wave output;
25A battery charge current;
Superior performance from CPU control technology;
Fast Action AC Synchronized Transfer Switch
Wide range of input voltage, accurate output, AVR function;
Inner-Equipped protection for over-load, short-circuit, over-voltage, low-voltage, over- heating, etc.
Easy to check with inverter condition with concise LCD indication.
Generator compatibly and external battery connection achievable.
Intelligent battery management with protection against over-charged and over-discharged etc.
Special charging system design for better protection of battery life.
Compatible with generators and suitable for harsh environment where power voltage is extremely unstable.
With standard on-line structure (three ports) and can be used as UPS.
Specifications
MODEL | PT600 | PT1000 | PT1200 | PT1500 | PT2000 | PT3000 | PT3600 | PT4000 | PT5000 |
| Rated capaclty(W) | 600W | 1000W | 1200W | 1500W | 2000W | 3000W | 3600W | 4000W | 5000W |
| INPUT |
| Phase | Single |
| Voltage | 100/110/120/127/220/230VAC(+25%,-35%) | 100/110/120/127/220/230VAC±20% |
| Frequency Range | 60/50±10%(auto sensing) |
| OUTPUT |
| Phase | Single |
| Voltage (Batt Mode) | 100/110/120/127/220/230VAC/240VAC |
| Frequency Range(Batt Mode) | 60/50±0.2Hz |
| Transfer Time | Typical 2-6ms ,10ms max |
| waveform | Pure Sine Wave |
| BATTERY |
| Recharge Current(S) | 25Amax |
| Nominal DC input voltage | 12VDC | 12/24VDC | 24VDC | 24VDC | 24/48VDCVDC | 48VDC | 48VDC | 96VDC |
| INDICATORS |
| LCD/LED | Optional |
| PROTECTION |
| Overload | IPS automatically shutdown if overload exceeds 120% ofnormal value for 30 seconds
IPS automatically resume work if overload comes back to rated load |
| Short circuit | Cut off immediately |
| ALARM |
| Battery back-up | Sounding every 4 second |
| Low Battery | Sounding every second |
| Overload | Audible alarm |
| Fault | Continuously sounding |
| OPERATING ENVIRONMENT |
| Humidity | 0-90%RH @-5-55°C(non-condenslng) |
| Noise Level | Less than 60dB |
| Appearance |
| External Size(mm)L*W*H | 375*130*190 | 452*192*338 | 500*260*455 |
| Carton Size(mm)L*W*H | 478*463*315(2 Piece) | 584*335*495(1 Piece) | 545*345*535(1 Piece) |
| Unit weight(kg/pc) | 10 | 13.2 | 17 | 24.2 | 27.4 | 29.5 | 33 | 33 | 35/52 |
| Gross weight(kg/ctn) | 22.6 | 29 | 19.7 | 26.9 | 30.1 | 33.2 | 35.7 | 35.7 |
Payment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Delivery time: 7 workdays for sample; 20-25 workdays for mass order
3. Shipping: DHL, FEDEX, UPS, EMS, Airway and By Sea
**Welcome Sample Order to test quality firstly**
Warranty :
Our product warranty is valid for 12 months after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship ,but specially expecting any defects resulting from normal wear and tear of improper use of the products.
